Can the MRF OTC plastic pneumatic throttling valve, for actuator, COMPACT "O" series be mounted directly on different actuator ports (M5, 1/8", 1/4", 3/8", 1/2") without additional adapters?

Yes. The MRF OTC plastic pneumatic throttling valve, for actuator, COMPACT "O" series is designed for direct mounting in actuator connections and is offered in the common port sizes M5, 1/8", 1/4", 3/8" and 1/2". Given this design and the listed sizes, each valve variant matches the corresponding actuator port and can be mounted directly without additional adapters. Ensure you select the valve size that matches the actuator port, respect the working pressure (up to 10 bar) and temperature range (â10Â°C to +50Â°C), and use the provided plug connection for hose attachment; a screwdriver-adjustable trim and optional protective cover are available for installation and adjustment.

Is the MRF OTC plastic pneumatic throttling valve, for actuator, COMPACT "O" series compatible with direct mounting on various actuator ports (M5, 1/8", 1/4", 3/8", 1/2")?

Yes. The MRF OTC plastic pneumatic throttling valve, for actuator, COMPACT "O" series is designed for direct mounting in actuator connections and is available in sizes M5, 1/8", 1/4", 3/8" and 1/2", so it is compatible with direct mounting on actuators with those ports. It supports up to 10 bar, operates from -10Â°C to +50Â°C, has a plug connection for easy hose disassembly, screwdriver adjustment and optional protective cover.

Does the MRF OTC plastic pneumatic throttling valve, for actuator, COMPACT "O" series require tools for mounting on actuator ports?

No. the MRF OTC plastic pneumatic throttling valve, for actuator, COMPACT "O" series does not require tools for mounting on actuator ports. It is designed for direct mounting in actuator connections and features a plug connection for easy disassembly of pneumatic hoses. The flow adjustment is made with a screwdriver (for fine tuning) and a protective cover can be fitted, but the actual mounting to the actuator ports is tool-free.

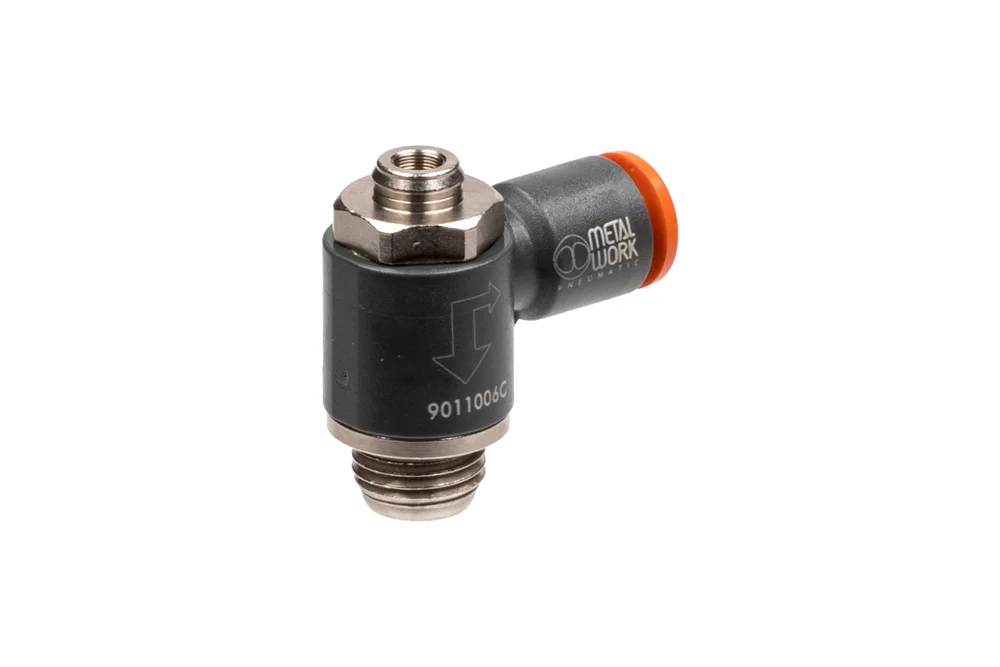

MRF OTC plastic pneumatic throttling valve, for actuator, COMPACT “O” series

All products, Pneumatic valves/

Additional information

Material	P – material (plastic)

Throttle-return valve type MRF OTC series COMPACT “O” for direct mounting in actuator connections, used in pneumatic systems for regulating the flow rate of compressed air and the direction of flow. Equipped with a plug connection for easy disassembly of pneumatic hoses. Adjustment change using a screwdriver, with the possibility of mounting a protective cover. Size: M5, 1/8″, 1/4″, 3/8″, 1/2″. Working pressure: up to 10 bar. Operating temperature: from -10°C to +50°C. Material: plastic.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-9011001C	Throttle check valve for MRF OTC actuator, 4 mm hose, GZ M5	-	10	In stock	Enquiry
MW-9011003C	Throttle check valve for MRF OTC actuator, 6 mm hose, GZ BSP 1/8"	-	10	In stock	Enquiry
MW-9011004C	Throttle check valve for MRF OTC actuator, 6 mm hose, GZ BSP 1/4"	-	10	In stock	Enquiry
MW-9011005C	Throttle check valve for MRF OTC actuator, 8 mm hose, GZ BSP 1/8"	-	10	In stock	Enquiry
MW-9011006C	Throttle check valve for MRF OTC actuator, 8 mm hose, GZ BSP 1/4"	-	10	In stock	Enquiry
MW-9011007C	Throttle check valve for MRF OTC actuator, 6 mm hose, GZ M5	-	10	In stock	Enquiry
MW-9011008C	Throttle check valve for MRF OTC actuator, 10 mm hose, GZ BSP 1/4"	-	10	In stock	Enquiry
MW-9011011C	Throttle check valve for MRF OTC actuator, 4 mm hose, GZ BSP 1/8"	-	10	In stock	Enquiry
MW-9011016C	Throttle check valve for MRF OTC actuator, 12 mm hose, GZ BSP 1/2"	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Throttle-return valve type MRF OTC series COMPACT “O” for direct mounting in actuator connections, used in pneumatic systems for regulating the flow rate of compressed air and the direction of flow. Equipped with a plug connection for easy disassembly of pneumatic hoses. Adjustment change using a screwdriver, with the possibility of mounting a protective cover. Size: M5, 1/8″, 1/4″, 3/8″, 1/2″. Working pressure: up to 10 bar. Operating temperature: from -10°C to +50°C. Material: plastic.
