Can the OMV MRF brass pneumatic throttling and check valve, for diverter valve, COMPACT "O" series handle up to 10 bar and operate between -10Â°C and +70Â°C?

Yes. The OMV MRF brass pneumatic throttling and check valve, for diverter valve, COMPACT "O" series is rated for working pressure up to 10 bar and an operating temperature range from -10Â°C to +70Â°C. Its construction (nickel-plated brass) and listed sizes (M5, 1/8â³, 1/4â³, 3/8â³, 1/2â³) match those specifications.

Is the OMV MRF brass pneumatic throttling and check valve, for diverter valve, COMPACT "O" series available in push-in fittings sizes M5 to 1/2"?

Yes. The OMV MRF brass pneumatic throttling and check valve, for diverter valve, COMPACT "O" series is available in push-in fitting sizes M5, 1/8", 1/4", 3/8" and 1/2" as specified.

Does the OMV MRF brass pneumatic throttling and check valve, for diverter valve, COMPACT "O" series include a removable protective cover option?

Yes. The OMV MRF brass pneumatic throttling and check valve, for diverter valve, COMPACT "O" series includes the possibility of mounting a removable protective cover for the adjustment (screwdriver) areaâi.e., a protective cover option is available.

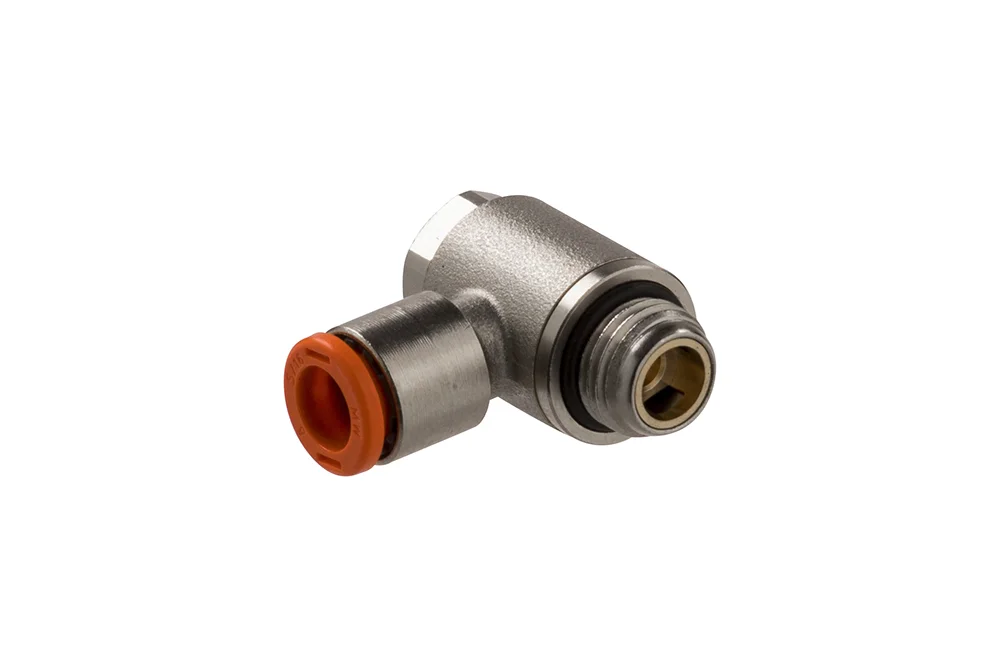

Valve throttle check pneumatic brass MRF OMV, for valve directional, series COMPACT “O”

All products, Pneumatic valves/

Additional information

Material	B – brass (bronze)

Valve throttle check type MRF OMV series COMPACT “O” for mounting in connections valves directional, used in systems pneumatic for adjustment rate flowing stream compressed air and direction flow. Equipped with a push-in connector ensuring easy disassembly of pneumatic lines. Setting adjustment using a screwdriver, with the possibility of mounting a protective cover. Size: M5, 1/8″, 1/4″, 3/8″, 1/2″. pressure working: up to 10 bar. Operating temperature: from -10°C to +70°C. Material: brass nickel-plated.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-9001101V	Throttle check valve for valve MRF OMV, hose 6 mm, 1/8" BSP male	-	10	In stock	Enquiry
MW-9001103V	Throttle check valve for valve MRF OMV, hose 8 mm, 1/8" BSP male	-	10	In stock	Enquiry
MW-9001104V	Throttle check valve for valve MRF OMV, hose 8 mm, 1/4" BSP male	-	10	In stock	Enquiry
MW-9001110V	Throttle check valve for valve MRF OMV, hose 4 mm, M5 male	-	10	In stock	Enquiry
MW-9001114V	Throttle check valve for valve MRF OMV, hose 10 mm, 3/8" BSP male	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Valve throttle check type MRF OMV series COMPACT “O” for mounting in connections valves directional, used in systems pneumatic for adjustment rate flowing stream compressed air and direction flow. Equipped with a push-in connector ensuring easy disassembly of pneumatic lines. Setting adjustment using a screwdriver, with the possibility of mounting a protective cover. Size: M5, 1/8″, 1/4″, 3/8″, 1/2″. pressure working: up to 10 bar. Operating temperature: from -10°C to +70°C. Material: brass nickel-plated.
