Can the MRF NMV brass pneumatic throttling and check valve, for diverter valve, COMPACT "N" series, be disassembled quickly thanks to its plug-in coupling for hose removal?

Yes. The MRF NMV brass pneumatic throttling and check valve, for diverter valve, COMPACT "N" series can be disassembled quickly thanks to its plug-in coupling for hose removal. The plug-in coupling is specifically designed for easy disconnection of pneumatic hoses, enabling fast maintenance or replacement without tools. The valve also offers simple flow adjustment via a control knob or screwdriver and can be locked with a locking nut for secure settings.

Does the MRF NMV brass pneumatic throttling and check valve, for diverter valve, COMPACT "N" series allow setting lock with a locking nut to prevent accidental adjustment?

Yes. The MRF NMV brass pneumatic throttling and check valve, for diverter valve, COMPACT "N" series allows securing the adjustment: it features adjustment via a control knob and/or screwdriver and includes the possibility of locking the set position with a locking nut to prevent accidental changes.

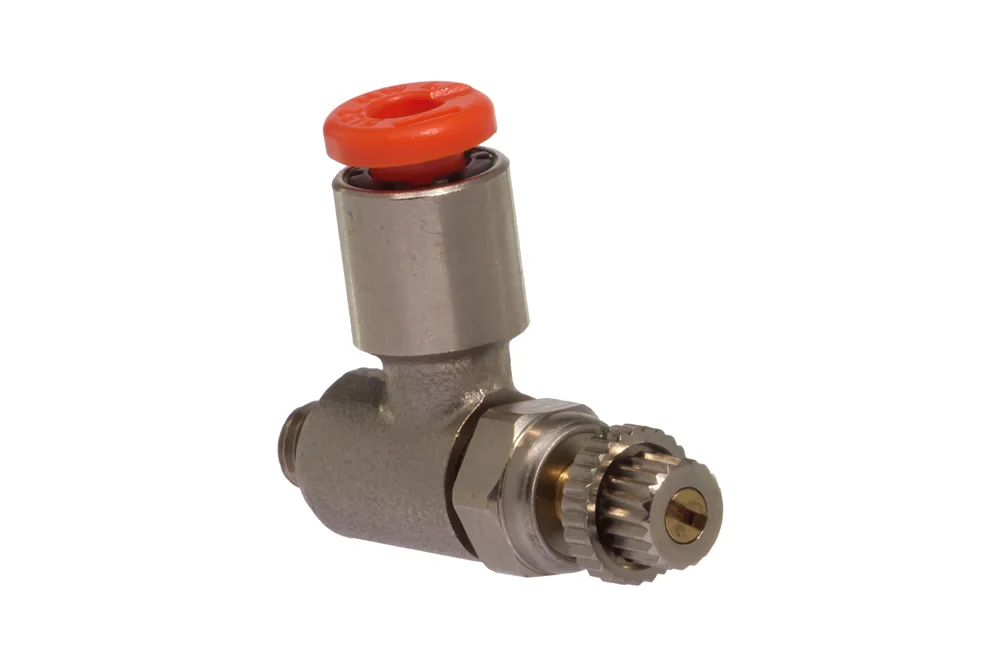

MRF NMV brass pneumatic throttling and check valve, for diverter valve, COMPACT “N” series

All products, Pneumatic valves/

Additional information

Material	B – brass (bronze)

Throttle-reverse valve type MRF NMV series COMPACT “N” for installation in the connections of distribution valves, used in pneumatic systems to regulate the flow rate of compressed air and the direction of flow. Equipped with a plug-in coupling for easy disassembly of pneumatic hoses. Adjustment change via a control knob and/or screwdriver; possibility of securing the setting with a locking nut. Size: M5, 1/8″, 1/4″, 3/8″, 1/2″. Working pressure: up to 10 bar. Operating temperature: from -10°C to +70°C. Material: nickel-plated brass.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-9031101V	Throttle check valve for MRF NMV valve, 4 mm hose, GZ M5	-	10	In stock	Enquiry
MW-9031102V	Throttle check valve for MRF NMV valve, 4 mm hose, GZ BSP 1/8"	-	10	In stock	Enquiry
MW-9031105V	Throttle check valve for MRF NMV valve, 6 mm hose, GZ M5	-	10	In stock	Enquiry
MW-9031106V	Throttle check valve for MRF NMV valve, 6 mm hose, GZ BSP 1/8"	-	10	In stock	Enquiry
MW-9031107V	Throttle check valve for MRF NMV valve, 6 mm hose, GZ BSP 1/4"	-	10	In stock	Enquiry
MW-9031108V	Throttle check valve for MRF NMV valve, 8 mm hose, GZ BSP 1/8"	-	10	In stock	Enquiry
MW-9031109V	Throttle check valve for MRF NMV valve, 8 mm hose, GZ BSP 1/4"	-	10	In stock	Enquiry
MW-9031111V	Throttle check valve for MRF NMV valve, 10 mm hose, GZ BSP 1/4"	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Throttle-reverse valve type MRF NMV series COMPACT “N” for installation in the connections of distribution valves, used in pneumatic systems to regulate the flow rate of compressed air and the direction of flow. Equipped with a plug-in coupling for easy disassembly of pneumatic hoses. Adjustment change via a control knob and/or screwdriver; possibility of securing the setting with a locking nut. Size: M5, 1/8″, 1/4″, 3/8″, 1/2″. Working pressure: up to 10 bar. Operating temperature: from -10°C to +70°C. Material: nickel-plated brass.
