Is the Compact one-piece brass ball valve MINI type 4010 / 4011 suitable for use with potable water and compliant with relevant material regulations?

Yes. The Compact one-piece brass ball valve MINI type 4010 / 4011 is suitable for potable (drinking) water use and compliant with relevant material regulations based on the provided description: body, ball and stem are brass (nickel- and chrome-plated where specified), ball seats are PTFE and stem seals are NBR.materials commonly accepted for contact with potable water. The product is explicitly compliant with RoHS 2011/65/EU and REACH 1907/2006, which restrict hazardous substances in materials and cover regulatory substance disclosure and limits. Operational limits are -10Â°C to +90Â°C (minimum applies to an emptied valve) and media must be free from solid contaminants and compatible with the valve materials. Note: final suitability for a specific potable-water installation may require local/national approvals or certifications beyond RoHS/REACH (e.g., NSF/WRAS/ACS) which are not specified in the description.

Can Compact one-piece brass ball valve MINI type 4010 / 4011 be used for low-temperature applications down to -10Â°C when emptied of freezing liquids?

Yes. The Compact one-piece brass ball valve MINI type 4010 / 4011 can be used for low-temperature applications down to -10Â°C provided it is emptied of freezing liquids. The stated operating temperature range is -10Â°C to +90Â°C; stem seals are NBR (suitable down to around -10Â°C), ball seals are PTFE, and the specified minimum temperature explicitly applies to the valve emptied of freezing liquid. Ensure media are compatible with valve materials and free of solids.

Does Compact one-piece brass ball valve MINI type 4010 / 4011 meet PED 2014/68/EU SEP requirements?

Yes. Compact one-piece brass ball valve MINI type 4010 / 4011 meets the Pressure Equipment Directive (PED) 2014/68/EU SEP (Sound Engineering Practice) requirements. According to the product description, the valve is classified under Article 4, paragraph 3 (SEP) and is therefore not CEâmarked. The valveâs materials, construction (oneâpiece nickelâplated brass body, chromeâplated brass ball with PTFE seats, brass stem with NBR oârings and blowâout protection), and intended media (air, neutral gases, water, chemicals and petrochemical products free of solids) are consistent with SEP use. It is also stated as compliant with RoHS 2011/65/EU and REACH 1907/2006. Note: SEP classification applies when the equipment falls below PED applicability thresholds or meets conditions allowing Article 4(3) treatment; final responsibility for regulatory classification and installation compliance rests with the purchaser/installer.

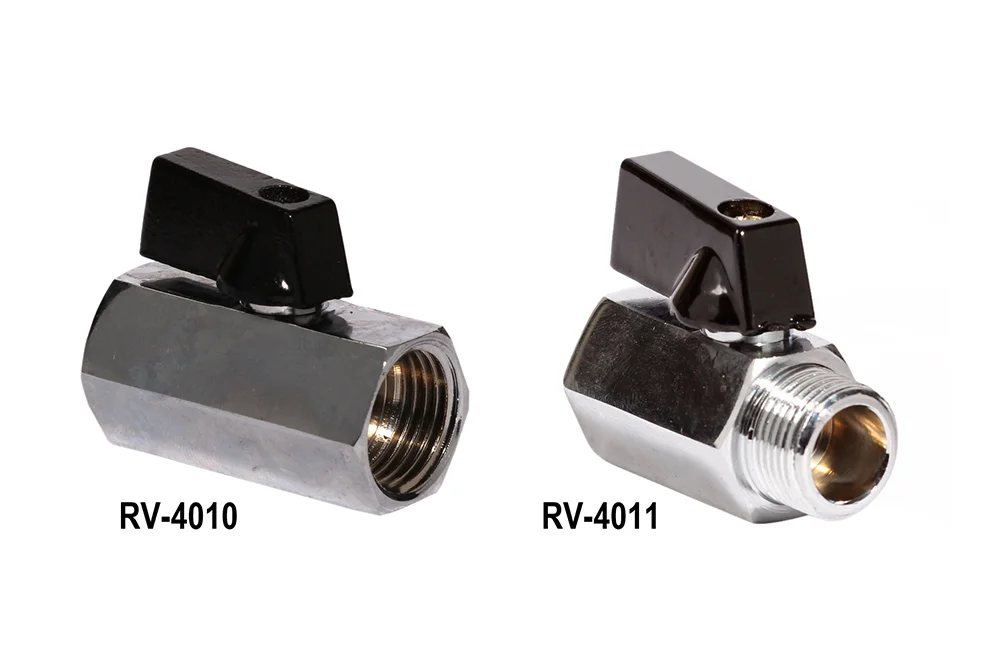

Compact, one-piece, brass ball valve MINI type 4010 / 4011

All products, Ball valves/

Additional information

Material	B – brass (bronze)

Straight, universal, one-piece miniball valve shut-off for applications industrial. body made with hexagonal the rod with brass, nickel-plated, with a lever aluminum painted na black. ball with brass chrome-plated seated in seats with PTFE. stem with brass, with seal o-rings with NBR, has protection against blow-out. valve MINI can be used for air, gases neutral, water, chemicals, products petrochemical itp., free od contamination solid, compliant with resistance chemical materials valve. Meets the requirements of the pressure directive PED 2014/68/EU, in the scope of sound engineering practice (SEP), in accordance with art. 4 ust. 3 (without markings CE). Compliant with the RoHS 2011/65/EU material directive and the REACH 1907/2006 regulation. The given minimum operating temperature applies to a valve emptied of freezing liquid. Kv – coefficient flow valve expressed in units metric (flow water in m 3 na hour at pressure drop o 1 bar). Material the body: brass nickel-plated. Material the ball: brass chrome-plated. Material stem: brass. Material lever: aluminum. sealing the ball: PTFE. sealing stem: 2 x O-ring NBR. connection: thread BSP (ISO 228-1). Operating temperature: from -10°C to +90°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
RV-4010-06	Valve ball MINI type 4010 female/1/4" BSP female, brass	-	10	In stock	Enquiry
RV-4010-10	Valve ball MINI type 4010 female/3/8" BSP female, brass	-	10	In stock	Enquiry
RV-4010-13	Valve ball MINI type 4010 female/1/2" BSP female, brass	-	10	In stock	Enquiry
RV-4010-19	Valve ball MINI type 4010 female/3/4" BSP female, brass	-	10	In stock	Enquiry
RV-4011-06	Valve ball MINI type 4011 BSP female/1/4" BSP male, brass	-	10	In stock	Enquiry
RV-4011-10	Valve ball MINI type 4011 BSP female/3/8" BSP male, brass	-	10	In stock	Enquiry
RV-4011-13	Valve ball MINI type 4011 BSP female/1/2" BSP male, brass	-	10	In stock	Enquiry
RV-4011-19	Valve ball MINI type 4011 BSP female/3/4" BSP male, brass	-	10	In stock	Enquiry
