Is the Ball valve for gas with aluminum lever with GW BSP, type 7160 certified to PED 2014/68/EU and suitable for MOP 5â20 gas installations?

Yes. Ball valve for gas with aluminum lever with GW BSP, type 7160 is certified to PED 2014/68/EU and is suitable for MOP 5â20 gas installations. The Universal ball valve type 7100 description shows compliance with PED Directive 2014/68/EU and 2009/142/EC, meets EN331 + A1, and is intended for gas installations in pressure class MOP 5â20. The materials and specifications (nickel-plated brass body, chrome-plated brass ball, aluminum lever, PTFE ball sealing, FKM + NBR stem sealing, BSP thread, operating temperature â20Â°C to +60Â°C) match the required characteristics, and the valve is rated for maximum constant working pressure across the full temperature range.

Does the Ball valve for gas with aluminum lever with GW BSP, type 7160 maintain full MOP 5â20 performance from â20Â°C to +60Â°C?

Yes. Ball valve for gas with aluminum lever with GW BSP, type 7160 maintains full MOP 5â20 performance from â20Â°C to +60Â°C. The product description for Universal ball valve type 7100 specifies it is intended for gas installations in pressure class MOP 5â20, with maximum constant working pressure across the full temperature range and an operating temperature of â20Â°C to +60Â°C; materials and seals (PTFE ball sealing, FKM + NBR stem sealing) support that rating.

Does the Ball valve for gas with aluminum lever with GW BSP, type 7160 use PTFE and FKM+NBR seals suitable for gas applications?

Yes. Ball valve for gas with aluminum lever with GW BSP, type 7160 uses PTFE ball seals and FKM + NBR stem seals, and is suitable for gas applications. The valve is described as a universal ball valve type 7100 intended for gas installations (MOP 5â20), complies with PED 2014/68/EU and 2009/142/EC and EN331 + A1, has nickel-plated brass body, chrome-plated brass ball, aluminum lever, PTFE ball sealing, FKM + NBR stem sealing, BSP connection, and an operating temperature range of â20Â°C to +60Â°C. These materials and certifications indicate suitability for gas use within the specified pressure and temperature limits.

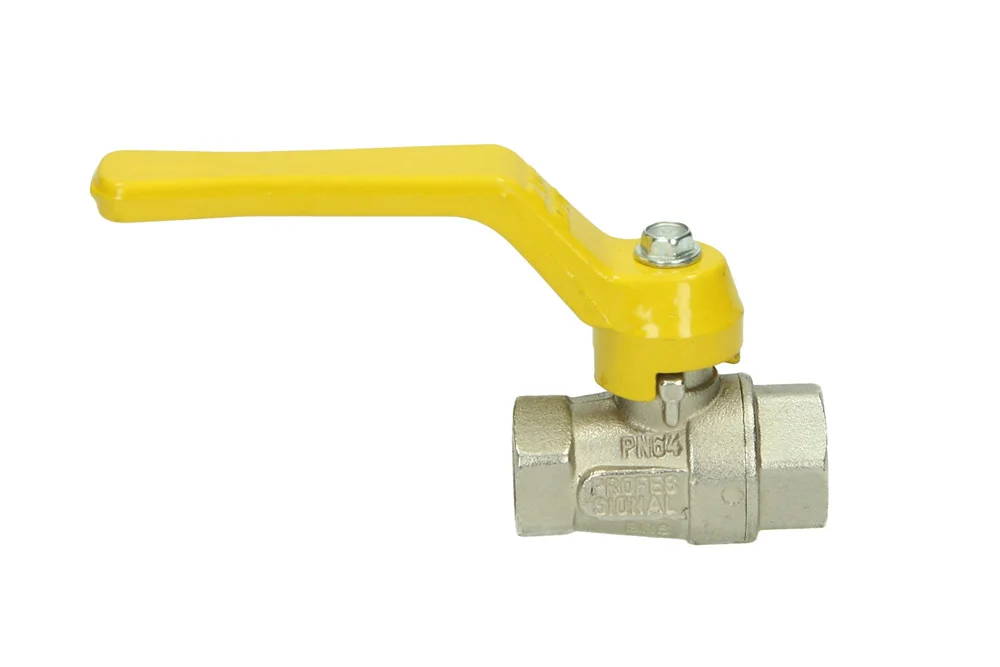

Ball valve for gas with a lever aluminum with female thread BSP, type 7160

All products, Ball valves/

Additional information

Material	B – brass (bronze)

Universal ball valve type 7100 intended for installations gas, in class pressure MOP 5-20. Meets the requirements of the PED 2014/68/EU directive and 2009/142/WE, compliant with the standard EN331 + A1. Maximum Working pressure fixed in full the scope temperatures use. Material the body: brass nickel-plated. Material the ball: brass chrome-plated. Material lever: aluminum. sealing the ball: PTFE. sealing stem: FKM + NBR. connection: BSP female. Operating temperature: from -20°C to +60°C

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
RV-7160-006	Valve ball for gas type 7160 1/4" BSP female, brass, aluminum lever	-	20	In stock	Enquiry
RV-7160-010	Valve ball for gas type 7160 3/8" BSP female, brass, aluminum lever	-	20	In stock	Enquiry
RV-7160-013	Valve ball for gas type 7160 1/2" BSP female, brass, aluminum lever	-	20	In stock	Enquiry
RV-7160-019	Valve ball for gas type 7160 3/4" BSP female, brass, aluminum lever	-	20	In stock	Enquiry
RV-7160-025	Valve ball for gas type 7160 1" BSP female, brass, aluminum lever	-	20	In stock	Enquiry
RV-7160-032	Valve ball for gas type 7160 1.1/4" BSP female, brass, aluminum lever	-	20	In stock	Enquiry
RV-7160-038	Valve ball for gas type 7160 1.1/2" BSP female, brass, aluminum lever	-	20	In stock	Enquiry
RV-7160-050	Valve ball for gas type 7160 2" BSP female, brass, aluminum lever	-	20	In stock	Enquiry
RV-7160-065	Valve ball for gas type 7160 2.1/2" BSP female, brass, aluminum lever	-	20	In stock	Enquiry
RV-7160-075	Valve ball for gas type 7160 3" BSP female, brass, aluminum lever	-	20	In stock	Enquiry
RV-7160-100	Valve ball for gas type 7160 4" BSP female, brass, aluminum lever	-	20	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Universal ball valve type 7100 intended for installations gas, in class pressure MOP 5-20. Meets the requirements of the PED 2014/68/EU directive and 2009/142/WE, compliant with the standard EN331 + A1. Maximum Working pressure fixed in full the scope temperatures use. Material the body: brass nickel-plated. Material the ball: brass chrome-plated. Material lever: aluminum. sealing the ball: PTFE. sealing stem: FKM + NBR. connection: BSP female. Operating temperature: from -20°C to +60°C
