Is the FIL compressed air filter, NEW DEAL series suitable for decentralized systems and close to actuating devices?

Yes. The FIL compressed air filter, NEW DEAL series is specifically recommended for decentralized compressed air systems and installation close to actuating devices. Its metal construction provides durability in harsh conditions, and it is designed for higher operating pressures (up to 18 bar; RA drain up to 10 bar) and temperatures up to +50Â°C. Available connection sizes (1/4"â1") and BSP female threads suit local installations. Filtration options (4, 20, 50 Âµm), multiple condensate drain types (manual, semi-automatic RMSA, automatic SAC), and high flow rates (e.g., 1700 l/min for 1/4", up to 11,000 l/min for 3/4"â1" at 6 bar inlet, Îp=1 bar) make it appropriate for protecting nearby actuators and ensuring reliable decentralized operation.

What condensate drain options are available for the FIL compressed air filter, NEW DEAL series and which is best for high-pressure applications?

FIL compressed air filter, NEW DEAL series offers three condensate drain options: manual, semi-automatic (RMSA) and automatic (SAC). The filter is designed for higher pressures up to 18 bar, but note the RA (manual?) drain is limited to 10 bar. For high-pressure applications the automatic (SAC) or the semi-automatic (RMSA) drains are preferable; choose SAC for fully automatic reliable drainage at high duty, and RMSA if periodic manual intervention is acceptable. Ensure you select sizes and drain type compatible with your operating pressure and flow.

What filtration degrees are available for the FIL compressed air filter, NEW DEAL series and when to choose each?

FIL compressed air filter, NEW DEAL series is available in three filtration degrees: 4 Âµm, 20 Âµm and 50 Âµm. When to choose each: - 4 Âµm. for applications requiring fine filtration to protect sensitive pneumatic actuators, valves and instrumentation from small particles and to improve air quality for precision equipment. Choose when contamination must be minimized and for downstream installations near critical devices. - 20 Âµm. general-purpose choice for standard pneumatic systems where moderate particle removal is needed to protect actuators and controls without the pressure drop and cost of very fine filters. - 50 Âµm. for rough filtration when the main goal is to remove larger condensate and coarse particles (e.g., in harsh environments or on supply lines feeding non-critical equipment), or as a pre-filter ahead of finer stages. Notes on suitability: the metal-bodied NEW DEAL series is built for decentralized installation near actuators, tolerates harsh conditions, higher pressures (up to 18 bar), and temperatures up to +50Â°C. Available sizes (1/4"â1") and drain options (manual, semi-automatic RMSA, automatic SAC) let you match flow requirements (1700â11000 l/min at 6 bar inlet, Îp=1 bar) to your chosen filtration degree.

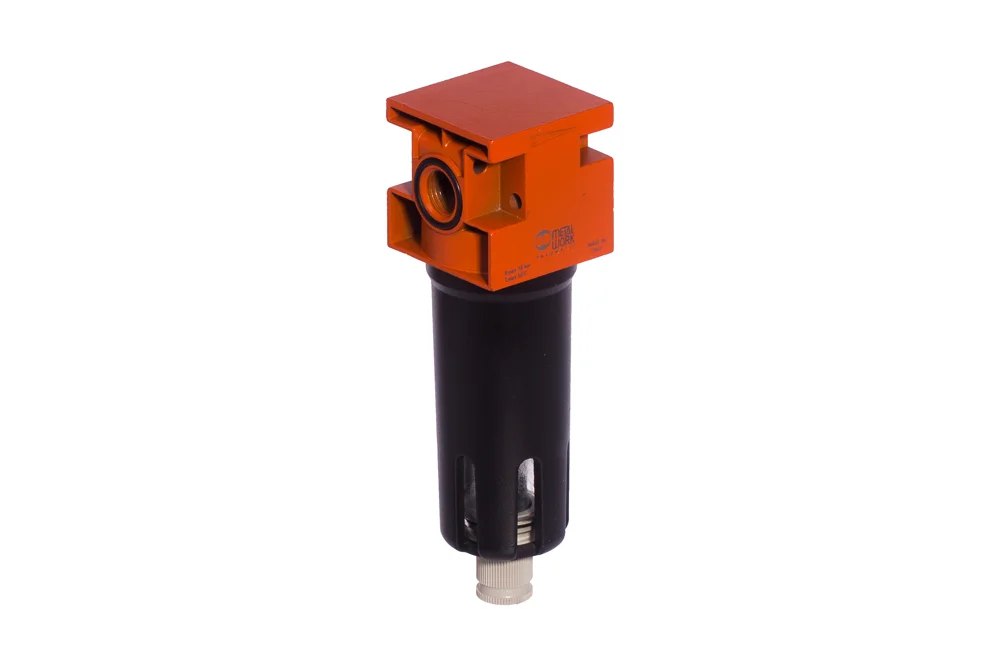

FIL compressed air filter, NEW DEAL series

Air preparation elements (FRL), All products/

Additional information

Maximum operating temperature [°C]	50

The FIL NEW DEAL series filter is recommended for decentralized compressed air systems or in close proximity to actuating devices. Due to its construction (metal structure), it is characterized by resistance to harsh working conditions. Designed for use at higher pressures. Size: 1/4″, 3/8″, 1/2″, 3/4″, 1″. Filtration degree: 4 µm, 20 µm, 50 µm. Supply pressure: up to 18 bar, for drain RA up to 10 bar. Operating temperature: up to +50°C. Connection: BSP female thread 1/4″, 3/8″, 1/2″, 3/4″, 1″. Condensate drain: manual / semi-automatic (RMSA), automatic (SAC). Flow rate: 1700 l/min – 1/4″, 4100 l/min – 3/8″, 1/2″, 11000 l/min – 3/4″, 1″ (at an inlet pressure of 6 bar Δp = 1 bar).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-1221005	Filter FIL 1/4 4 RMSA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1221006	Filter FIL 1/4 20 RMSA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1221008	Filter FIL 1/4 50 RMSA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1221013	Filter FIL 1/4 4 SAC TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1221014	Filter FIL 1/4 20 SAC TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1221016	Filter FIL 1/4 50 SAC TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1321005	Filter FIL 3/8 4 RMSA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1321006	Filter FIL 3/8 20 RMSA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1321008	Filter FIL 3/8 50 RMSA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1321010	Filter FIL 3/8 20 RA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1321013	Filter FIL 3/8 4 SAC TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1321014	Filter FIL 3/8 20 SAC TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1321016	Filter FIL 3/8 50 SAC TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1421005	Filter FIL 1/2 4 RMSA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1421006	Filter FIL 1/2 20 RMSA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1421008	Filter FIL 1/2 50 RMSA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1421009	Filter FIL 1/2" 4 RA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1421010	Filter FIL 1/2 20 RA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1421013	Filter FIL 1/2 4 SAC TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1421014	Filter FIL 1/2 20 SAC TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1421016	Filter FIL 1/2 50 SAC TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1521005	Filter FIL 3/4 4 RMSA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1521006	Filter FIL 3/4 20 RMSA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1521008	Filter FIL 3/4 50 RMSA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1521009	Filter FIL 3/4 4 RA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1521010	Filter FIL 3/4 20 RA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1521012	Filter FIL 3/4 50 RA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1621005	Filter FIL 1 4 RMSA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1621006	Filter FIL 1 20 RMSA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1621008	Filter FIL 1 50 RMSA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1621009	Filter FIL 1 4 RA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1621010	Filter FIL 1 20 RA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1621012	Filter FIL 1 50 RA TMV (NEW DEAL)	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

The FIL NEW DEAL series filter is recommended for decentralized compressed air systems or in close proximity to actuating devices. Due to its construction (metal structure), it is characterized by resistance to harsh working conditions. Designed for use at higher pressures. Size: 1/4″, 3/8″, 1/2″, 3/4″, 1″. Filtration degree: 4 µm, 20 µm, 50 µm. Supply pressure: up to 18 bar, for drain RA up to 10 bar. Operating temperature: up to +50°C. Connection: BSP female thread 1/4″, 3/8″, 1/2″, 3/4″, 1″. Condensate drain: manual / semi-automatic (RMSA), automatic (SAC). Flow rate: 1700 l/min – 1/4″, 4100 l/min – 3/8″, 1/2″, 11000 l/min – 3/4″, 1″ (at an inlet pressure of 6 bar Δp = 1 bar).
