How often should the LUB compressed air lubricator, SYNTESIÂ® series reservoir be refilled under typical operation?

Under typical operation the LUB compressed air lubricator, SYNTESIÂ® series reservoir refill interval depends on flow rate, set lubrication feed (adjustment needle) and tank size. As a practical estimate: - SY1 (60 cmÂ³): at moderate flows (e.g. up to ~1600â3000 l/min) and normal adjustment you can expect refilling roughly every few hours to one day of continuous operation. - SY2 (130 cmÂ³): under the same conditions the larger tank approximately doubles the time between refills, typically several hours up to multiple days. For higher flow rates (3,650â6,100 l/min), higher inlet pressures or richer oil settings, refill frequency will increase significantly. To establish precise intervals, monitor oil level during initial operation runs and adjust maintenance schedule based on actual consumption. Use the rear/front auxiliary ports for level monitoring or pressure sensing to aid predictive refilling.

Can the LUB compressed air lubricator, SYNTESIÂ® series handle pressures up to 15 bar and what are the limits for different sizes?

Yes. The LUB compressed air lubricator, SYNTESIÂ® series can handle pressures up to 15 bar for size SY1 and up to 13 bar for size SY2. Summary of limits and key specs: - Sizes: SY1, SY2 - Max supply pressure: SY1 - 15 bar; SY2 - 13 bar - Tank capacity: SY1 - 60 cmÂ³; SY2 - 130 cmÂ³ - Operating temperature: â10Â°C to +50Â°C - Connections: SY1 - BSP 1/8" to 3/8"; SY2 - BSP 3/8" to 1" - Flow rates (at 6 bar inlet, Îp = 1 bar): 1/8" - 1600 l/min; 1/4" - 3000 l/min; 3/8" - 3650 l/min; 1/2", 3/4", 1" - 6100 l/min

What flow rates does the LUB compressed air lubricator, SYNTESIÂ® series support across different connection sizes?

The LUB compressed air lubricator, SYNTESIÂ® series supports the following flow rates depending on connection size (at inlet pressure 6 bar, Îp = 1 bar): - BSP 1/8": 1600 l/min - BSP 1/4": 3000 l/min - BSP 3/8": 3650 l/min - BSP 1/2": 6100 l/min - BSP 3/4": 6100 l/min - BSP 1": 6100 l/min

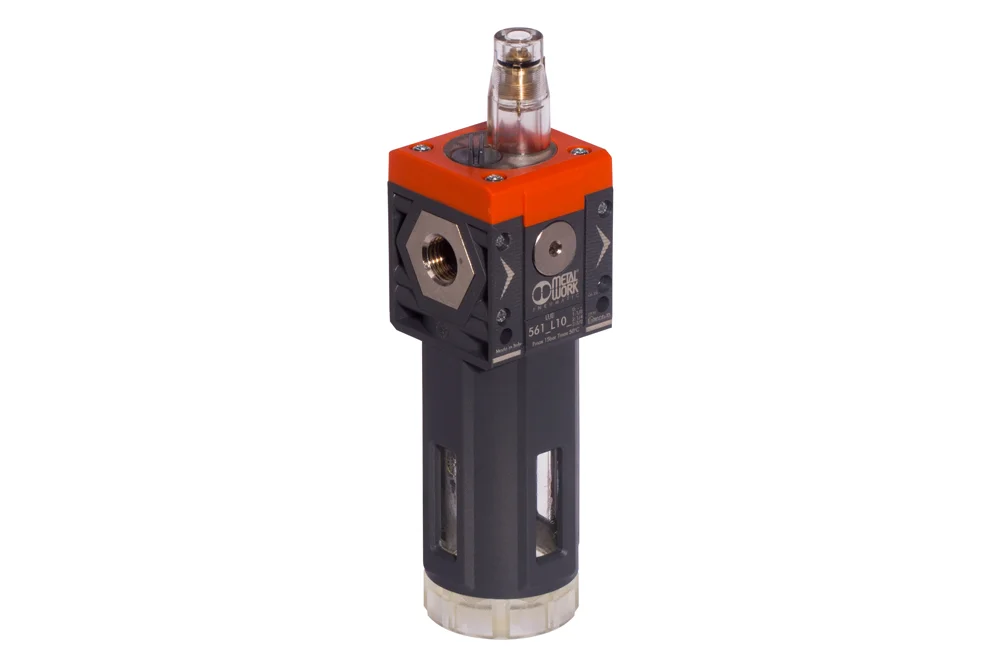

LUB compressed air lubricator, SYNTESI® series

Air preparation elements (FRL), All products/

Additional information

Maximum operating temperature [°C]	50
Minimum operating temperature [°C]	-10

A pneumatic lubricator is a simple and widely used solution that ensures proper lubrication with an oil mist for actuating devices in pneumatic systems. The oil suction process occurs due to the pressure drop created in the Venturi nozzle. The amount of oil droplets introduced into the air stream is regulated by an adjustment needle. There are auxiliary connections on the rear and front surfaces of the lubricator for connecting a manometer, pressure sensor, or for additional air intake. Size: SY1, SY2. Tank capacity: 60 cm³ – SY1, 130 cm³ – SY2. Supply pressure: up to 15 bar for SY1 and up to 13 bar for SY2. Operating temperature: from -10°C to +50°C. Connection: BSP 1/8″ to 3/8″ for SY1 and BSP 3/8″ to 1″ for SY2. Flow rate: 1600 l/min – 1/8″, 3000 l/min – 1/4″, 3650 l/min – 3/8″, 6100 l/min – 1/2″, 3/4″, 1″ (at an inlet pressure of 6 bar Δp = 1 bar).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-5611L101	Lubricator LUB SY1 1/8	-	-	In stock	Enquiry
MW-5612L102	Lubricator LUB SY1 1/4	-	-	In stock	Enquiry
MW-5613L103	Lubricator LUB SY1 3/8	-	-	In stock	Enquiry
MW-5623L103	Lubricator LUB SY2 3/8	-	-	In stock	Enquiry
MW-5624L104	Lubricator LUB SY2 1/2	-	-	In stock	Enquiry
MW-5625L105	Lubricator LUB SY2 3/4	-	-	In stock	Enquiry
MW-5626L106	Lubricator LUB SY2 1	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

A pneumatic lubricator is a simple and widely used solution that ensures proper lubrication with an oil mist for actuating devices in pneumatic systems. The oil suction process occurs due to the pressure drop created in the Venturi nozzle. The amount of oil droplets introduced into the air stream is regulated by an adjustment needle. There are auxiliary connections on the rear and front surfaces of the lubricator for connecting a manometer, pressure sensor, or for additional air intake. Size: SY1, SY2. Tank capacity: 60 cm³ – SY1, 130 cm³ – SY2. Supply pressure: up to 15 bar for SY1 and up to 13 bar for SY2. Operating temperature: from -10°C to +50°C. Connection: BSP 1/8″ to 3/8″ for SY1 and BSP 3/8″ to 1″ for SY2. Flow rate: 1600 l/min – 1/8″, 3000 l/min – 1/4″, 3650 l/min – 3/8″, 6100 l/min – 1/2″, 3/4″, 1″ (at an inlet pressure of 6 bar Δp = 1 bar).
