What maintenance interval is recommended for the Compressed air lubricator, size DN6, to ensure consistent oil mist delivery and optimal performance?

For the Compressed air lubricator, size DN6, it is recommended to inspect and perform routine maintenance every 3 months under normal operating conditions to ensure consistent oil mist delivery and optimal performance. More frequent checks (monthly) are advised if the unit operates near the upper limits of supply pressure (close to 16 bar), in dirty/dusty environments, or under heavy cyclic use. Suggested maintenance tasks at each interval: - Verify tank oil level and refill with the correct lubricating oil as needed (40 cmÂ³ capacity). - Check the polycarbonate tank for cracks or clouding and replace if damaged. - Inspect seals (NBR) and replace if hardened, cracked, or leaking. - Confirm correct oil feed adjustment and that a fine, steady mist is produced. - Clean or replace inlet filters and remove any debris from the housing and ports. - Ensure vertical installation orientation is maintained and tighten G 1/4" BSP connections as required. Annually or after 12 months perform a more thorough service: disassemble, clean internal components, replace seals, inspect brass housing for wear or corrosion, and verify flow performance (1160 l/min at 6 bar inlet, Îp = 1 bar). Always depressurize the system before servicing and operate within the specified temperature range (-10Â°C to +50Â°C).

How do I adjust the oil feed rate on the Compressed air lubricator, size DN6, for different pneumatic device requirements?

Compressed air lubricator, size DN6 Format: To adjust the oil feed rate for different pneumatic devices, use the built-in metering screw/knob on the lubricator body. Procedure: 1. Install the unit vertically with correct G 1/4" BSP connections and supply pressure within 0â16 bar (typical flow rating 1160 l/min at 6 bar, Îp=1 bar). 2. Start with the manufacturerâs recommended setting (small drip visible) and run the pneumatic device under normal load. 3. Slowly turn the metering screw clockwise to decrease oil feed or counterclockwise to increase feed, watching the oil mist and device performance. 4. Aim for a fine, consistent oil mist-too much causes pooling/contamination, too little causes insufficient lubrication. 5. Verify operation across the deviceâs duty cycle and ambient temperature range (-10Â°C to +50Â°C). The 40 cmÂ³ polycarbonate tank and NBR sealing require periodic inspection; refill and clean as needed. If precise feed rates are required, measure drip rate or use inline flow measurement and adjust accordingly.

Can the Compressed air lubricator, size DN6, be mounted in locations with ambient temperatures below -10Â°C or above +50Â°C?

No. The Compressed air lubricator, size DN6 cannot be mounted in locations where ambient temperatures are below -10Â°C or above +50Â°C. Its specified operating temperature range is â10Â°C to +50Â°C; installing it outside this range risks impaired sealing (NBR), potential brass or polycarbonate tank issues, degraded lubrication performance and may void safe operation. Use a model rated for wider temperatures or provide environmental control if operation outside this range is required.

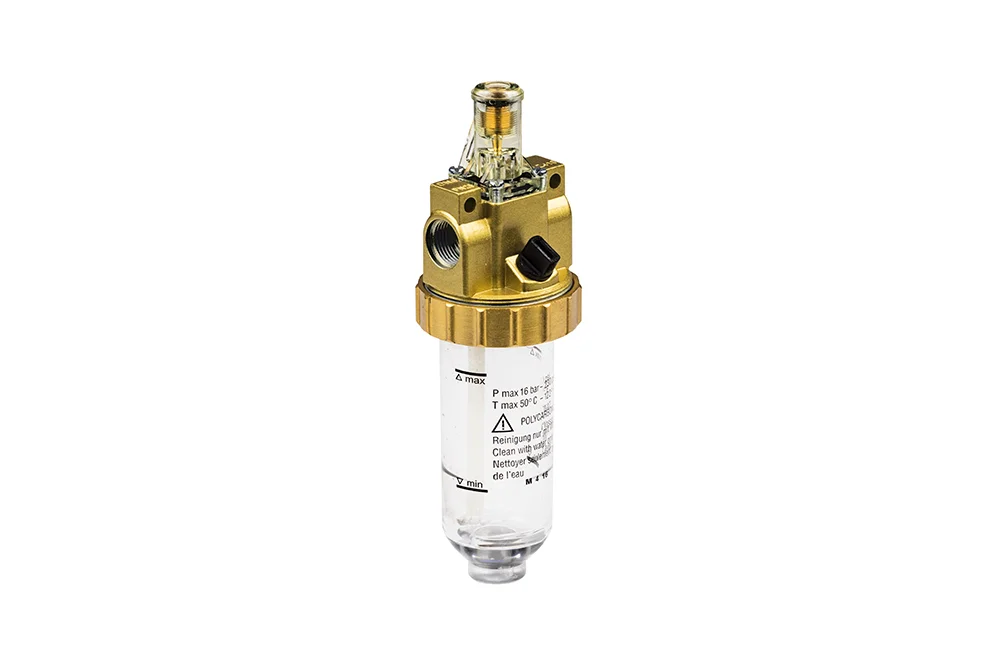

Compressed air lubricator, size DN6

Air preparation elements (FRL), All products/

Additional information

Maximum operating temperature [°C]	50

Compressed air lubricator with polycarbonate tank, ensures proper lubrication of devices in pneumatic installations with oil mist. Size: DN6. Installation: vertical. Housing material: brass. Sealing: NBR. Tank capacity: 40 cm³. Supply pressure: up to 16 bar. Operating temperature: from -10°C to +50°C. Connection: G 1/4″ BSP. Flow rate: 1160 l/min (at inlet pressure 6 bar Δp = 1 bar). Weight: 400 g.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
EW-327022	Grease gun 16 bar DN6, 1/4" BSP thread	-	-	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Compressed air lubricator with polycarbonate tank, ensures proper lubrication of devices in pneumatic installations with oil mist. Size: DN6. Installation: vertical. Housing material: brass. Sealing: NBR. Tank capacity: 40 cm³. Supply pressure: up to 16 bar. Operating temperature: from -10°C to +50°C. Connection: G 1/4″ BSP. Flow rate: 1160 l/min (at inlet pressure 6 bar Δp = 1 bar). Weight: 400 g.
