Is Connection with spigot with male thread, type 50600 compatible with polyurethane hoses of Shore A 98Â° and Viton seals at operating temps -15Â°C to +130Â°C?

Yes. Connection with spigot with male thread, type 50600 is compatible with polyurethane hoses of Shore A 98Â° and Viton seals at operating temperatures -15Â°C to +130Â°C. The product description specifies suitability for plastic hoses with a minimum Shore A hardness of 98Â° (polyurethane meets this), Viton sealing, an operating temperature range of -15Â°C to +130Â°C, and construction in nickel-plated brass with a working pressure of 30 bar.so the materials and temperature ratings align. Ensure hose inner diameter and thread size match the spigot, and verify application pressure cycles and chemical exposure do not exceed Viton or polyurethane limits for your specific use.

Does Connection with spigot with male thread, type 50600 require special installation for use with polyurethane hoses (Shore A 98Â°) and Viton seals at -15Â°C to +130Â°C?

Connection with spigot with male thread, type 50600 does not require special installation for use with polyurethane hoses (Shore A 98Â°) and Viton seals at -15Â°C to +130Â°C beyond standard good-practice measures. The product description specifies compatibility with polyurethane hoses of minimum Shore A 98Â°, Viton sealing, nickel-plated brass construction, operating temperature range â15Â°C to +130Â°C and working pressure up to 30 bar, so components are suited to those materials and conditions. Ensure correct hose diameter fit on the spigot, secure clamping (appropriate clamp type and torque), verify thread sealing where applicable, inspect seals for proper seating, and perform pressure/leak tests at operating conditions. Follow manufacturer torque and installation guidelines if provided.

Can Connection with spigot with male thread, type 50600 withstand continuous 30 bar pressure with polyurethane hoses (Shore A 98Â°)?

Yes. Connection with spigot with male thread, type 50600 can withstand continuous 30 bar pressure when used with polyurethane hoses of Shore A 98Â°, provided installation and operating conditions respect the product specifications: - The product specification lists working pressure: 30 bar. matching your required continuous pressure. - The description explicitly requires a minimum hose hardness of Shore A 98Â° for polyurethane hoses, which you meet. - Materials and sealing (nickel-plated brass body, Viton sealing) and the operating temperature range (â15Â°C to +130Â°C) are suitable for typical industrial hydraulic/air applications at that pressure, assuming fluid and temperature compatibility with Viton. Important practical notes to ensure safe continuous operation: - Verify the hose manufacturerâs continuous working pressure and safety factor at your operating temperature; some hoses have reduced pressure ratings at elevated temperatures. - Ensure proper assembly: correct spigot insertion depth, secure clamping or crimping per hose/connector instructions, and no damage to sealing surfaces. - Confirm system transients (pressure spikes, pulses) do not exceed 30 bar; allow margin for safety factors. - Inspect chemical compatibility of the fluid with Viton and polyurethane. - Regularly inspect for wear, abrasion, or aging of the hose and sealing. If all the above are met, Connection with spigot with male thread, type 50600 is suitable for continuous 30 bar service with Shore A 98Â° polyurethane hoses.

Connection with spigot with a thread external, type 50600

All products, Push-in fittings/

Additional information

Material	B – brass (bronze)

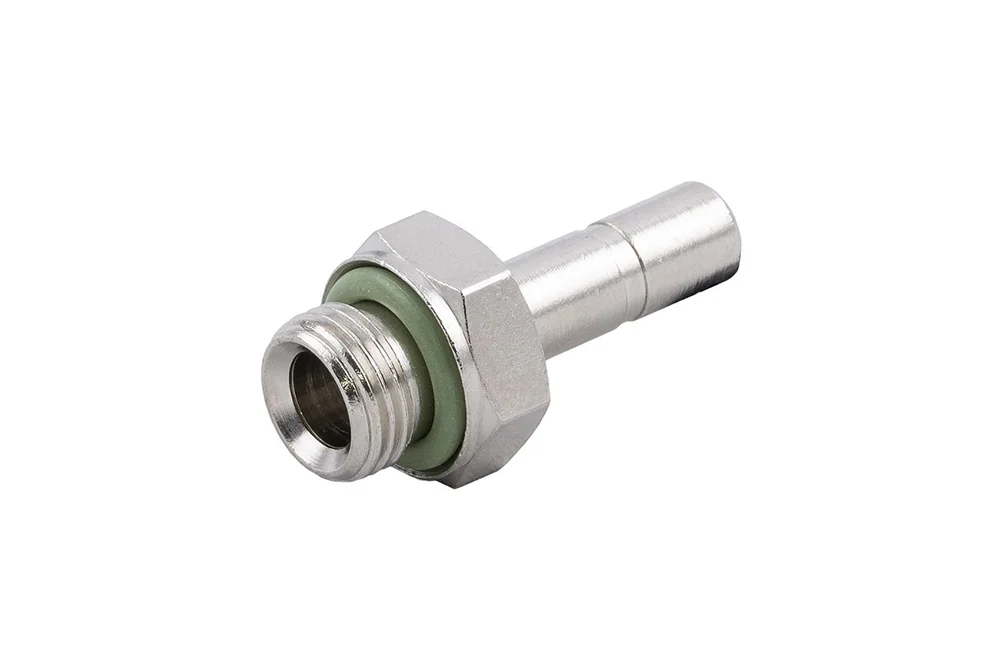

Connection with spigot with a male BSP thread or metric for connecting hoses with plastics (for hoses polyurethane required minimum Hardness per Shore (A): 98°). Material: brass nickel-plated. Operating temperature: od -15°C up to +130°C. Working pressure: 30 bar. sealing: Viton.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AI-50600-04-02	Fitting with spigot (a plug) 4 mm, 1/8" BSP male	-	30	In stock	Enquiry
AI-50600-04-M5	Fitting with spigot (a plug) 4 mm, M5 male	-	30	In stock	Enquiry
AI-50600-06-02	Fitting with spigot (a plug) 6 mm, 1/8" BSP male	-	30	In stock	Enquiry
AI-50600-06-04	Fitting with spigot (a plug) 6 mm, 1/4" BSP male	-	30	In stock	Enquiry
AI-50600-06-M5	Fitting with spigot (a plug) 6 mm, M5 male	-	30	In stock	Enquiry
AI-50600-08-02	Fitting with spigot (a plug) 8 mm, 1/8" BSP male	-	30	In stock	Enquiry
AI-50600-08-04	Fitting with spigot (a plug) 8 mm, 1/4" BSP male	-	30	In stock	Enquiry
AI-50600-08-06	Fitting with spigot (a plug) 8 mm, 3/8" BSP male	-	30	In stock	Enquiry
AI-50600-10-02	Fitting with spigot (a plug) 10 mm, 1/8" BSP male	-	30	In stock	Enquiry
AI-50600-10-04	Fitting with spigot (a plug) 10 mm, 1/4" BSP male	-	30	In stock	Enquiry
AI-50600-10-06	Fitting with spigot (a plug) 10 mm, 3/8" BSP male	-	30	In stock	Enquiry
AI-50600-12-04	Fitting with spigot (a plug) 12 mm, 1/4" BSP male	-	30	In stock	Enquiry
AI-50600-12-06	Fitting with spigot (a plug) 12 mm, 3/8" BSP male	-	30	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Connection with spigot with a male BSP thread or metric for connecting hoses with plastics (for hoses polyurethane required minimum Hardness per Shore (A): 98°). Material: brass nickel-plated. Operating temperature: od -15°C up to +130°C. Working pressure: 30 bar. sealing: Viton.
