Is the 90Â° angle plug connector with BSPT male thread, type R 31C NSF safe for use with drinking water and compliant with NSF/ANSI 51 and 61?

Yes. The 90Â° angle plug connector with BSPT male thread, type R 31C NSF is designed for the food industry (including cold or hot drinking water), contains no plastic components, uses a nickelâplated brass body, and Viton seals (FDAâapproved for food contact). It is explicitly listed with Standards: NSF/ANSI 51 and NSF/ANSI 61, and its temperature and pressure ratings (â20Â°C to +150Â°C, 16 bar) are suitable for typical potable water applications. Therefore it is safe for use with drinking water and compliant with NSF/ANSI 51 and 61.

Does the 90Â° angle plug connector with BSPT male thread, type R 31C NSF withstand industrial detergents and high-temperature cleaning?

Yes. The 90Â° angle plug connector with BSPT male thread, type R 31C NSF is specifically designed for food-industry and industrial use, with no plastic parts, nickel-plated brass body, and Viton seals (FDA-approved). Its construction and materials provide high resistance to detergents and many aggressive chemicals. It is rated for operating temperatures from â20Â°C to +150Â°C and working pressure up to 16 bar, making it suitable for high-temperature cleaning. Compliance with NSF/ANSI 51 and 61 further supports its suitability for sanitary and chemically demanding environments.

Can the 90Â° angle plug connector with BSPT male thread, type R 31C NSF be used in pharmaceutical and medical applications?

Yes. The 90Â° angle plug connector with BSPT male thread, type R 31C NSF can be used in pharmaceutical and medical applications. It is specifically designed for hygienic industries (food, beverage) and is also stated as suitable for chemical, pharmaceutical, electronic industries, and medicine. Key attributes supporting medical/pharmaceutical use: - Materials and sealing: nickel-plated brass body (no plastic components) and Viton seals. Viton is chemically resistant and FDA-approved for food contact, indicating biocompatibility and chemical resistance appropriate for many medical/pharmaceutical environments. - Cleanability and resistance: nickel plating applied via a special chemical process and absence of plastics enhance resistance to detergents and cleaning agents commonly used in pharmaceutical sanitization. - Operating ranges: temperature -20Â°C to +150Â°C and working pressure up to 16 bar accommodate many process and sterilization conditions; vacuum rating 0.99 bar adds versatility. - Certifications: compliance with NSF/ANSI 51 and NSF/ANSI 61 demonstrates suitability for potable water and food-contact applications, which implies a high hygienic standard often required in pharma contexts. Caveats: Final suitability depends on the specific medical/pharmaceutical application, regulatory requirements, and exposure conditions (e.g., specific sterilization methods, aggressive solvents, biocompatibility tests, cytotoxicity, GMP or ISO 13485 requirements). For implantable use or direct patient-contact devices, additional biocompatibility/certification may be required. Verify compatibility with process fluids, cleaning/sterilization regimens, and any industry-specific regulations before selection.

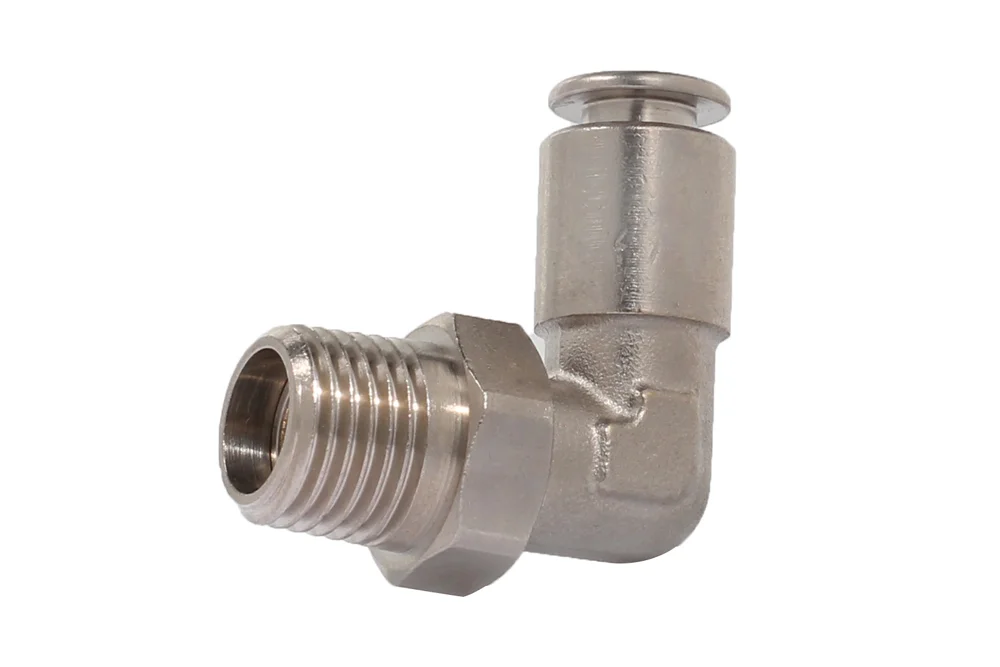

90° angle plug connector with BSPT male thread, type R 31C NSF

All products, Push-in fittings/

Additional information

Material	B – brass (bronze)

Rotary elbow, screw-in with external BSPT tapered thread, series F type R 31C NSF. Designed for the food industry (e.g., for cold or hot drinking water). No plastic components, nickel-plated coating through a special chemical process, and Viton seals ensure high resistance to detergents and other chemicals. Also suitable for various applications in the chemical, pharmaceutical, electronic industries, and in medicine. Operating temperature: from -20°C to +150°C. Working pressure: 16 bar. Vacuum: 0.99 bar. Material: nickel-plated brass. Seal: Viton (approved for food contact by FDA). Standards: NSF/ANSI 51, NSF/ANSI 61.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-2F31C02	Adjustable angle connector R31C NSF hose 4 mm, GZ BSPT 1/8"	-	16	In stock	Enquiry
MW-2F31C03	Adjustable angle connector R31C NSF hose 4 mm, GZ BSPT 1/4"	-	16	In stock	Enquiry
MW-2F31C08	Adjustable angle connector R31C NSF hose 6 mm, GZ BSPT 1/8"	-	16	In stock	Enquiry
MW-2F31C09	Adjustable angle connector R31C NSF hose 6 mm, GZ BSPT 1/4"	-	16	In stock	Enquiry
MW-2F31C10	Adjustable angle connector R31C NSF hose 8 mm, GZ BSPT 1/8"	-	16	In stock	Enquiry
MW-2F31C11	Adjustable angle connector R31C NSF hose 8 mm, GZ BSPT 1/4"	-	16	In stock	Enquiry
MW-2F31C12	Adjustable angle connector R31C NSF hose 8 mm, GZ BSPT 3/8"	-	16	In stock	Enquiry
MW-2F31C13	Adjustable angle connector R31C NSF hose 10 mm, GZ BSPT 1/4"	-	16	In stock	Enquiry
MW-2F31C14	Adjustable angle connector R31C NSF hose 10 mm, GZ BSPT 3/8"	-	16	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Rotary elbow, screw-in with external BSPT tapered thread, series F type R 31C NSF. Designed for the food industry (e.g., for cold or hot drinking water). No plastic components, nickel-plated coating through a special chemical process, and Viton seals ensure high resistance to detergents and other chemicals. Also suitable for various applications in the chemical, pharmaceutical, electronic industries, and in medicine. Operating temperature: from -20°C to +150°C. Working pressure: 16 bar. Vacuum: 0.99 bar. Material: nickel-plated brass. Seal: Viton (approved for food contact by FDA). Standards: NSF/ANSI 51, NSF/ANSI 61.
