DCL full-circuit snap clamp, stainless steel

Additional information

Material

SS – stainless steel

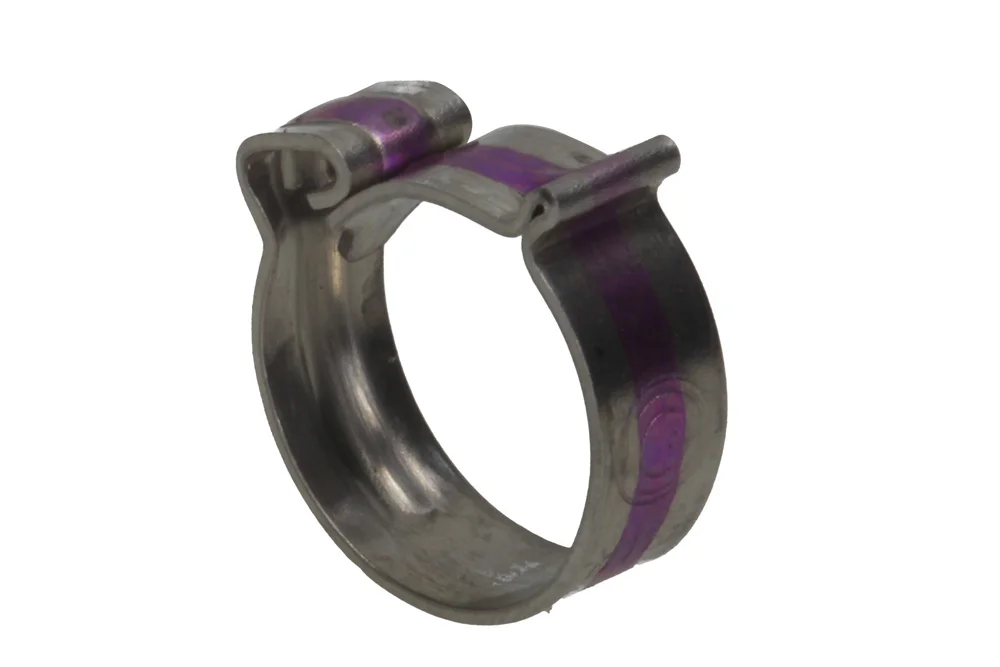

DCL clamp made from a single strip of tape with a snap closure that prevents accidental disconnection. The clamping force is evenly distributed across the clamp, and the smooth inner surface of the tape protects the hose from damage. Easy and quick assembly and disassembly using designated tools. Made of AISI 304 (W4) stainless steel, suitable for use in the food, household appliance, and automotive industries. The colored strap on the clamp facilitates identification. Note: the snap clamp does not have clamping adjustment; the diameter after installation must be precisely matched to the hose. Material: AISI 304 steel. Identification strap available in colors (information provided in the note): blue, green, purple, black, red.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
CL-DCL-080DCL band 8.5÷9.5 mm, width 6 mm, W4--In stock
Enquiry
CL-DCL-085DCL band 9.0÷10.0 mm, width 6 mm, W4--In stock
Enquiry
CL-DCL-090DCL band 9.5÷11.0 mm, width 6 mm. W4--In stock
Enquiry
CL-DCL-095DCL band 10.0÷11.5 mm, width 6 mm, W4--In stock
Enquiry
CL-DCL-100DCL band 10.5÷11.5 mm, width 6 mm, W4--In stock
Enquiry
CL-DCL-105DCL band 11.0÷12.0 mm, width 6 mm, W4--In stock
Enquiry
CL-DCL-110DCL band 11.5÷12.5 mm, width 6 mm, W4--In stock
Enquiry
CL-DCL-115DCL band 12.0÷13.0 mm, width 6 mm. W4--In stock
Enquiry
CL-DCL-120DCL band 12.5÷13.5 mm, width 6 mm, W4--In stock
Enquiry
CL-DCL-125DCL band 13.0÷14.0 mm, width 6 mm, W4--In stock
Enquiry
CL-DCL-130DCL band 13.5÷14.5 mm, width 6 mm, W4--In stock
Enquiry
CL-DCL-135DCL band 14.0÷15.0 mm, width 6 mm, W4--In stock
Enquiry
CL-DCL-140DCL band 14.5÷15.5 mm, width 8 mm, W4--In stock
Enquiry
CL-DCL-145DCL band 15.0÷16.0 mm, width 8 mm, W4--In stock
Enquiry
CL-DCL-150DCL band 15.5÷16.5 mm, width 8 mm, W4--In stock
Enquiry
CL-DCL-155DCL band 16.0÷17.0 mm, width 8 mm, W4--In stock
Enquiry
CL-DCL-160DCL band 16.5÷17.5 mm, width 8 mm, W4--In stock
Enquiry
CL-DCL-165DCL band 17.0÷18.0 mm, width 8 mm, W4--In stock
Enquiry
CL-DCL-170DCL band 17.5÷18.5 mm, width 8 mm, W4--In stock
Enquiry
CL-DCL-175DCL band 18.0÷19.0 mm, width 8 mm, W4--In stock
Enquiry
CL-DCL-180DCL band 18.5÷19.5 mm, width 8 mm, W4--In stock
Enquiry
CL-DCL-185DCL band 19.0÷20.0 mm, width 8 mm, W4--In stock
Enquiry
CL-DCL-190DCL band 19.5÷21.0 mm, width 8 mm, W4--In stock
Enquiry
CL-DCL-195DCL band 20.0÷21.5 mm, width 8 mm, W4--In stock
Enquiry
CL-DCL-200DCL band 20.5÷22.0 mm, width 8 mm, W4--In stock
Enquiry
CL-DCL-205DCL band 21.0÷22.5 mm, width 8 mm, W4--In stock
Enquiry
CL-DCL-210DCL band 21.5÷23.0 mm, width 8 mm, W4--In stock
Enquiry
CL-DCL-215DCL band 22.0÷23.5 mm, width 8 mm, W4--In stock
Enquiry
CL-DCL-220DCL band 22.5÷24.0 mm, width 8 mm, W4--In stock
Enquiry
CL-DCL-225DCL band 23.0÷24.5 mm, width 8 mm, W4--In stock
Enquiry
CL-DCL-230DCL band 23.5÷25.0 mm, width 8 mm, W4--In stock
Enquiry
CL-DCL-235DCL band 24.0÷25.5 mm, width 8 mm, W4--In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

DCL clamp made from a single strip of tape with a snap closure that prevents accidental disconnection. The clamping force is evenly distributed across the clamp, and the smooth inner surface of the tape protects the hose from damage. Easy and quick assembly and disassembly using designated tools. Made of AISI 304 (W4) stainless steel, suitable for use in the food, household appliance, and automotive industries. The colored strap on the clamp facilitates identification. Note: the snap clamp does not have clamping adjustment; the diameter after installation must be precisely matched to the hose. Material: AISI 304 steel. Identification strap available in colors (information provided in the note): blue, green, purple, black, red.

Additional information

Material

SS – stainless steel
