Can DIN 11851 end with GZ, for welding, stainless steel, type DZS withstand 40 bar at DN25 and maintain Ra 0.8 Âµm in the bore?

Yes. A DIN 11851 end with GZ, for welding, stainless steel, type DZS can meet those requirements. The standard specifies an end fitting with external thread (Rd), a welding stub, and an internal surface finish Ra 0.8 Âµm in the bore for food/chemical use. The maximum allowable working pressure for the connection per DIN 11851 is 40 bar for DN10âDN40, which includes DN25, so DN25 can withstand 40 bar. Ensure appropriate gasket material for the intended operating temperature and verify weld procedure and material grade of the stainless steel to maintain Ra 0.8 Âµm after welding and any necessary machining or surface treatment.

Can DIN 11851 end with GZ, for welding, stainless steel, type DZS, meet 40 bar at DN25 while ensuring Ra 0.8 Âµm in the bore?

Yes. A DIN 11851 end with GZ, for welding, stainless steel, type DZS Format can meet 40 bar at DN25 while ensuring Ra 0.8 Âµm in the bore, provided it conforms to the DIN 11851 specification: external thread Rd with welding stub, Ra (in the hole) 0.8 Âµm, stainless steel construction, and the maximum allowable working pressure per DIN 11851 for DN10âDN40 is 40 bar. Ensure correct material grade, proper welding procedures, gasket compatibility for operating temperature, and inspection/traceability to verify the bore finish and pressure capability.

Can DIN 11851 end with GZ, for welding, stainless steel, type DZS, achieve 40 bar at DN25 while keeping Ra 0.8 Âµm?

Yes. DIN 11851 end with GZ, for welding, stainless steel, type DZS Format can achieve 40 bar at DN25 while keeping Ra 0.8 Âµm, provided the following conditions are met: - The component complies with the DIN 11851 specification: external thread Rd, welding stub, Ra 0.8 Âµm in the inner surface as required for food/chemical use. - The connection size falls within the standard allowable pressure range: DN10âDN40 allows up to 40 bar (so DN25 is covered). - The stainless steel material and weld quality are appropriate for the pressure and service temperature; welds must be executed to maintain structural integrity and surface finish in the bore. - The selected gasket material suits the operating temperature and media; gasket selection and installation must follow DIN 11851 guidance to prevent leakage at 40 bar. - Proper machining/finishing processes must ensure the Ra 0.8 Âµm surface is maintained after welding and any postâweld treatment. Nonâconforming surface or heatâaffected zones must be remedied (e.g., electropolishing or grinding) without compromising dimensions. - Assembly and testing (pressure/leak tests) must confirm the connection holds 40 bar in the intended service conditions. If all the above are observed, DIN 11851 end with GZ, for welding, stainless steel, type DZS Format at DN25 can be used at 40 bar while maintaining Ra 0.8 Âµm.

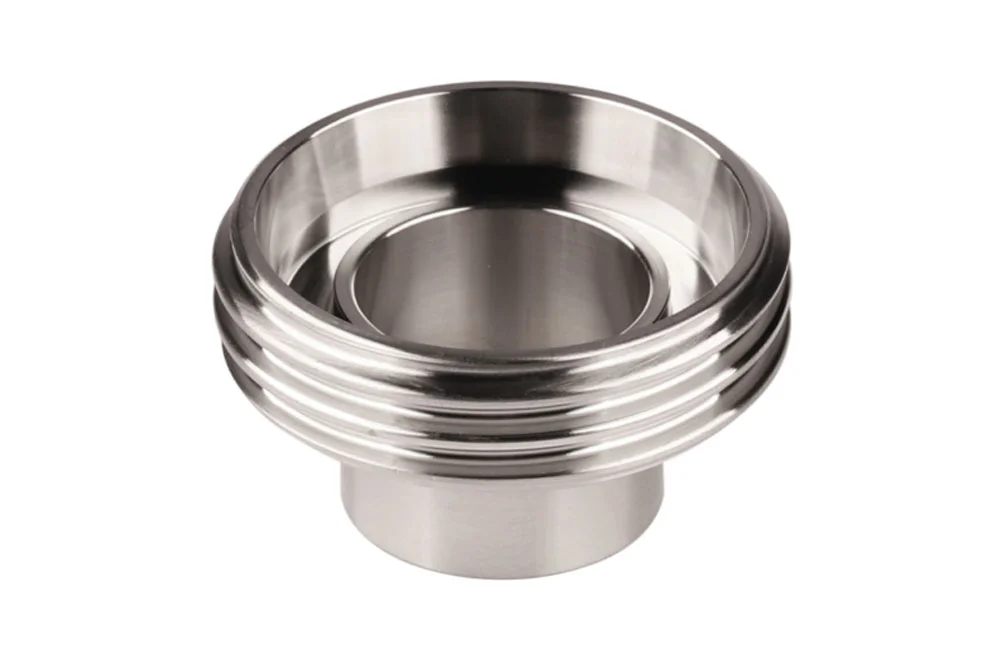

Fitting DIN 11851 with male thread, for welding-on, steel stainless, type DZS

All products, Hygienic stainless steel couplings/

Additional information

Material	SS – stainless steel
Standard length [m]	100

Fitting DIN 11851 with a thread external Rd, with a weld-on spigot, Ra (in the bore) 0.8 µm, for use in the food and chemical industry. Maximum permissible working pressure (for the coupling itself acc. to DIN 11851): 40 bar (DN10÷DN40), 25 bar (DN50÷DN100), 16 bar (DN125÷DN150). Operating temperature: depending on type material used the gasket. Material: steel stainless.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
NH-DZS-010	Fitting DIN 11851 for welding-on DN10, Rd 28x1/8", 13x10 mm	-	40	In stock	Enquiry
NH-DZS-015	Fitting DIN 11851 for welding-on DN15, Rd 34x1/8", 19x16 mm	-	40	In stock	Enquiry
NH-DZS-020	Fitting DIN 11851 for welding-on DN20, Rd 44x1/6", 23x20 mm	-	40	In stock	Enquiry
NH-DZS-025	Fitting DIN 11851 for welding-on DN25, Rd 52x1/6", 29x26 mm	-	40	In stock	Enquiry
NH-DZS-032	Fitting DIN 11851 for welding-on DN32, Rd 58x1/6", 35x32 mm	-	40	In stock	Enquiry
NH-DZS-040	Fitting DIN 11851 for welding-on DN40, Rd 65x1/6", 41x38 mm	-	40	In stock	Enquiry
NH-DZS-050	Fitting DIN 11851 for welding-on DN50, Rd 78x1/6", 53x50 mm	-	25	In stock	Enquiry
NH-DZS-065	Fitting DIN 11851 for welding-on DN65, Rd 95x1/6", 70x66 mm	-	25	In stock	Enquiry
NH-DZS-080	Fitting DIN 11851 for welding-on DN80, Rd 110x1/4", 85x81 mm	-	25	In stock	Enquiry
NH-DZS-100	Fitting DIN 11851 for welding-on DN100, Rd 130x1/4", 104x100 mm	-	25	In stock	Enquiry
NH-DZS-125	Fitting DIN 11851 for welding-on DN125, Rd 160x1/4", 129x125 mm	-	16	In stock	Enquiry
NH-DZS-150	Fitting DIN 11851 for welding-on DN150, Rd 190x1/4", 154x150 mm	-	16	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Fitting DIN 11851 with a thread external Rd, with a weld-on spigot, Ra (in the bore) 0.8 µm, for use in the food and chemical industry. Maximum permissible working pressure (for the coupling itself acc. to DIN 11851): 40 bar (DN10÷DN40), 25 bar (DN50÷DN100), 16 bar (DN125÷DN150). Operating temperature: depending on type material used the gasket. Material: steel stainless.
