Is the Joint seal DIN 32676, EPDM suitable for continuous use at temperatures between -40Â°C and +140Â°C?

Yes. The Joint seal DIN 32676, EPDM is suitable for continuous use across the stated range of -40Â°C to +140Â°C. The product specification for the TRICLOVER gasket DIN 32676 lists an operating temperature from -40Â°C to +140Â°C and the material is EPDM (ethylene-propylene-diene rubber), which is formulated to maintain flexibility, sealing properties and resistance to aging, heat and weathering within that temperature span. For specific process conditions (e.g., presence of aggressive chemicals, steam at pressure, vacuum, rapid thermal cycling) verify compatibility and performance with the manufacturer or refer to detailed material data sheets and application standards.

Can Joint seal DIN 32676, EPDM withstand occasional exposure to higher temperatures beyond its -40Â°C to +140Â°C range?

Joint seal DIN 32676, EPDM Format is specified for an operating temperature range of -40Â°C to +140Â°C. Occasional short-term exposure slightly above the upper limit may be tolerated without immediate failure, as EPDM has some thermal resilience; however, prolonged or repeated exposure beyond +140Â°C accelerates hardening, loss of elasticity, compression set and chemical degradation, reducing seal life and risking leakage. For safety and predictable performance, avoid exceeding the specified range; if higher occasional peak temperatures are expected, select a gasket material rated for those temperatures or consult the manufacturer for validated limits and testing data.

Does Joint seal DIN 32676, EPDM maintain chemical resistance at -40Â°C to +140Â°C?

Joint seal DIN 32676, EPDM Format: EPDM (ethyleneâpropyleneâdiene rubber) used in DIN 32676 gaskets typically offers excellent resistance to hot water, steam, many inorganic chemicals, acids and alkalis, and good weather, ozone and aging resistance across a broad temperature range. The specified operating temperature range of â40 Â°C to +140 Â°C falls within EPDMâs normal usable span, so the material will generally retain its mechanical properties (flexibility, elasticity, sealing ability) throughout that range. However, EPDM has known chemical limitations: it is not resistant to most hydrocarbons, mineral oils, many organic solvents, cutting fluids, fuels, and certain strong oxidizing agents. At low temperatures near â40 Â°C EPDM becomes stiffer but typically remains functional for sealing if properly specified; at the upper end (around +140 Â°C) prolonged exposure to aggressive chemicals or oxidative conditions can accelerate degradation. Conclusion: Joint seal DIN 32676, EPDM Format will maintain chemical resistance within â40 Â°C to +140 Â°C for media to which EPDM is compatible (water, steam, many acids/alkalis, glycols, etc.). It will not be suitable for hydrocarbons, oils, fuels, or incompatible solvents even if the temperature is within the stated range. For a definitive assessment, validate compatibility with the specific chemical(s), concentration and service conditions (pressure, exposure time, dynamic/static seal) and consult manufacturer's chemical compatibility data.

Gasket coupling DIN 32676, EPDM

All products, Hygienic stainless steel couplings/

Additional information

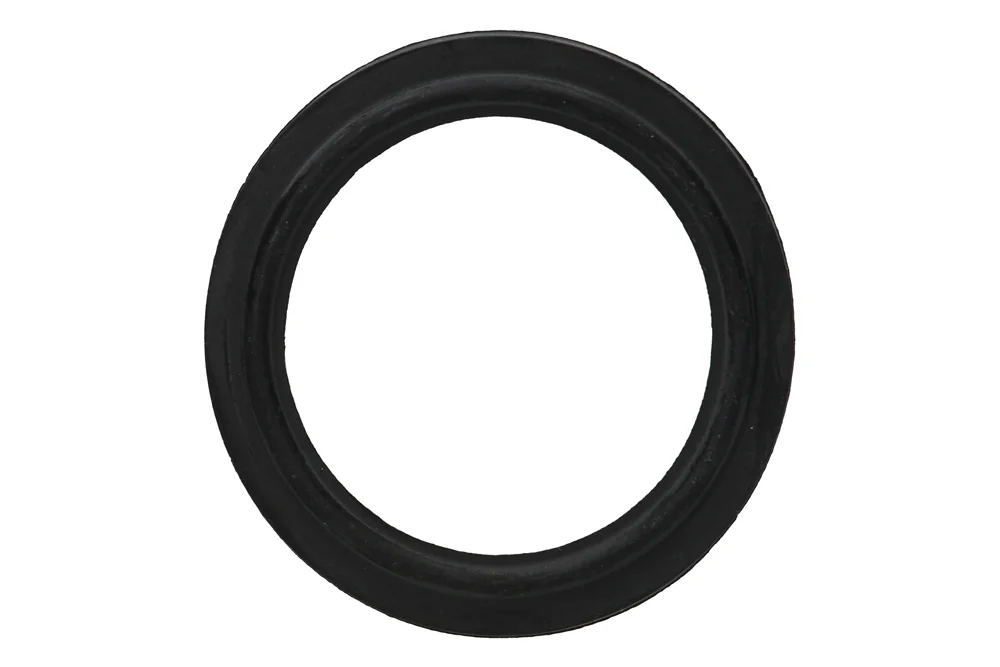

A TRICLOVER gasket for a DIN 32676. Operating temperature: from -40°C to +140°C. Material: EPDM – rubber ethylene-propylene-diene.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
NH-TUE-025-010	Gasket TRICLOVER DN10 for a flange 25 mm, EPDM	-	-	In stock	Enquiry
NH-TUE-025-016	Gasket TRICLOVER DN16 for a flange 25 mm, EPDM	-	-	In stock	Enquiry
NH-TUE-034-010	Gasket TRICLOVER DN10 for a flange 34 mm, EPDM	-	-	In stock	Enquiry
NH-TUE-034-015	Gasket TRICLOVER DN15 for a flange 34 mm, EPDM	-	-	In stock	Enquiry
NH-TUE-034-020	Gasket TRICLOVER DN20 for a flange 34 mm, EPDM	-	-	In stock	Enquiry
NH-TUE-050-025	Gasket TRICLOVER DN25 for a flange 50.5 mm, EPDM	-	-	In stock	Enquiry
NH-TUE-050-032	Gasket TRICLOVER DN32 for a flange 50.5 mm, EPDM	-	-	In stock	Enquiry
NH-TUE-050-038	Gasket TRICLOVER DN38 for a flange 50.5 mm, EPDM	-	-	In stock	Enquiry
NH-TUE-064-050	Gasket TRICLOVER DN50 for a flange 64 mm, EPDM	-	-	In stock	Enquiry
NH-TUE-091-065	Gasket TRICLOVER DN65 for a flange 91 mm, EPDM	-	-	In stock	Enquiry
