Is the DIN 3015 heavy duty cartridge, polypropylene, type 201 compatible with pipes operating between -30Â°C and +90Â°C?

Yes. The DIN 3015 heavy duty cartridge, polypropylene, type 201 is specified with an operating temperature range from -30Â°C to +90Â°C, so it is compatible with pipes operating within that temperature span.

Can DIN 3015 heavy duty cartridge, polypropylene, type 201 be used with grooved-surface pipes?

Yes. DIN 3015 heavy duty cartridge, polypropylene, type 201 can be used with grooved-surface pipes. The two-part insert is described as having a profiled (grooved) surface for the pipe opening and is made of green polypropylene, designed to accommodate grooved pipes within the stated operating temperature range (-30Â°C to +90Â°C). Ensure the groove pattern and pipe diameter match the insert dimensions and verify chemical compatibility and temperature limits for the specific application before final installation.

Does DIN 3015 heavy duty cartridge, polypropylene, type 201 resist chemical exposure from common cleaning agents?

DIN 3015 heavy duty cartridge, polypropylene, type 201 offers good general resistance to many common cleaning agents, but suitability depends on the specific chemical and concentration. Key points: - Material: polypropylene is chemically resistant to water, many alkalis, detergents, and dilute acids; it resists alcohols and many solvents at low concentrations. - Typical cleaning agents: mild alkaline cleaners, neutral detergents, and dilute acidic cleaners used for routine cleaning are generally safe. Routine disinfectants like diluted bleach (sodium hypochlorite) and quaternary ammonium compounds are often compatible at typical use concentrations and exposure times. - Limitations: strong oxidizers (high-concentration bleach, concentrated hydrogen peroxide), strong acids or bases at high concentrations, chlorinated solvents (e.g., methylene chloride), aromatic/halogenated solvents, and hot aggressive chemical exposures can damage polypropylene, causing swelling, embrittlement, surface degradation or loss of mechanical properties. - Temperature: operating range â30 Â°C to +90 Â°C. Chemical resistance worsens at higher temperatures; compatibility at or near +90 Â°C should be verified because elevated temperature accelerates chemical attack. - Mechanical context: as a clamp insert, chemical exposure combined with mechanical stress (clamping pressure, flexing) can increase risk of failure if the agent softens or embrittles the polymer. Recommendation: for a definitive answer, identify the exact cleaning agents, concentrations, temperatures and contact times you plan to use and consult the polypropylene chemical compatibility charts or the material supplier. For critical or continuous exposure, perform compatibility testing on the DIN 3015 heavy duty cartridge, polypropylene, type 201 under real-use conditions.

DIN 3015 heavy duty cartridge, polypropylene, type 201

All products, Clamps for hydraulic pipes/

Additional information

Material	P – material (plastic)

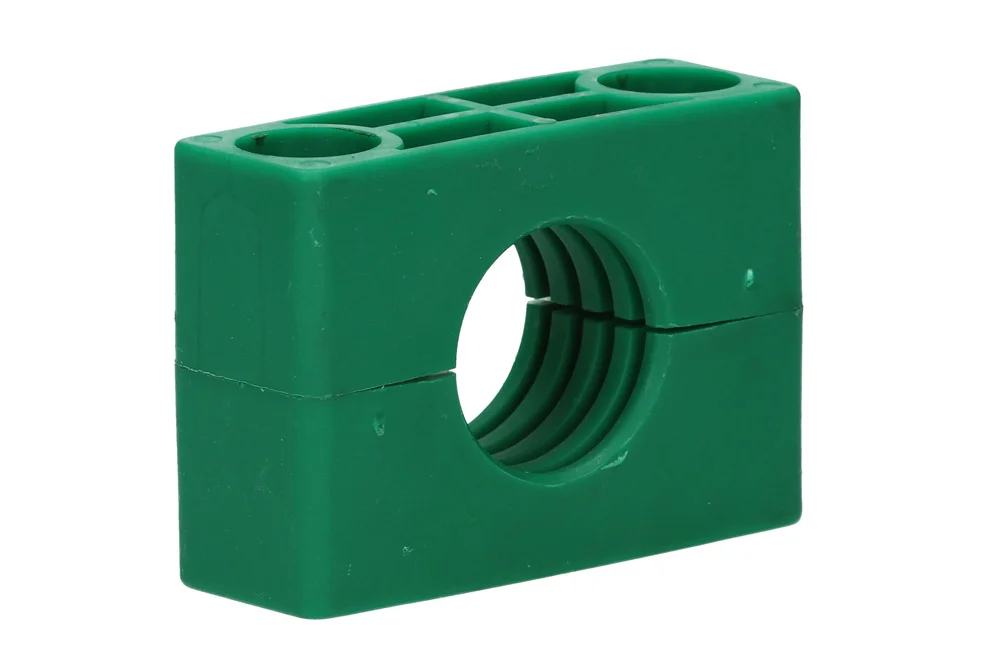

Two-part insert of DIN 3015 type 201 clamp made according to DIN 3015 standard. It typically features a profiled (grooved) surface for the pipe opening. Insert material: green polypropylene. Operating temperature: from -30°C to +90°C.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
TC-PP201-106,4X	DIN3015 heavy PP insert for 6.4 mm pipe	-	-
TC-PP201-106X	DIN3015 heavy PP insert for 6 mm pipe	-	-
TC-PP201-108X	DIN3015 heavy PP insert for 8 mm pipe	-	-
TC-PP201-109,5X	DIN3015 heavy PP insert for 9.5 mm pipe	-	-
TC-PP201-110X	DIN3015 heavy PP insert for 10 mm pipe	-	-
TC-PP201-112,7X	DIN3015 heavy PP insert for 12.7 mm pipe	-	-
TC-PP201-112X	DIN3015 heavy PP insert for 12 mm pipe	-	-
TC-PP201-113,5X	DIN3015 heavy PP insert for 13.5 mm pipe	-	-
TC-PP201-114X	DIN3015 heavy PP insert for 14 mm pipe	-	-
TC-PP201-115X	DIN3015 heavy PP insert for 15 mm pipe	-	-
TC-PP201-116X	DIN3015 heavy PP insert for 16 mm pipe	-	-
TC-PP201-117,2X	DIN3015 heavy PP insert for 17.2 mm pipe	-	-
TC-PP201-118X	DIN3015 heavy PP insert for 18 mm pipe	-	-
TC-PP201-219X	DIN3015 heavy PP insert for 19 mm pipe	-	-
TC-PP201-220X	DIN3015 heavy PP insert for 20 mm pipe	-	-
TC-PP201-221,3X	DIN3015 heavy PP insert for 21.3 mm pipe	-	-
TC-PP201-222X	DIN3015 heavy PP insert for 22 mm pipe	-	-
TC-PP201-225,4X	DIN3015 heavy PP insert for 25.4 mm pipe	-	-
TC-PP201-225X	DIN3015 heavy PP insert for 25 mm pipe	-	-
TC-PP201-226,9X	DIN3015 heavy PP insert for 26.9 mm pipe	-	-
TC-PP201-228X	DIN3015 heavy PP insert for 28 mm pipe	-	-
TC-PP201-230X	DIN3015 heavy PP insert for 30 mm pipe	-	-
TC-PP201-330X	DIN3015 heavy PP insert for 30 mm pipe	-	-
TC-PP201-332X	DIN3015 heavy PP insert for 32 mm pipe	-	-
TC-PP201-333,7X	DIN3015 heavy PP insert for 33.7 mm pipe	-	-
TC-PP201-335X	DIN3015 heavy PP insert for 35 mm pipe	-	-
TC-PP201-338X	DIN3015 heavy PP insert for 38 mm pipe	-	-
TC-PP201-340X	DIN3015 heavy PP insert for 40 mm pipe	-	-
TC-PP201-342,4X	DIN3015 heavy PP insert for 42.4 mm pipe	-	-
TC-PP201-342X	DIN3015 heavy PP insert for 42 mm pipe	-	-
TC-PP201-438X	DIN3015 heavy PP insert for 38 mm pipe	-	-
TC-PP201-442,4X	DIN3015 heavy PP insert for 42.4 mm pipe	-	-
TC-PP201-442X	DIN3015 heavy PP insert for 42 mm pipe	-	-
TC-PP201-444,5X	DIN3015 heavy PP insert for 44.5 mm pipe	-	-
TC-PP201-448,3X	DIN3015 heavy PP insert for 48.3 mm pipe	-	-
TC-PP201-450,8X	DIN3015 heavy PP insert for 50.8 mm pipe	-	-
TC-PP201-450X	DIN3015 heavy PP insert for 50 mm pipe	-	-
TC-PP201-455X	DIN3015 heavy PP insert for 55 mm pipe	-	-
TC-PP201-457X	DIN3015 heavy PP insert for 57 mm pipe	-	-
TC-PP201-460,3X	DIN3015 heavy PP insert for 60.3 mm pipe	-	-
TC-PP201-463,5X	DIN3015 heavy PP insert for 63.5 mm pipe	-	-
TC-PP201-465X	DIN3015 heavy PP insert for 65 mm pipe	-	-
TC-PP201-470X	DIN3015 heavy PP insert for 70 mm pipe	-	-
TC-PP201-565X	DIN3015 heavy PP insert for 65 mm pipe	-	-
TC-PP201-570X	DIN3015 heavy PP insert for 70 mm pipe	-	-
TC-PP201-575X	DIN3015 heavy PP insert for 75 mm pipe	-	-
TC-PP201-576,1X	DIN3015 heavy PP insert for pipe 76.1 mm	-	-
TC-PP201-580X	DIN3015 heavy PP insert for 80 mm pipe	-	-
TC-PP201-582,5X	DIN3015 heavy PP insert for pipe 82.5 mm	-	-
TC-PP201-588,9X	DIN3015 heavy PP insert for pipe 88.9 mm	-	-
TC-PP201-6100X	DIN3015 heavy PP insert for 100 mm pipe	-	-
TC-PP201-6101,6X	DIN3015 heavy PP insert for pipe 101.6 mm	-	-
TC-PP201-6108X	DIN3015 heavy PP insert for 108 mm pipe	-	-
TC-PP201-6114,3X	DIN3015 heavy PP insert for pipe 114.3 mm	-	-
TC-PP201-6127X	DIN3015 heavy PP insert for 127 mm pipe	-	-
TC-PP201-6133X	DIN3015 heavy PP insert for 133 mm pipe	-	-
TC-PP201-688,9X	DIN3015 heavy PP insert for pipe 88.9 mm	-	-
TC-PP201-7133X	DIN3015 heavy PP insert for 133 mm pipe	-	-
TC-PP201-7139,7X	DIN3015 heavy PP insert for pipe 139.7 mm	-	-
TC-PP201-7152,4X	DIN3015 heavy PP insert for pipe 152.4 mm	-	-
TC-PP201-7165X	DIN3015 heavy PP insert for 165 mm pipe	-	-
TC-PP201-7168,3X	DIN3015 heavy PP pipe support for 168.3 mm pipe	-	-
TC-PP201-8168,3X	DIN3015 heavy PP insert for pipe 168.3 mm	-	-
TC-PP201-8177,8X	DIN3015 heavy PP insert for pipe 177.8 mm	-	-
TC-PP201-8193,7X	DIN3015 heavy PP insert for pipe 193.7 mm	-	-
TC-PP201-8216X	DIN3015 heavy PP insert for 216 mm pipe	-	-
TC-PP201-8219,1X	DIN3015 heavy PP insert for pipe 219.1 mm	-	-

Two-part insert of DIN 3015 type 201 clamp made according to DIN 3015 standard. It typically features a profiled (grooved) surface for the pipe opening. Insert material: green polypropylene. Operating temperature: from -30°C to +90°C.
