Is the Clamp DIN 3015 standard, rubber, type 100 suitable for outdoor and marine installations at temperatures between -40Â°C and +80Â°C?

Yes. Clamp DIN 3015 standard, rubber, type 100 is suitable for outdoor and marine installations at temperatures between â40 Â°C and +80 Â°C. The product description explicitly states an operating temperature range of â40 Â°C to +80 Â°C and notes suitability for ground and marine installations. Materials.rubber clamp body, galvanized steel screws, and carbon steel base.are typical for such environments; galvanized screws provide corrosion resistance, and the design allows welding, bolting, or rail mounting as required. Note: For long-term exposure to aggressive marine atmospheres (salt spray, splash zones) or specific chemical exposures, confirm material grades, protective coatings, and any additional corrosion protection with TUBES INTERNATIONALÂ® or specify stainless-steel fasteners/bases if needed.

Can Clamp DIN 3015 standard, rubber, type 100 be welded to different structural materials like stainless steel or aluminum?

Clamp DIN 3015 standard, rubber, type 100 can be welded to different structural materials like stainless steel or aluminum, but with important caveats. The clamp base is carbon steel and intended for welding to supporting structures; welding carbon steel base to stainless steel or aluminum directly is not recommended due to metallurgical incompatibilities (dissimilarâmetal welding can cause corrosion, brittleness, and weak joints). For stainless steel, use proper filler metals, joint design, and postâweld treatments or weld a compatible stainless steel adapter plate to the structure. For aluminum, avoid direct welding of the carbon steel base - instead fasten via bolting, use a compatible adapter (aluminum or stainless plate) welded to the structure and then bolt the carbon steel base, or select a base material/mounting option suitable for aluminum. Consult TUBES INTERNATIONALÂ® or a qualified welding engineer for materialâspecific procedures and corrosion protection.

Can Clamp DIN 3015 standard, rubber, type 100 be supplied with stainless steel screws and bases for corrosive environments?

Yes. Clamp DIN 3015 standard, rubber, type 100 can be supplied with stainless steel screws and bases for corrosive environments, but this is a nonâstandard option that must be specified and confirmed with the supplier. Details and considerations: - Standard configuration: rubber clamp, galvanized steel screws, carbon steel base; designed for -40Â°C to +80Â°C. - Corrosive environments: replace galvanized screws and carbon steel base with stainless steel (typically A2/304 or A4/316) to provide superior corrosion resistance, especially for marine or chemical exposures. - Availability: stainless screws and stainless bases (or complete stainless mounting plates/rails) are available as extended/optional components and should be ordered as part of the clamp set. - Specification & compatibility: consult TUBES INTERNATIONALÂ® to confirm material grades (A2 vs A4), verify mechanical strength, and ensure the rubber compound and any adhesive/bonded joints are compatible with the selected stainless mounting hardware and the specific corrosive conditions. - Mounting method: welding of carbon steel bases is standard; if stainless bases are chosen, welding/installation procedures and mounting options (bolting or rail mounting) should be reviewed with the supplier. Recommendation: Contact TUBES INTERNATIONALÂ® with project details (environment, exposure, required stainless grade, clamp size group) to obtain a formal offer and confirmation of availability.

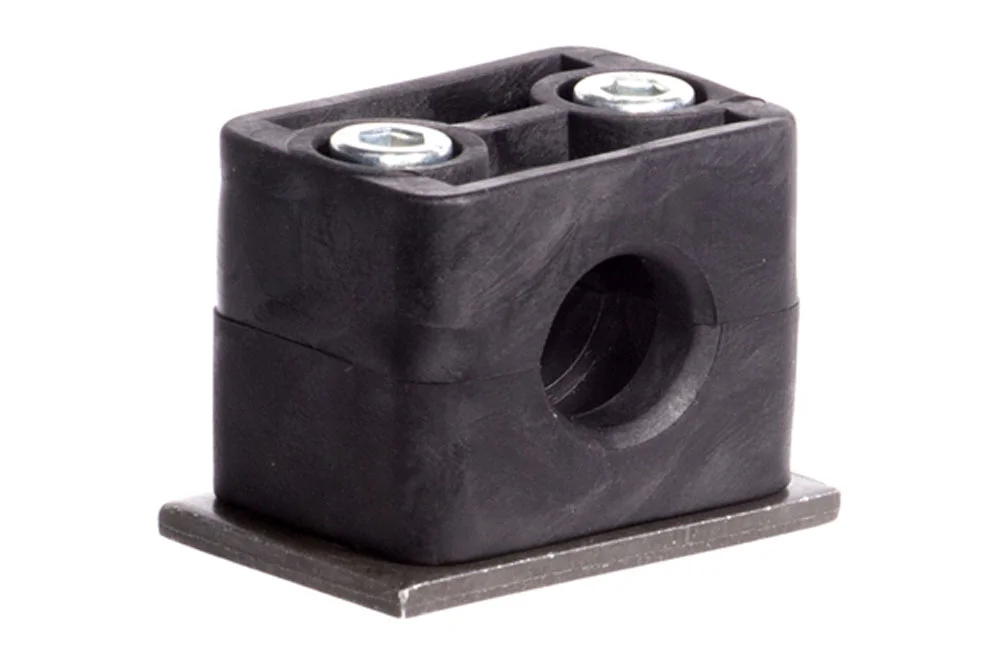

Clamp DIN 3015 standard, rubber, type 100

All products, Clamps for hydraulic pipes/

Additional information

Material	P – material (plastic)
Standard length [m]	10, 2, 60 / 120

DIN 3015 standard clamp type 100 (without top plate) designed for quick, easy, durable, and aesthetic mounting of pipes, hoses, and hoses in various industrial sectors, in ground and marine installations. Manufactured according to DIN 3015 standard. The clamp is mounted to the structure using welding of the clamp base (there is an option for bolting or mounting on a rail). The clamp typically features a profiled (grooved) surface for the pipe opening. For size group 0, there is one hexagon socket screw, and for size groups 1 to 6, there are two hexagon socket screws. In addition to standard metal components, extended plates, rails, and screws for mounting clamp sets can be ordered. Selection of components should be consulted with TUBES INTERNATIONAL®. Clamp material: rubber. Screw material: galvanized steel. Base material: carbon steel. Operating temperature: from -40°C to +80°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TC-RB100-106	DIN3015 standard RB clamp for 6 mm pipe, without mounting.	-	-	In stock	Enquiry
TC-RB100-106,4	DIN3015 standard RB clamp for 6.4 mm pipe, without rubber lining.	-	-	In stock	Enquiry
TC-RB100-108	DIN3015 standard RB clamp for 8 mm pipe, without rubber lining.	-	-	In stock	Enquiry
TC-RB100-109,5	DIN3015 standard RB clamp for 9.5 mm pipe, without rubber lining.	-	-	In stock	Enquiry
TC-RB100-110	DIN3015 standard RB clamp for 10 mm pipe, without mounting hardware.	-	-	In stock	Enquiry
TC-RB100-112	DIN3015 standard RB clamp for 12 mm pipe, without rubber lining.	-	-	In stock	Enquiry
TC-RB100-212,7	DIN3015 standard RB clamp for 12.7 mm pipe, without rubber lining.	-	-	In stock	Enquiry
TC-RB100-213,5	DIN3015 standard RB clamp for 13.5 mm pipe, without rubber lining.	-	-	In stock	Enquiry
TC-RB100-214	DIN3015 standard RB clamp for 14 mm pipe, without rubber lining.	-	-	In stock	Enquiry
TC-RB100-215	DIN3015 standard RB clamp for 15 mm pipe, without rubber lining.	-	-	In stock	Enquiry
TC-RB100-216	DIN3015 standard RB clamp for 16 mm pipe, without rubber lining.	-	-	In stock	Enquiry
TC-RB100-217,2	DIN3015 standard RB clamp for 17.2 mm pipe, without rubber lining.	-	-	In stock	Enquiry
TC-RB100-218	DIN3015 standard RB clamp for 18 mm pipe, without rubber lining.	-	-	In stock	Enquiry
TC-RB100-219	DIN3015 standard RB clamp for 19 mm pipe, without rubber lining.	-	-	In stock	Enquiry
TC-RB100-319	DIN3015 standard RB clamp for 19 mm pipe, without rubber lining.	-	-	In stock	Enquiry
TC-RB100-320	DIN3015 standard RB clamp for 20 mm pipe, without rubber lining.	-	-	In stock	Enquiry
TC-RB100-321,3	DIN3015 standard RB clamp for a 21.3 mm pipe, without rubber lining.	-	-	In stock	Enquiry
TC-RB100-322	DIN3015 standard RB clamp for 22 mm pipe, without rubber lining.	-	-	In stock	Enquiry
TC-RB100-325	DIN3015 standard RB clamp for 25 mm pipe, without rubber lining.	-	-	In stock	Enquiry
TC-RB100-325,4	DIN3015 standard RB clamp for 25.4 mm pipe, without rubber lining.	-	-	In stock	Enquiry
TC-RB100-426,9	DIN3015 standard RB clamp for 26.9 mm pipe, without rubber lining.	-	-	In stock	Enquiry
TC-RB100-428	DIN3015 standard RB clamp for 28 mm pipe, without rubber lining.	-	-	In stock	Enquiry
TC-RB100-430	DIN3015 standard RB clamp for 30 mm pipe, without rubber lining.	-	-	In stock	Enquiry
TC-RB100-432	DIN3015 standard RB clamp for 32 mm pipe, without rubber lining.	-	-	In stock	Enquiry
TC-RB100-532	DIN3015 standard RB clamp for 32 mm pipe, without rubber lining.	-	-	In stock	Enquiry
TC-RB100-533,7	DIN3015 standard RB clamp for 33.7 mm pipe, without rubber lining.	-	-	In stock	Enquiry
TC-RB100-535	DIN3015 standard RB clamp for 35 mm pipe, without rubber lining.	-	-	In stock	Enquiry
TC-RB100-538	DIN3015 standard RB clamp for 38 mm pipe, without rubber lining.	-	-	In stock	Enquiry
TC-RB100-540	DIN3015 standard RB clamp for 40 mm pipe, without p. g.	-	-	In stock	Enquiry
TC-RB100-542	DIN3015 standard RB clamp for 42 mm pipe, without p. g.	-	-	In stock	Enquiry
TC-RB100-542,4	DIN3015 standard clamp RB for a 42.4 mm pipe, without rubber lining.	-	-	In stock	Enquiry
TC-RB100-545	DIN3015 standard RB clamp for 45 mm pipe, without rubber lining.	-	-	In stock	Enquiry
TC-RB100-644,5	DIN3015 standard RB clamp for 44.5 mm pipe, without rubber lining.	-	-	In stock	Enquiry
TC-RB100-648,3	DIN3015 standard RB clamp for 48.3 mm pipe, without rubber lining.	-	-	In stock	Enquiry
TC-RB100-650,8	DIN3015 standard clamp RB for pipe 50.8 mm, without p. g.	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

DIN 3015 standard clamp type 100 (without top plate) designed for quick, easy, durable, and aesthetic mounting of pipes, hoses, and hoses in various industrial sectors, in ground and marine installations. Manufactured according to DIN 3015 standard. The clamp is mounted to the structure using welding of the clamp base (there is an option for bolting or mounting on a rail). The clamp typically features a profiled (grooved) surface for the pipe opening. For size group 0, there is one hexagon socket screw, and for size groups 1 to 6, there are two hexagon socket screws. In addition to standard metal components, extended plates, rails, and screws for mounting clamp sets can be ordered. Selection of components should be consulted with TUBES INTERNATIONAL®. Clamp material: rubber. Screw material: galvanized steel. Base material: carbon steel. Operating temperature: from -40°C to +80°C.
