Is the Coupling gasket DIN 32676, PTFE suitable for continuous use between -200Â°C and +260Â°C?

Yes. Coupling gasket DIN 32676, PTFE is suitable for continuous use in the temperature range from â200Â°C to +260Â°C. PTFE (Teflon) maintains chemical stability and sealing performance across this range, resisting thermal degradation, embrittlement at very low temperatures and softening at high temperatures typical for PTFE. Ensure proper gland design and compression to maintain seal integrity; also verify compatibility with specific chemicals and pressures in your application.

Can the Coupling gasket DIN 32676, PTFE withstand repeated thermal cycling between -200Â°C and +260Â°C?

Coupling gasket DIN 32676, PTFE Format: PTFE (Teflon) has an operating temperature range listed from -200Â°C to +260Â°C, so in principle the material can tolerate those temperatures. However, repeated thermal cycling across such a wide span can affect gasket performance: PTFE is chemically and thermally stable and resistant to embrittlement at low temps, but it has relatively low creep resistance and can experience cold flow, dimensional changes, and loss of elastomeric sealing force over cycles. Seal reliability will depend on gasket design, flange compression, surface finish, frequency and rate of cycling, presence of mechanical restraints, and process media. For critical applications, validate with application-specific tests or choose a gasket/retainer design rated for repeated cryogenic-to-high-temperature cycling.

Does the Coupling gasket DIN 32676, PTFE maintain sealing integrity after prolonged exposure at -200Â°C to +260Â°C?

Yes. The Coupling gasket DIN 32676, PTFE maintains sealing integrity across the specified operating range of -200Â°C to +260Â°C when used within its design limits and appropriate application conditions. Reasons: - PTFE (Teflon) exhibits excellent chemical and thermal stability over a very wide temperature range. Its physical and chemical resistance prevents degradation from thermal cycling and most process media encountered in hygienic and sanitary piping systems. - At low temperatures down to -200Â°C PTFE remains dimensionally stable and retains flexibility sufficient to maintain a seal when compressed properly in a flange/gasket interface; it does not become brittle in typical cryogenic service within this limit. - At high temperatures up to +260Â°C PTFE preserves its mechanical integrity and chemical resistance; while the material softens relative to ambient temperature, proper gasket design and correct compression in the coupling prevent extrusion and loss of sealing efficiency. - Long-term performance depends on correct installation (surface finish, bolt torque, gland design), avoidance of excessive mechanical stress or extrusion gaps, and compatibility with the process media and pressure. For dynamic or high-pressure cyclic service, consult engineering guidance, as creep and cold flow are material behaviors that can affect long-term sealing under sustained high stress. Conclusion: When installed and used according to recommended flange and coupling parameters, the Coupling gasket DIN 32676, PTFE provides reliable sealing integrity throughout the -200Â°C to +260Â°C range.

Gasket coupling DIN 32676, PTFE

All products, Hygienic stainless steel couplings/

Additional information

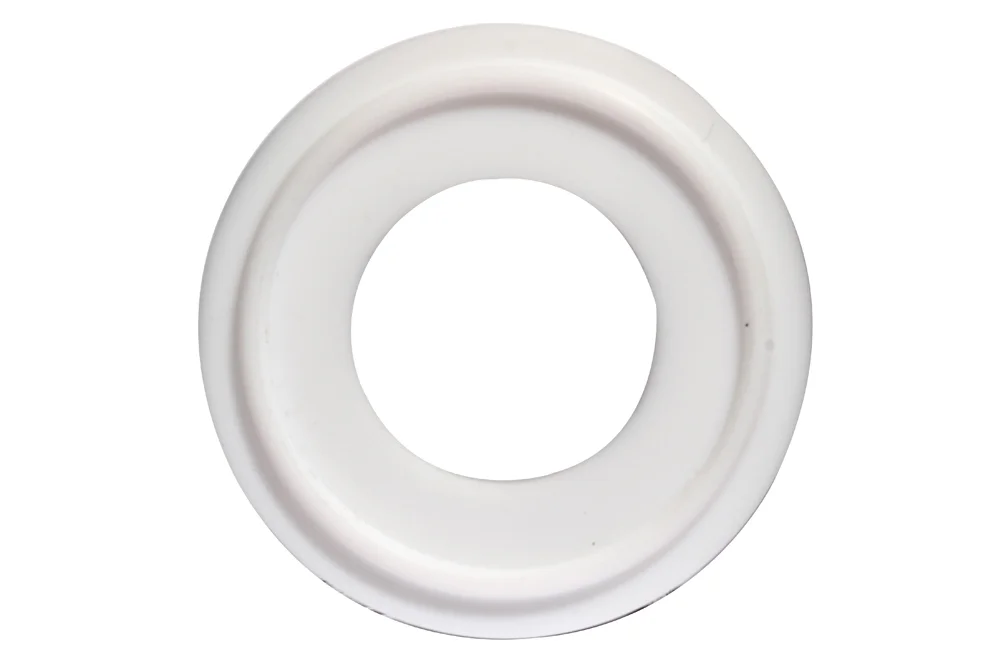

A TRICLOVER gasket for a DIN 32676. Operating temperature: from -200°C to +260°C. Material: PTFE – teflon.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
NH-TUP-034-010	Gasket TRICLOVER DN10 for a flange 34 mm, PTFE	-	-	In stock	Enquiry
NH-TUP-034-015	Gasket TRICLOVER DN15 for a flange 34 mm, PTFE	-	-	In stock	Enquiry
NH-TUP-034-020	Gasket TRICLOVER DN20 for a flange 34 mm, PTFE	-	-	In stock	Enquiry
NH-TUP-050-025	Gasket TRICLOVER DN25 for a flange 50 mm, PTFE	-	-	In stock	Enquiry
NH-TUP-050-032	Gasket TRICLOVER DN32 for a flange 50 mm, PTFE	-	-	In stock	Enquiry
NH-TUP-050-038	Gasket TRICLOVER DN38 for a flange 50 mm, PTFE	-	-	In stock	Enquiry
NH-TUP-064-050	Gasket TRICLOVER DN50 for a flange 64 mm, PTFE	-	-	In stock	Enquiry
NH-TUP-091-065	Gasket TRICLOVER DN65 for a flange 91 mm, PTFE	-	-	In stock	Enquiry
