Is the TRICLOVER clamp for flange end, stainless steel compatible with standard Tri-Clamp (Tri-Clover) ferrules and gaskets?

Yes. The TRICLOVER clamp for flange end, stainless steel is compatible with standard TriâClamp (TriâClover) ferrules and gaskets. Made to the same sanitary dimensions and tolerances as industryâstandard TriâClamp fittings, the stainless steel clamp secures two matching ferrules together and compresses a compatible gasket (typically EPDM, PTFE, silicone, or bunaâN) to form a leakâfree, hygienic seal. Ensure you use ferrules and gaskets that match the clampâs nominal size and material compatibility for optimal sealing, corrosion resistance, and sanitary performance.

Can the TRICLOVER clamp for flange end, stainless steel be used in high-pressure sanitary piping systems?

Yes - the TRICLOVER clamp for flange end, stainless steel can be used in high-pressure sanitary piping systems, but only if its specific size, pressure rating and gasket compatibility meet the systemâs requirements. Stainless steel construction provides good strength, corrosion resistance and sanitary cleanliness suitable for food, pharma and biotech applications. For high-pressure use verify: the clampâs rated working pressure, flange/gasket type (material and profile), proper bolt torque, and compliance with applicable standards. If ratings are not documented for your pressure range, choose a clamp and gasket assembly rated for that pressure or consult the manufacturer/engineering to ensure safe service.

Can the TRICLOVER clamp for flange end, stainless steel be autoclaved for sterilization without degrading performance?

Yes. the TRICLOVER clamp for flange end, stainless steel can generally be autoclaved for sterilization without degrading performance, provided a few conditions are met. Why itâs suitable: - Stainless steel is widely used for autoclave-compatible hardware because it resists corrosion, withstands repeated high-temperature (typically 121â134 Â°C) and high-pressure cycles, and maintains mechanical strength. - TRICLOVER clamp designs are simple, robust, and have no sensitive electronics or coatings that would be damaged by steam sterilization. Recommendations to preserve performance: - Material verification: confirm the clamp is made from an autoclave-grade stainless steel (e.g., 304 or 316). 316 stainless offers superior corrosion resistance in aggressive or repeated-sterilization environments. - Clean first: remove all product residues, biofilms, or particulates before autoclaving, as trapped contaminants can promote corrosion or interfere with sealing surfaces. - Disassemble if applicable: if the clamp has removable gaskets or non-metal parts, remove them unless they are explicitly rated for autoclaving. Silicone gaskets often tolerate autoclaving; EPDM, Viton, or other elastomers vary. - Drying and storage: after autoclaving, dry thoroughly and store in a clean, dry environment to avoid spotting or corrosion. - Inspection and maintenance: periodically inspect for pitting, deformation, or thread wear; lubricate threads with a high-temperature, food- or pharma-grade lubricant if recommended. - Compatibility with gaskets and process: ensure the gasket and mating flange materials are also autoclave-compatible to maintain overall assembly integrity. If you need absolute assurance for a critical application, verify the specific clampâs alloy grade and manufacturerâs guidance or test a sample through your autoclave cycles.

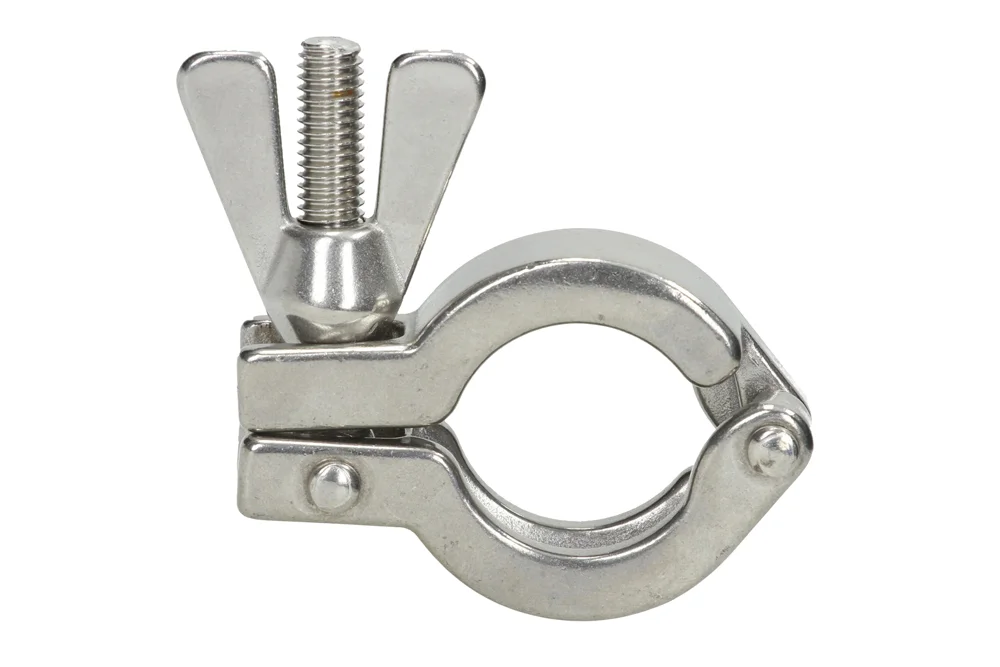

A clamp TRICLOVER for a fitting flange, steel stainless

All products, Hygienic stainless steel couplings/

Additional information

Material	SS – stainless steel

A clamp TRICLOVER for a fitting flange. Material: steel stainless.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
NH-TO-025	Clamp TRICLOVER for a flange 25 mm	-	-	In stock	Enquiry
NH-TO-034	Clamp TRICLOVER for a flange 34 mm	-	-	In stock	Enquiry
NH-TO-050	Clamp TRICLOVER for a flange 50.5 mm	-	-	In stock	Enquiry
NH-TO-064	Clamp TRICLOVER for a flange 64 mm	-	-	In stock	Enquiry
NH-TO-077	Clamp TRICLOVER for a flange 77.5 mm	-	-	In stock	Enquiry
NH-TO-091	Clamp TRICLOVER for a flange 91 mm	-	-	In stock	Enquiry
NH-TO-106	Clamp TRICLOVER for a flange 106 mm	-	-	In stock	Enquiry
NH-TO-119	Clamp TRICLOVER for a flange 119 mm	-	-	In stock	Enquiry
NH-TO-130	Clamp TRICLOVER for a flange 130 mm	-	-	In stock	Enquiry
