Is the DIN quick connector plug for agricultural machinery with GW BSP, type V compatible with ISOâA HQâIA12âMâ08G quick couplings?

Yes . the DIN quick connector plug for agricultural machinery with GW BSP, type V is compatible with the ISOâA HQâIA12âMâ08G quick coupling in the 1/2" size. The provided description explicitly states the 1/2" quick coupling is compatible with the ISOâA standard quick coupling index HQâIA12âMâ08G. Both use a mushroom (male) valve style and internal BSP thread, are specified for agricultural machinery, and share materials and sealing (galvanized steel, NBR), operating temperature range (â25Â°C to +100Â°C) and working pressures (up to 375 bar depending on size), so they will mate and function correctly when sized as 1/2".

Does the DIN quick connector plug for agricultural machinery with GW BSP, type V require special maintenance or lubrication?

DIN quick connector plug for agricultural machinery with GW BSP, type V does not require special maintenance beyond standard best practices for hydraulic quick couplings. Recommended care: - Regular visual inspection for corrosion, wear or damage (galvanized steel body) and for hardened or cracked NBR seals. - Keep mating surfaces and valve faces clean and free of dirt/contaminants before coupling to avoid seal damage. - Periodic lubrication of external moving parts with a compatible light hydraulic oil or grease to ease operation (avoid petroleum-based products that can degrade NBR); do not over-lubricate internal sealing faces. - Replace seals if hardened or leaking; follow manufacturer intervals based on operating conditions. - Operate within specified temperature range (â25Â°C to +100Â°C), pressure limits (up to 375 bar depending on size) and flow specs to prevent accelerated wear. No special or unusual maintenance or exotic lubricants are required.

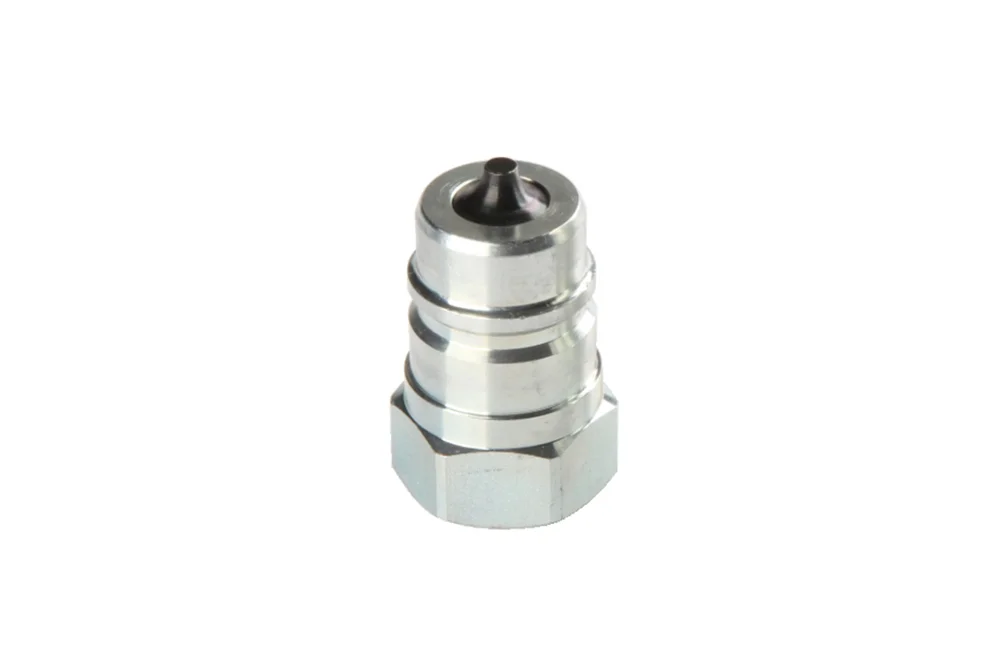

DIN quick connector plug for agricultural machinery with GW BSP, type V

Q: Can the DIN quick connector plug for agricultural machinery with GW BSP, type V be used with NBR seals at +100Â°C?

Yes. the DIN quick connector plug for agricultural machinery with GW BSP, type V can be used with NBR seals at +100Â°C, but with caveats. Why: The product specification lists NBR (nitrile rubber) seals and an operating temperature range of â25Â°C to +100Â°C, so +100Â°C falls at the upper limit of the declared operating range. Caveats and practical considerations: - NBR at +100Â°C is at its maximum rated temperature; long-term exposure at this temperature can accelerate hardening, loss of elasticity and reduced sealing life. Expect shorter service life versus lower temperatures. - Compatibility with hydraulic fluids: NBR is generally compatible with mineral oils and many hydraulic fluids, but check the specific fluid used on the machine for chemical compatibility at elevated temperature. - Pressure and dynamic conditions: The specified working pressure (up to 375 bar depending on size) and flow ratings assume the stated temperature range. High pressure plus high temperature increases stress on seals; monitor for leaks and reduced performance. - Application duty cycle: Intermittent exposure to +100Â°C is less damaging than continuous operation. Consider replacing seals more frequently or using a higher-temperature elastomer (e.g., FKM/Viton) if continuous high-temperature service is expected. Recommendation: You may use the DIN quick connector plug for agricultural machinery with GW BSP, type V with NBR seals at +100Â°C for short-term or intermittent exposure, but for continuous high-temperature service or critical applications, consider higher-temperature seal materials and perform regular inspections.

All products, Hydraulic quick couplings/

Additional information

Material	CS – steel (cast iron)

DIN type V quick coupling plug with mushroom valve and internal BSP thread. The 1/2″ quick coupling is compatible with the ISO-A standard quick coupling index HQ-IA12-M-08G. Mainly used in agricultural machinery. Material: galvanized steel. Operating temperature: from -25°C to +100°C. Sealing: NBR. Working pressure: up to 375 bar (depending on the size of the quick coupling). Flow is specified for a pressure drop of 3 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HQ-DINV06-M-04G	DINV DN6 plug with 1/4" BSP female thread	-	375	In stock	Enquiry
HQ-DINV10-M-06G	DINV DN10 plug with 3/8" BSP female thread	-	350	In stock	Enquiry
HQ-DINV19-M-12G	DINV plug DN19 with 3/4" BSP female thread	-	300	In stock	Enquiry
HQ-DINV25-M-16G	DINV DN25 plug with 1" BSP female thread	-	275	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

DIN type V quick coupling plug with mushroom valve and internal BSP thread. The 1/2″ quick coupling is compatible with the ISO-A standard quick coupling index HQ-IA12-M-08G. Mainly used in agricultural machinery. Material: galvanized steel. Operating temperature: from -25°C to +100°C. Sealing: NBR. Working pressure: up to 375 bar (depending on the size of the quick coupling). Flow is specified for a pressure drop of 3 bar.
