Can the Socket DN 13 quick coupling with hose end, TST 190 series, brass handle hot oil or steam at its rated temperature up to +200Â°C?

Yes. The Socket DN 13 quick coupling with hose end, TST 190 series, brass is specified for operating temperatures from -20Â°C to +200Â°C (with Viton seals) and is described as suitable for use with hot oil and steam. With a flow diameter of 13 mm, working pressure up to 25 bar, and brass body plus stainless steel internal parts, it is designed for those applications at its rated temperature.provided the sealing material is Viton and the system pressure and media compatibility (including any additives or pressures specific to your process) are within the stated limits.

Is the Socket DN 13 quick coupling with hose end, TST 190 series, brass suitable for use with steam at 10 bar?

Yes. The Socket DN 13 quick coupling with hose end, TST 190 series, brass is suitable for steam at 10 bar. Its specifications list steam compatibility, a working pressure of 25 bar (well above 10 bar), and an operating temperature range up to +200Â°C (Viton), which covers typical saturated steam conditions at 10 bar. Materials (brass body/connection/valve sleeve and stainless steel spring/ring/balls) are appropriate for steam service. Ensure compatible seal material (Viton) and verify actual steam temperature/condensate conditions in your system before use.

Does the Socket DN 13 quick coupling with hose end, TST 190 series, brass require special seals for hot oil use?

NoâSocket DN 13 quick coupling with hose end, TST 190 series, brass does not require special seals for hot oil use beyond the standard Viton seals specified. The product description states it can be used for hot oil and lists an operating temperature range of -20Â°C to +200Â°C (Viton), which covers typical hot-oil application temperatures. Materials (brass body, stainless steel spring/ring/balls) and the Viton seal are suitable for oil service and the stated working pressure of 25 bar. Notes: - Ensure the actual oil temperature and any additives stay within Vitonâs chemical compatibility and the stated +200Â°C limit. - For oils or additives outside Viton compatibility, or continuous temperatures near the upper limit, consider consulting the manufacturer for alternative seal materials or special seals.

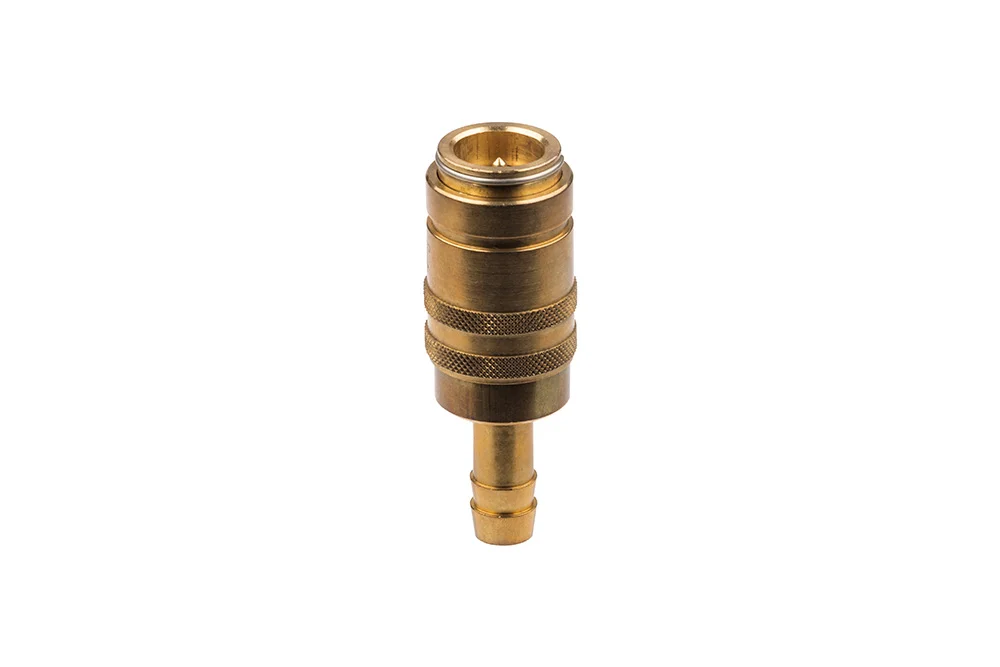

Socket DN 13 quick coupling with hose end, TST 190 series, brass

Additional information

Material	B – brass (bronze)

DN 13 quick coupling socket with hose end, with or without valve. Widely used in the industry for cooling injection molds and casting parts made of plastics, aluminum, brass, and zinc alloys. Can be used for water in cleaning machines, hot oil, steam. Flow diameter: 13 mm. Working pressure: 25 bar. Operating temperature: from -20°C to +200°C (viton). Material: brass (socket body, connection, valve sleeve), stainless steel (spring, ring, balls).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
FW-CSK190-19	DN 13 socket with 19 mm hose end, with valve	20	25	In stock	0 zł		Enquiry
FW-SK190-19	DN 13 socket with end for 19 mm hose, without valve	20	25	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

DN 13 quick coupling socket with hose end, with or without valve. Widely used in the industry for cooling injection molds and casting parts made of plastics, aluminum, brass, and zinc alloys. Can be used for water in cleaning machines, hot oil, steam. Flow diameter: 13 mm. Working pressure: 25 bar. Operating temperature: from -20°C to +200°C (viton). Material: brass (socket body, connection, valve sleeve), stainless steel (spring, ring, balls).
