Can the Socket DN 6 quick coupling with PUSH-ON hose end, TST 060 series, brass be used with hot oil and steam at 200Â°C and 25 bar?

Yes . the Socket DN 6 quick coupling with PUSH-ON hose end, TST 060 series, brass can be used with hot oil and steam at 200Â°C and 25 bar. The product specification explicitly lists suitability for hot oil and steam, a working pressure of 25 bar and an operating temperature range up to +200Â°C (with Viton seals). Materials (brass body/connection/valve sleeve and stainless steel spring/ring/balls) are compatible with such media under these conditions. Important notes you should verify before use: - Ensure the actual seal material in your specific unit is Viton (FKM), since the +200Â°C limit assumes Viton; other seal compounds may have lower temperature limits. - Confirm chemical compatibility of brass and Viton with the specific oil or steam contaminants in your application. - For safety and longevity, validate connection integrity, thermal cycling effects, and any industry standards required for your system.

Is the Socket DN 6 quick coupling with PUSH-ON hose end, TST 060 series, brass compatible with saline or chemical cleaning solutions?

Socket DN 6 quick coupling with PUSH-ON hose end, TST 060 series, brass: The product description indicates compatibility with water (including in cleaning machines), hot oil and steam, operating materials brass and stainless steel, Viton seal rated -20Â°C to +200Â°C, working pressure 25 bar. This suggests good chemical resistance to many aqueous and oily cleaning agents and to steam. However, compatibility with specific saline solutions or aggressive chemical cleaners (strong acids, alkalis, oxidizers, chlorinated solvents) cannot be guaranteed without manufacturer chemical resistance data. Saline (dilute salt solutions) and mild alkaline or neutral detergents are likely acceptable; concentrated salts, strong acids/alkalis or bleaches may corrode brass or attack seals. For assured safety, verify with the manufacturer or provide the exact chemical (concentration, temperature) for a definitive compatibility assessment.

Does the Socket DN 6 quick coupling with PUSH-ON hose end, TST 060 series, brass require periodic lubrication or maintenance to ensure valve reliability?

Socket DN 6 quick coupling with PUSH-ON hose end, TST 060 series, brass does not normally require frequent lubrication for standard operation. Materials (brass body, stainless-steel spring, ring and balls, Viton seals) are selected for durability and compatibility with water, hot oil and steam up to 200Â°C. However, to ensure long-term valve reliability and prevent issues from contamination or harsh environments, follow these recommendations: - Inspection interval: visually inspect and cycle the coupling periodically (e.g., monthly or per maintenance schedule) to check for leaks, corrosion, wear or seal degradation. - Cleaning: flush internal passages if used with dirty fluids or particulates to prevent buildup that can impede valve seating. - Lubrication: occasional light lubrication of moving parts is acceptable if compatible with service fluid and Viton sealsâuse a high-temperature, water- and oil-compatible lubricant recommended for Viton (silicone- or PFPE-based lubricants are common). Do not use petroleum-based greases that can damage seals. - Seal replacement: replace seals if hardened, cracked or leaking; Viton seals are rated for â20Â°C to +200Â°C but will age under high temperature or aggressive fluids. - Corrosive service: for aggressive fluids or steam at high temperature, increase inspection frequency and consider targeted maintenance (cleaning, spring/ball replacement) sooner. In summary: no routine heavy lubrication is required for normal usage, but periodic inspection, cleaning when needed, and compatible light lubrication or seal replacement will ensure reliable valve operation.

Socket DN 6 quick coupling with PUSH-ON hose end, TST 060 series, brass

Additional information

Material	B – brass (bronze)

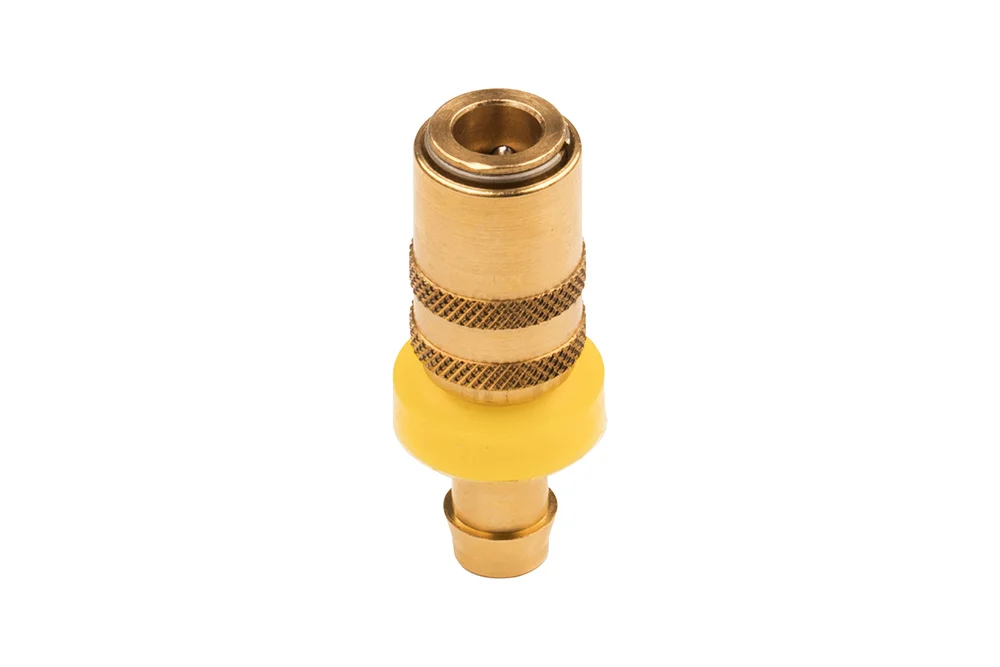

DN 6 quick coupling socket with “tail” for PUSH-ON hose, with or without valve, widely used in the industry for cooling injection molds and casting parts made of plastics, aluminum, brass, and zinc alloys. It can be used for water in cleaning machines, hot oil, and steam. Flow diameter: 6 mm. Working pressure: 25 bar. Operating temperature: from -20°C to +200°C (viton). Material: brass (socket body, connection, valve sleeve), stainless steel (spring, ring, balls).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
FW-CSK060-FG06	DN 6 socket with end for PUSH-ON hose 6.7 mm, with valve	6	25	In stock	Enquiry
FW-CSK060-FG10	DN 6 socket with end for PUSH-ON 10 mm hose, with valve	10	25	In stock	Enquiry
FW-SK060-FG06	DN 6 socket with end for PUSH-ON hose 6.7 mm, without valve	6	25	In stock	Enquiry
FW-SK060-FG10	DN 6 socket with end for PUSH-ON hose 10 mm, without valve	10	25	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

DN 6 quick coupling socket with “tail” for PUSH-ON hose, with or without valve, widely used in the industry for cooling injection molds and casting parts made of plastics, aluminum, brass, and zinc alloys. It can be used for water in cleaning machines, hot oil, and steam. Flow diameter: 6 mm. Working pressure: 25 bar. Operating temperature: from -20°C to +200°C (viton). Material: brass (socket body, connection, valve sleeve), stainless steel (spring, ring, balls).
