Can the Socket DN 6 quick connector with male thread, TST 060 series, brass, be used with steam up to 200Â°C and 25 bar?

Yes. Socket DN 6 quick connector with male thread, TST 060 series, brass can be used with steam up to 200Â°C and 25 bar. The product specification lists steam among applicable media, a working pressure of 25 bar and an operating temperature range up to +200Â°C (with Viton), and construction materials (brass body, stainless steel spring/balls) suitable for such conditions. Ensure compatibility of any mating components, seals and system safety measures for steam service at that temperature and pressure.

Is the Socket DN 6 quick connector with male thread, TST 060 series, brass suitable for circulating hot oil at 200Â°C and 25 bar?

Yes. Socket DN 6 quick connector with male thread, TST 060 series, brass is rated for working pressure up to 25 bar and an operating temperature range up to +200Â°C (with Viton seals) and is specified for hot oil service. Materials (brass body, stainless steel internals) and the stated compatibility (water, hot oil, steam) indicate it is suitable for circulating hot oil at 200Â°C and 25 bar, provided Viton seals are fitted and the oil and system do not introduce incompatible chemicals or pressures/temperatures beyond those limits.

Does the Socket DN 6 quick connector with male thread, TST 060 series, brass support use with hot water in cleaning machines at 25 bar?

Yes. The Socket DN 6 quick connector with male thread, TST 060 series, brass supports use with hot water in cleaning machines at 25 bar. The product description explicitly states it can be used for water in cleaning machines, hot oil, and steam; it has a working pressure of 25 bar and an operating temperature range up to +200Â°C (with Viton), and is constructed of brass with stainless steel internal partsâsuitable for hot water applications at the specified pressure and temperatures.

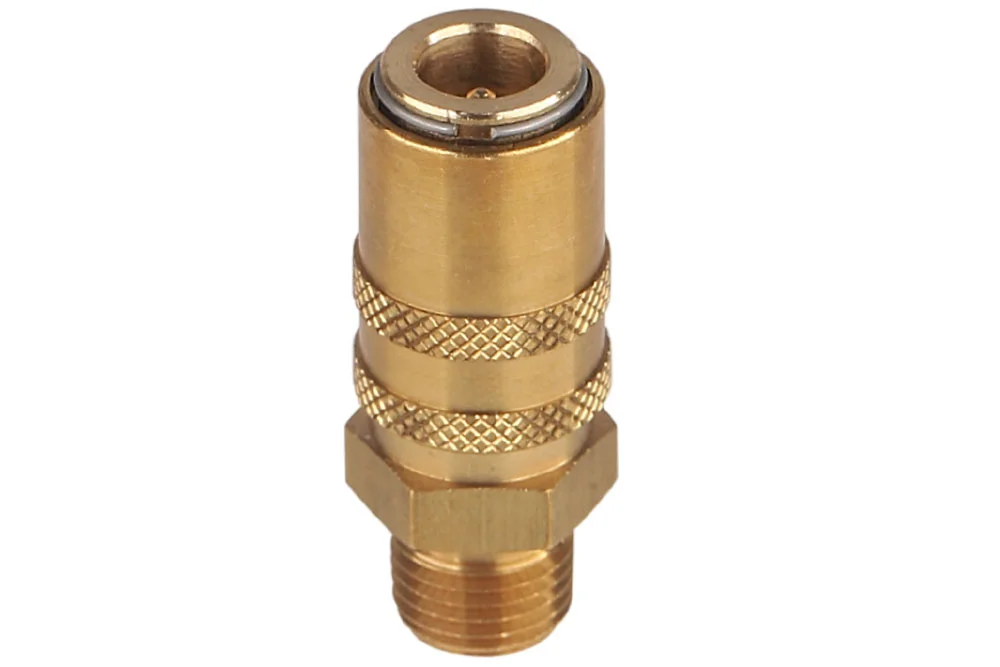

Socket DN 6 quick connector with male thread, TST 060 series, brass

Additional information

Material	B – brass (bronze)

DN 6 quick coupling socket with external BSP and metric thread (60° cone), with or without valve, widely used in the industry for cooling injection molds and casting parts made of plastics, aluminum, brass, and zinc alloys. It can be used for water in cleaning machines, hot oil, and steam. Flow diameter: 6 mm. Working pressure: 25 bar. Operating temperature: from -20°C to +200°C (Viton). Material: brass (socket body, connection, valve sleeve), stainless steel (spring, ring, balls).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
FW-CSK060-EG13	Socket DN 6 with GZ 1/4" BSP, 60° cone, with valve	-	25	In stock	Enquiry
FW-CSK060-EG17	Socket DN 6 with GZ 3/8" BSP, 60° cone, with valve	-	25	In stock	Enquiry
FW-CSK060-EGM10	Socket DN 6 with GZ M10x1, 60° cone, with valve	-	25	In stock	Enquiry
FW-CSK060-EGM14	Socket DN 6 with GZ M14x1.5, 60° cone, with valve	-	25	In stock	Enquiry
FW-SK060-EG13	Socket DN 6 with GZ 1/4" BSP, 60° cone, without valve	-	25	In stock	Enquiry
FW-SK060-EG17	Socket DN 6 with GZ 3/8" BSP, 60° cone, without valve	-	25	In stock	Enquiry
FW-SK060-EGM10	Socket DN 6 with GZ M10x1, 60° cone, without valve	-	25	In stock	Enquiry
FW-SK060-EGM14	Socket DN 6 with GZ M14x1.5, 60° cone, without valve	-	25	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

DN 6 quick coupling socket with external BSP and metric thread (60° cone), with or without valve, widely used in the industry for cooling injection molds and casting parts made of plastics, aluminum, brass, and zinc alloys. It can be used for water in cleaning machines, hot oil, and steam. Flow diameter: 6 mm. Working pressure: 25 bar. Operating temperature: from -20°C to +200°C (Viton). Material: brass (socket body, connection, valve sleeve), stainless steel (spring, ring, balls).
