Is the Socket DN 9 quick coupling with PUSH-ON hose end, TST 090 series, brass suitable for steam at 200Â°C and 25 bar?

Yes. The Socket DN 9 quick coupling with PUSH-ON hose end, TST 090 series, brass is suitable for steam at 200Â°C and 25 bar. The product specifications explicitly list steam among applicable media, a working pressure of 25 bar, and an operating temperature range up to +200Â°C (with Viton seals). Materials (brass body and stainless-steel internal parts) and the stated ratings indicate compatibility for the stated steam conditions. Ensure that seal compatibility (Viton) and the systemâs transient conditions (thermal shocks, water hammer) are acceptable for your application and follow applicable safety standards and installation recommendations.

Can the Socket DN 9 quick coupling with PUSH-ON hose end, TST 090 series, brass be used with hot oil up to 200Â°C and 25 bar?

Yes. Socket DN 9 quick coupling with PUSH-ON hose end, TST 090 series, brass can be used with hot oil up to 200Â°C at 25 bar. The product specification explicitly lists hot oil and steam among suitable media, a working pressure of 25 bar, and an operating temperature range of -20Â°C to +200Â°C when fitted with Viton seals. Ensure the coupling has Viton seals installed and verify compatibility with your specific oil type and system conditions (thermal cycling, additives) before use.

Can the Socket DN 9 quick coupling with PUSH-ON hose end, TST 090 series, brass be used for circulating coolant in injection molding machines?

Yes. The Socket DN 9 quick coupling with PUSH-ON hose end, TST 090 series, brass is suitable for circulating coolant in injection molding machines. The product description explicitly states it is widely used in the industry for cooling injection molds and casting parts of plastics, aluminum, brass and zinc alloys. Key technical points that support use as a coolant line: - Flow diameter 9 mm. suitable for typical mold cooling circuits. - Working pressure 25 bar. well above pressures normally encountered in coolant circulation. - Operating temperature range -20Â°C to +200Â°C (Viton). covers common coolant temperatures and many hot-oil/steam cleaning cases. - Materials. brass body and stainless-steel internal parts provide corrosion resistance compatible with water-based coolants and many glycol blends; Viton seals extend chemical and temperature compatibility. - Available with or without valve and PUSH-ON hose-tail makes installation straightforward on hose lines used in molding shops. Notes/precautions: ensure coolant chemistry (e.g., high-concentration glycols, inhibitors, additives) is compatible with brass and Viton; verify hose inner diameter and pressure rating match the coupling; if steam or hot oil at high temperatures/pressures will be used, confirm the specific seal variant and system limits.

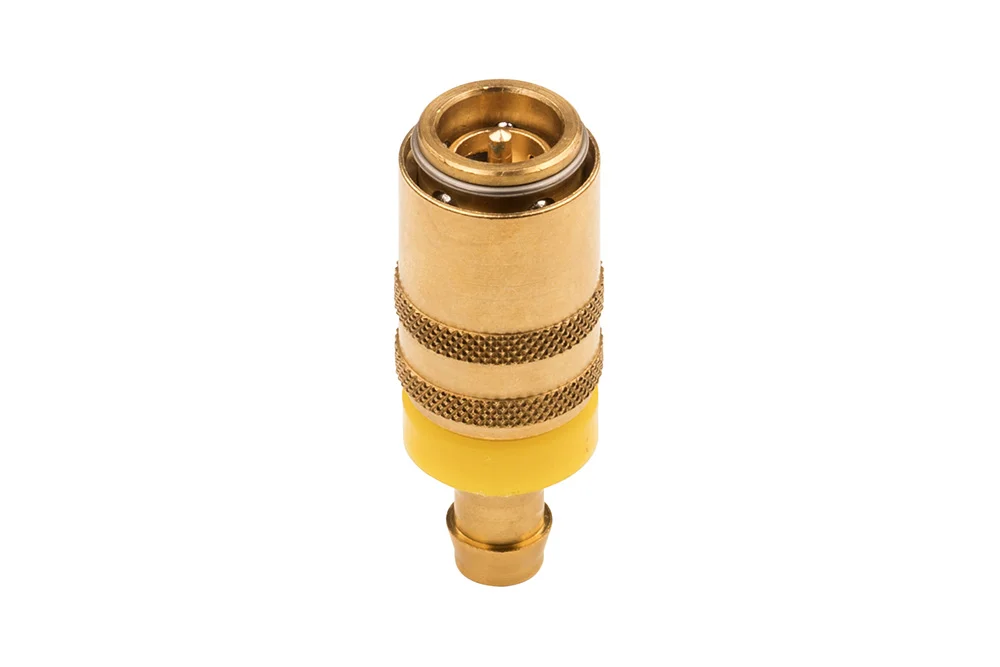

Socket DN 9 quick coupling with PUSH-ON hose end, TST 090 series, brass

Additional information

Material	B – brass (bronze)

DN 9 quick coupling socket with “tail” for PUSH-ON hose, with or without valve, widely used in the industry for cooling injection molds and casting parts made of plastics, aluminum, brass, and zinc alloys. It can be used for water in cleaning machines, hot oil, and steam. Flow diameter: 9 mm. Working pressure: 25 bar. Operating temperature: from -20°C to +200°C (viton). Material: brass (socket body, connection, valve sleeve), stainless steel (spring, ring, balls).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
FW-CSK090-FG10	DN 9 socket with end for PUSH-ON 10 mm hose, with valve	10	25	In stock	Enquiry
FW-CSK090-FG13	DN 9 socket with end for PUSH-ON hose 12.7 mm, with valve	12	25	In stock	Enquiry
FW-SK090-FG10	DN 9 socket with end for PUSH-ON 10 mm hose, without valve	10	25	In stock	Enquiry
FW-SK090-FG13	DN 9 socket with end for PUSH-ON hose 12.7 mm, without valve	12	25	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

DN 9 quick coupling socket with “tail” for PUSH-ON hose, with or without valve, widely used in the industry for cooling injection molds and casting parts made of plastics, aluminum, brass, and zinc alloys. It can be used for water in cleaning machines, hot oil, and steam. Flow diameter: 9 mm. Working pressure: 25 bar. Operating temperature: from -20°C to +200°C (viton). Material: brass (socket body, connection, valve sleeve), stainless steel (spring, ring, balls).
