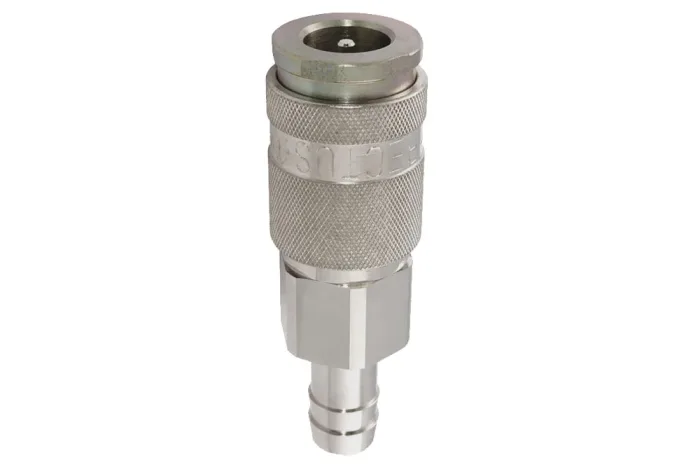

Socket quick coupling DN12 double shut-off, with fitting for hose, brass nickel-plated, series 57KB

Additional information

Material

B – brass (bronze)

Quick-coupling socket DN12 with a hose fitting, series 57 KB, high-flow, for liquid and gaseous media. Single or double shut-off depending on the plug used. Working pressure: 35 bar. Flow rate: 3300 l/min, Pe=6 bar, Δp=0.5 bar – air, 73.5 l/min, Δp=1 bar, Kv=4.4 – water (for the 57KB/57SB connection), 4700 l/min, Pe=6 bar, Δp=0.5 bar – air, 91.7 l/min, Δp=1 bar, Kv=5.5 – water (for the 57KB/57SF connection). Material: nickel-plated brass (body), nickel-plated steel (locking sleeve), stainless steel (spring, ring and locking balls). Sealing: NBR. Operating temperature: from -20°C to +100°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
RE-57KBTF16BPNQuick coupling socket 57KB DN12, with a valve, for 16 mm hose, brass nickel-plated, NBR1635In stock0 zł
Enquiry
RE-57KBTF19BPNQuick coupling socket 57KB DN12, with a valve, for 19 mm hose, brass nickel-plated, NBR2035In stock0 zł
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Quick-coupling socket DN12 with a hose fitting, series 57 KB, high-flow, for liquid and gaseous media. Single or double shut-off depending on the plug used. Working pressure: 35 bar. Flow rate: 3300 l/min, Pe=6 bar, Δp=0.5 bar – air, 73.5 l/min, Δp=1 bar, Kv=4.4 – water (for the 57KB/57SB connection), 4700 l/min, Pe=6 bar, Δp=0.5 bar – air, 91.7 l/min, Δp=1 bar, Kv=5.5 – water (for the 57KB/57SF connection). Material: nickel-plated brass (body), nickel-plated steel (locking sleeve), stainless steel (spring, ring and locking balls). Sealing: NBR. Operating temperature: from -20°C to +100°C.

Additional information

Material

B – brass (bronze)

Do you need a larger quantity of products or a bespoke quote?
