Is the Reel reel for air, water E-250 / 310 series, carbon steel suitable for outdoor use and resistant to temperatures up to +70Â°C?

Yes. The Reel reel for air, water E-250 / 310 series, carbon steel is suitable for outdoor use and is rated for operating temperatures up to +70Â°C. The product description specifies it is designed for installation indoors and outdoors, constructed from powder-coated carbon steel for environmental protection, uses viton sealing, and lists an operating temperature up to +70Â°C. Additionally, it includes a polyurethane hose with bend protection and a swivel coupling, and the retractable spring is tested for 30,000 cycles; it is also ATEX compliant (II 3 GD c IIB TX).

Can the Reel reel for air, water E-250 / 310 series, carbon steel be used with pneumatic tools while mounted outdoors?

Yes. The Reel reel for air, water E-250 / 310 series, carbon steel can be used with pneumatic tools while mounted outdoors. It is designed for transmission of air and cold/hot water, for indoor and outdoor installation, includes a high-quality polyurethane hose with bend protection spring and a swivel coupling for free operation with connected tools (e.g., pneumatic tools), and the retractable spring is tested for 30,000 cycles. It is ATEX compliant (II 3 GD c IIB TX), made of powder-coated carbon steel with viton sealing, and rated to +70Â°C.

Does the Reel reel for air, water E-250 / 310 series, carbon steel include a viton seal for chemical resistance?

Yes. The Reel reel for air, water E-250 / 310 series, carbon steel includes a viton seal for chemical resistance. The product description lists "Sealing: viton" and an operating temperature up to +70Â°C.

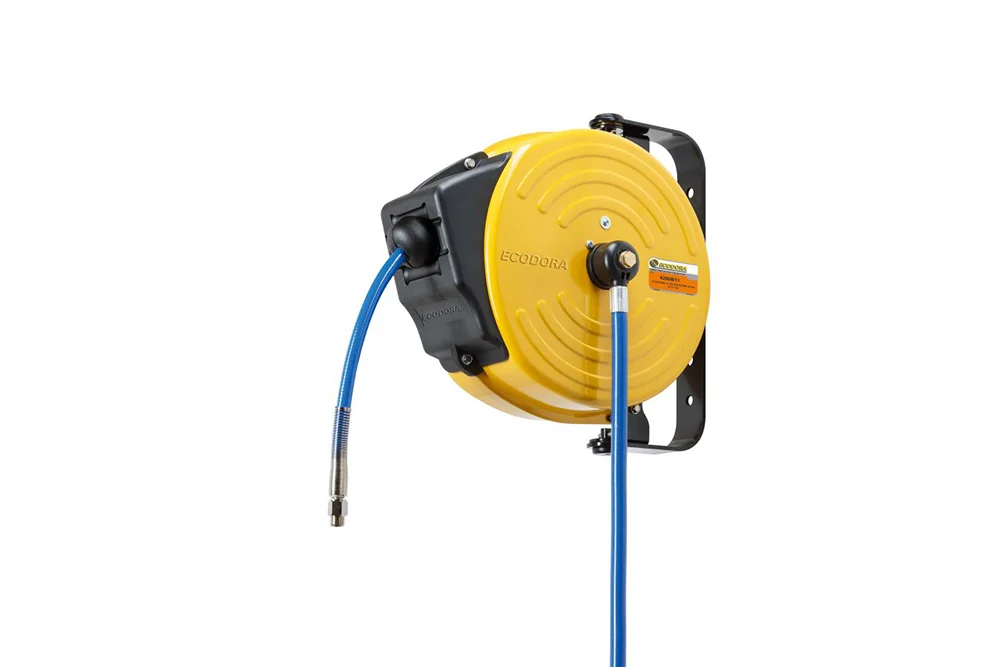

Reel reel for air, water E-250 / 310 series, carbon steel

All products, Spring-driven hose reels/

Additional information

Material	CS – steel (cast iron)
Maximum operating temperature [°C]	70

Complete reel designed for the transmission of air and cold and hot water. For installation indoors and outdoors. The retractable spring tested for 30,000 winding and unwinding cycles. Compliant with ATEX directive II 3 GD c IIB TX. Standardly included is a high-quality polyurethane hose with a bend protection spring and a swivel coupling allowing for free operation with connected tools, e.g., pneumatic tools. Length of the supply hose: 1.5 m. Material: powder-coated carbon steel. Sealing: viton. Operating temperature: up to +70°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
ED-42608-11	E-250 drum with 5/16" hose / 12 m, 20 bar, carbon steel	8	20	In stock	Enquiry
ED-42608-12	E-250 drum with 3/8" hose / 10 m, 20 bar, carbon steel	10	20	In stock	Enquiry
ED-43108-12	E-310 drum with 5/16" hose / 12 m, 20 bar, carbon steel	8	20	In stock	Enquiry
ED-43108-13	E-310 drum with 5/16" hose / 15 m, 20 bar, carbon steel	8	20	In stock	Enquiry
ED-43108-14	E-310 drum with 5/16" hose / 20 m, 20 bar, carbon steel	8	20	In stock	Enquiry
ED-43108-15	E-310 drum with 3/8" hose / 12 m, 20 bar, carbon steel	10	20	In stock	Enquiry
ED-43108-16	E-310 drum with 3/8" hose / 15 m, 20 bar, carbon steel	10	20	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Complete reel designed for the transmission of air and cold and hot water. For installation indoors and outdoors. The retractable spring tested for 30,000 winding and unwinding cycles. Compliant with ATEX directive II 3 GD c IIB TX. Standardly included is a high-quality polyurethane hose with a bend protection spring and a swivel coupling allowing for free operation with connected tools, e.g., pneumatic tools. Length of the supply hose: 1.5 m. Material: powder-coated carbon steel. Sealing: viton. Operating temperature: up to +70°C.
