Can Quick release coupling for air DN7.2 Eurostandard, with hose connection, 16 bar double shut-off plug be used with different gas types like nitrogen?

Yes. The Quick release coupling for air DN7.2 Eurostandard, with hose connection, 16 bar double shut-off plug can be used with different non-flammable gases such as nitrogen, per the product description. It is designed for pneumatic installations (air, nitrogen, other non-flammable gases), has brass body, NBR sealing, stainless steel spring, working pressure up to 16 bar (easy oneâhand operation up to 8 bar), and temperature range â20Â°C to +100Â°C. Do not mate double shut-off with single shut-off versions (valves wonât open). Ensure compatibility of sealing materials (NBR) with your specific gas and follow applicable safety standards.

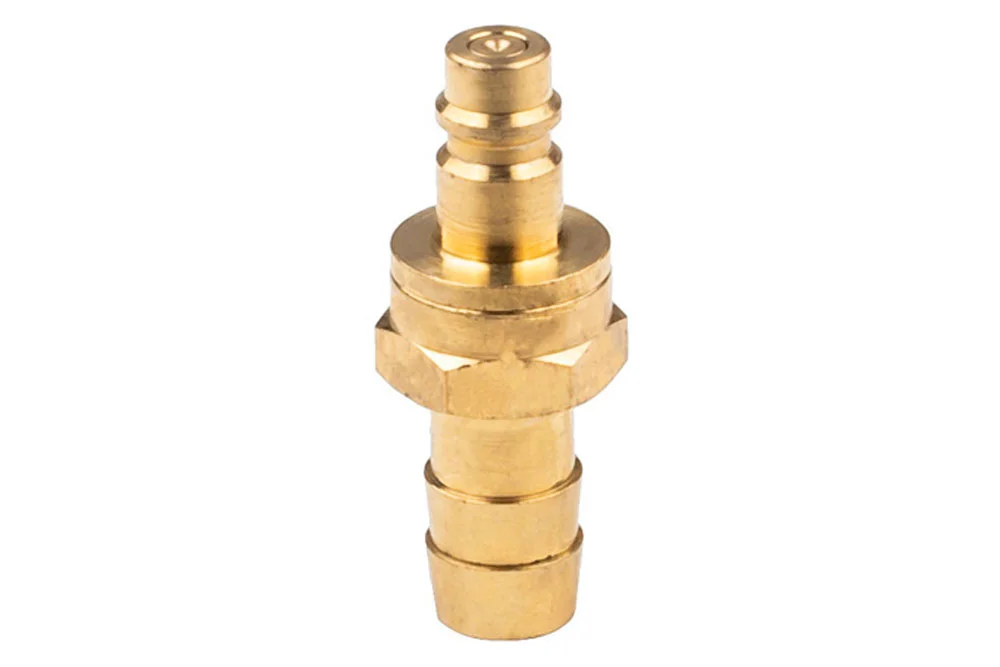

Quick release coupling for air DN7.2 Eurostandard, with hose connection, 16 bar

All products, General-purpose low-pressure quick couplings/

Additional information

Material	B – brass (bronze)

Quick-release coupling plug, double shut-off, with a popular Eurostandard DN7.2 profile, featuring a valve, with a hose connection, for use in pneumatic installations (air, nitrogen, other non-flammable gases). The double shut-off version has a valve in both the socket and the plug, and it is not advisable to connect the single shut-off version with the double shut-off version, as the valve will not open. Easily operated with one hand up to a pressure of 8 bar. Working pressure: 16 bar. Material: brass (stainless steel spring). Sealing: NBR. Flow rate: 734 l/min, Pe=6 bar, Δp=1 bar (air). Operating temperature: from -20°C to +100°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TP-ES72D-WK-06X	Quick coupling plug DN7.2 double shut-off, for 6 mm hose, brass	6	16	In stock	Enquiry
TP-ES72D-WK-08X	Quick coupling plug DN7.2 double shut-off, for 8 mm hose, brass	8	16	In stock	Enquiry
TP-ES72D-WK-09X	Quick coupling plug DN7.2 double shut-off, for 9 mm hose, brass	8	16	In stock	Enquiry
TP-ES72D-WK-10X	Quick coupling plug DN7.2 double shut-off, for 10 mm hose, brass	10	16	In stock	Enquiry
TP-ES72D-WK-13X	Quick coupling plug DN7.2 double shut-off, for 13 mm hose, brass	12	16	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Quick-release coupling plug, double shut-off, with a popular Eurostandard DN7.2 profile, featuring a valve, with a hose connection, for use in pneumatic installations (air, nitrogen, other non-flammable gases). The double shut-off version has a valve in both the socket and the plug, and it is not advisable to connect the single shut-off version with the double shut-off version, as the valve will not open. Easily operated with one hand up to a pressure of 8 bar. Working pressure: 16 bar. Material: brass (stainless steel spring). Sealing: NBR. Flow rate: 734 l/min, Pe=6 bar, Δp=1 bar (air). Operating temperature: from -20°C to +100°C.
