Can the Electrically operated pneumatic diverter valve, bistable, 3/2, 70 series be mounted directly on an actuator without the control coil?

Yes . the Electrically operated pneumatic diverter valve, bistable, 3/2, 70 series without control coil can be mounted directly on an actuator. The product description explicitly states it is most commonly used for controlling actuator operation and can be mounted inline, to a wall, directly to actuators, or on a connection block. Ensure the actuator interface matches the valve ports and mounting pattern, and verify compatibility with the valveâs specifications: 3/2 function (three-way, two-position), aluminum body with nickel-plated aluminum slider, NBR seals, plastic end cover, operating pressure up to 10 bar, and temperature range â10Â°C to +60Â°C. Also confirm that the external electrical coil and wiring (control coil) and any required mounting hardware are suitable for the actuator and provide proper electrical actuation for the bistable function.

Can the Electrically operated pneumatic diverter valve, bistable, 3/2, 70 series be mounted inline, on a wall, or on a connection block without the control coil?

Yes. The Electrically operated pneumatic diverter valve, bistable, 3/2, 70 series (without control coil) can be mounted inline, on a wall, directly to actuators, or on a connection block. Its 3/2 function, aluminum body, nickelâplated slider and NBR seals support typical pneumatic installations up to 10 bar and â10Â°C to +60Â°C, so mounting in those orientations is permissible provided system connections and support meet application and safety requirements.

Is the Electrically operated pneumatic diverter valve, bistable, 3/2, 70 series suitable for actuator control without a control coil?

Yes. the Electrically operated pneumatic diverter valve, bistable, 3/2, 70 series is suitable for actuator control without a control coil, given the description provided. The product is explicitly described as a "Universal electric control distribution valve (solenoid valve), without control coil, most commonly used for controlling actuator operation," which indicates it is designed to be used in control circuits where the coil is provided separately or integrated into the system actuator/control module. Key points supporting suitability: - Function 3/2 (three-way, two-position) is a standard configuration for actuator control, allowing a single supply and two output states (extend/retract or supply/exhaust). - Bistable design maintains position without continuous power, useful for holding actuator state after pulse signals. - Operating pressure up to 10 bar covers typical pneumatic actuator requirements. - Operating temperature range -10Â°C to +60Â°C suits most industrial environments. - Construction materials (aluminum body, nickel-plated aluminum slider, NBR seals) are appropriate for general pneumatic actuator systems. - Mounting flexibility (inline, wall, directly to actuators, or on a connection block) facilitates integration with actuators. Considerations: - You must supply a compatible control coil or an appropriate electrical actuator interface, since the valve is sold without the coil. - Ensure the coil voltage/type, electrical connections, and mounting are compatible with your control system and actuator. - Verify flow rate/port sizes and response time meet your actuator's dynamic requirements. Conclusion: The Electrically operated pneumatic diverter valve, bistable, 3/2, 70 series is suitable for actuator control without a control coil, provided you add a compatible coil and confirm electrical and pneumatic specifications match your actuator system.

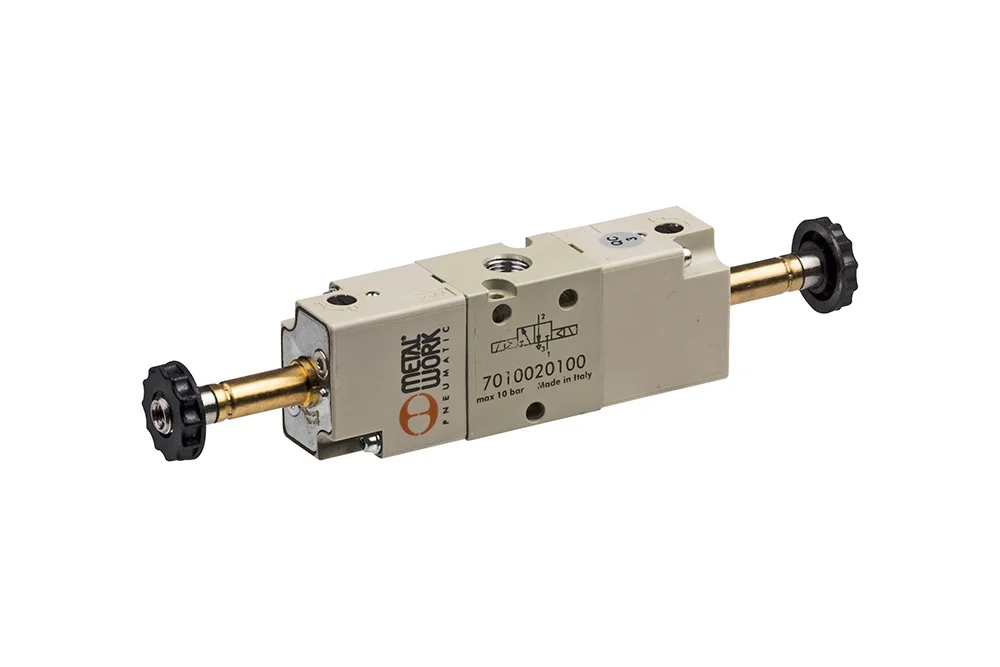

Electrically operated pneumatic diverter valve, bistable, 3/2, 70 series

All products, Pneumatic valves/

Additional information

Maximum operating temperature [°C]	60
Minimum operating temperature [°C]	-10
Standard length [m]	3

Universal electric control distribution valve (solenoid valve), without control coil, most commonly used for controlling actuator operation. It can be mounted inline, to a wall, directly to actuators, or on a connection block. Function 3/2 – three-way, two-position. Material: valve body – aluminum, slider – nickel-plated aluminum, sealing – NBR, end cover – plastic. Operating pressure: up to 10 bar. Operating temperature: -10°C to +60°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-7010020100	Valve series 70 SOV 23 SOB OO	-	10	In stock	Enquiry
MW-7010020300	Valve series 70 SOV 23 SEB OO	-	10	In stock	Enquiry
MW-7020020100	Valve series 70 SOV 33 SOB OO	-	10	In stock	Enquiry
MW-7020020300	Valve series 70 SOV 33 SEB OO	-	10	In stock	Enquiry
MW-7030020100	Valve series 70 SOV 43 SOB OO	-	10	In stock	Enquiry
MW-7030020300	Valve series 70 SOV 43 SEB OO	-	10	In stock	Enquiry
MW-7040020100	Valve series 70 SOV C3 SOB OO	-	10	In stock	Enquiry
MW-7040020300	Valve series 70 SOV C3 SEB OO	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Universal electric control distribution valve (solenoid valve), without control coil, most commonly used for controlling actuator operation. It can be mounted inline, to a wall, directly to actuators, or on a connection block. Function 3/2 – three-way, two-position. Material: valve body – aluminum, slider – nickel-plated aluminum, sealing – NBR, end cover – plastic. Operating pressure: up to 10 bar. Operating temperature: -10°C to +60°C.
