Can the Electrically operated pneumatic diverter valve, bistable, 5/2, 70 series be mounted directly to an actuator or must it be installed on a connection block?

Electrically operated pneumatic diverter valve, bistable, 5/2, 70 series can be mounted directly to an actuator or installed on a connection block. The product description states it is commonly used for controlling actuator operation and explicitly notes it can be mounted inline, to a wall, directly to actuators, or on a connection block. Ensure mounting surfaces and port alignments match the actuator or block, and verify mounting hardware and sealing (NBR) are appropriate for your application and operating conditions (up to 10 bar, -10Â°C to +60Â°C).

Does the Electrically operated pneumatic diverter valve, bistable, 5/2, 70 series require a specific mounting orientation for reliable operation?

Electrically operated pneumatic diverter valve, bistable, 5/2, 70 series does not require a specific mounting orientation for reliable operation. According to the description, it is designed for flexible installation - inline, wall-mounted, directly on actuators, or on a connection block. Its materials (aluminum body, nickel-plated aluminum slider, NBR seals, plastic end cover) and specified operating pressure (up to 10 bar) and temperature range (-10Â°C to +60Â°C) support normal function in these orientations. Ensure proper sealing, secure mounting, and access for the electrical connection; avoid orientations that trap condensate or debris if the application environment is wet or dirty.

Is the Electrically operated pneumatic diverter valve, bistable, 5/2, 70 series compatible with standard actuator port sizes?

Based on the provided description, Electrically operated pneumatic diverter valve, bistable, 5/2, 70 series is designed for versatile mounting. inline, to a wall, directly to actuators, or on a connection block. which indicates it is intended to interface with common actuator setups. The materials (aluminum body, nickel-plated aluminum slider, NBR seals) and operating pressure (up to 10 bar) and temperature range (-10Â°C to +60Â°C) are typical for valves used with standard pneumatic actuators. However, the description does not specify the exact actuator port thread size or standard (e.g., ISO 228, ISO 7, NPT, or specific port dimensions such as G1/4, 1/8", etc.). Compatibility with âstandard actuator port sizesâ therefore cannot be confirmed unequivocally from the given data alone. To ensure full compatibility, check the valveâs detailed technical datasheet or vendor specifications for the exact port thread/type and compare them with your actuatorâs port standard. If an adapter or mounting plate is acceptable, the valveâs described mounting flexibility suggests integration will likely be feasible.

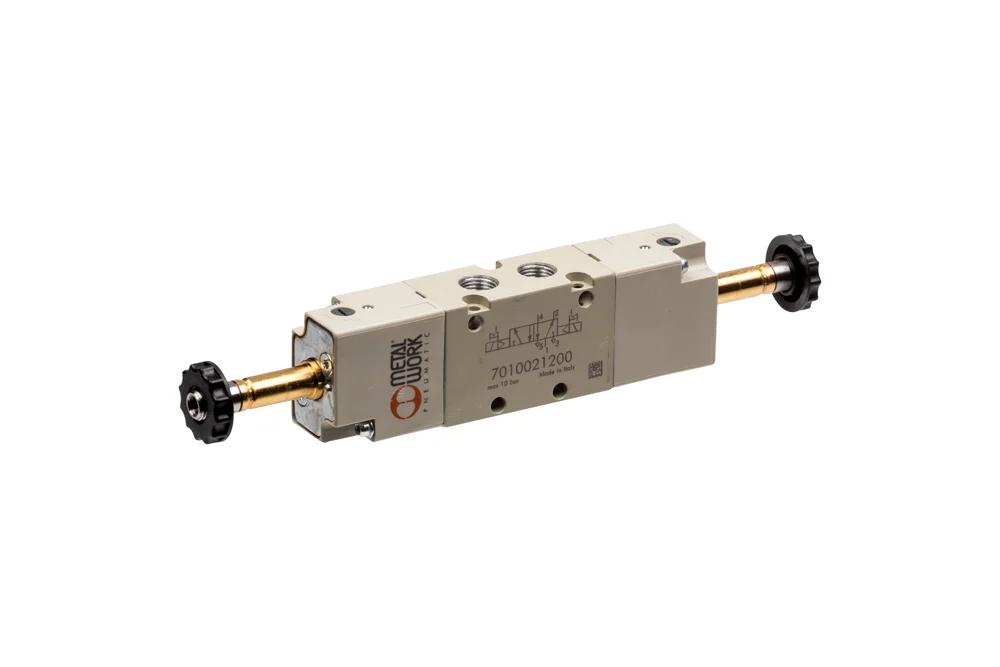

Electrically operated pneumatic diverter valve, bistable, 5/2, 70 series

All products, Pneumatic valves/

Additional information

Maximum operating temperature [°C]	60
Minimum operating temperature [°C]	-10
Standard length [m]	10

Universal electric control distribution valve (solenoid valve), without control coil, most commonly used for controlling actuator operation. It can be mounted inline, to a wall, directly to actuators, or on a connection block. Function 5/2 – five-way, two-position. Material: valve body – aluminum, slider – nickel-plated aluminum, sealing – NBR, end cover – plastic. Operating pressure: up to 10 bar. Operating temperature: -10°C to +60°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-7010021200	Valve series 70 SOV 25 SOB OO	-	10	In stock	Enquiry
MW-7010021300	Valve series 70 SOV 25 SOD OO	-	10	In stock	Enquiry
MW-7010021600	Valve series 70 SOV 25 SEB OO	-	10	In stock	Enquiry
MW-7020021200	Valve series 70 SOV 35 SOB OO	-	10	In stock	Enquiry
MW-7020021300	Valve series 70 SOV 35 SOD OO	-	10	In stock	Enquiry
MW-7020021600	Valve series 70 SOV 35 SEB OO	-	10	In stock	Enquiry
MW-7030021200	Valve series 70 SOV 45 SOB OO	-	10	In stock	Enquiry
MW-7030021300	Valve series 70 SOV 45 SOD OO	-	10	In stock	Enquiry
MW-7030021600	Valve series 70 SOV 45 SEB OO	-	10	In stock	Enquiry
MW-7040021200	Valve series 70 SOV C5 SOB OO	-	10	In stock	Enquiry
MW-7040021300	Valve series 70 SOV C5 SOD OO	-	10	In stock	Enquiry
MW-7040021600	Valve series 70 SOV C5 SEB OO	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Universal electric control distribution valve (solenoid valve), without control coil, most commonly used for controlling actuator operation. It can be mounted inline, to a wall, directly to actuators, or on a connection block. Function 5/2 – five-way, two-position. Material: valve body – aluminum, slider – nickel-plated aluminum, sealing – NBR, end cover – plastic. Operating pressure: up to 10 bar. Operating temperature: -10°C to +60°C.
