Is the Electrically controlled hydraulic spool valve, type 4/2, NG10 compatible with both 12/24 V DC and 110/220 V AC control voltages?

Electrically controlled hydraulic spool valve, type 4/2, NG10 Format . Yes. The valve is available in versions for 12 V DC, 24 V DC, 110 V AC or 220 V AC control voltages, so it is compatible with either 12/24 V DC or 110/220 V AC provided you select the matching coil/control version. Ensure you order the specific voltage variant required (12 V DC, 24 V DC, 110 V AC or 220 V AC) and verify the supply matches the valveâs rated voltage.

Can the Electrically controlled hydraulic spool valve, type 4/2, NG10 be remotely mounted while maintaining its power status LED visibility?

Yes - the Electrically controlled hydraulic spool valve, type 4/2, NG10 Format can be remotely mounted while keeping the power status LED visible, provided the following are observed: the coupling with LED remains accessible or is extended to the remote location (using the manufacturer-approved electrical connector/extension), wiring follows voltage and insulation requirements for the chosen control voltage (12/24 V DC or 110/220 V AC), and mounting does not exceed the valveâs operating temperature range (â20Â°C to +80Â°C) or compromise sealing (NBR) and mechanical integrity. Panel-style mounting practices and secure fastening (O-rings, mounting screws) must be maintained; if long cable runs are used, account for voltage drop and EMI. If in doubt, consult the valve manufacturer for approved remote-mounting accessories and wiring limits.

Does the Electrically controlled hydraulic spool valve, type 4/2, NG10 include mounting hardware and O-rings as standard?

Yes. Electrically controlled hydraulic spool valve, type 4/2, NG10 Format is standardly supplied with O-rings and mounting screws (mounting hardware).

Electrically controlled hydraulic spool valve, type 4/2, NG10

All products, Valves and plate adapters/

Additional information

Maximum operating temperature [°C]	80
Minimum operating temperature [°C]	-20

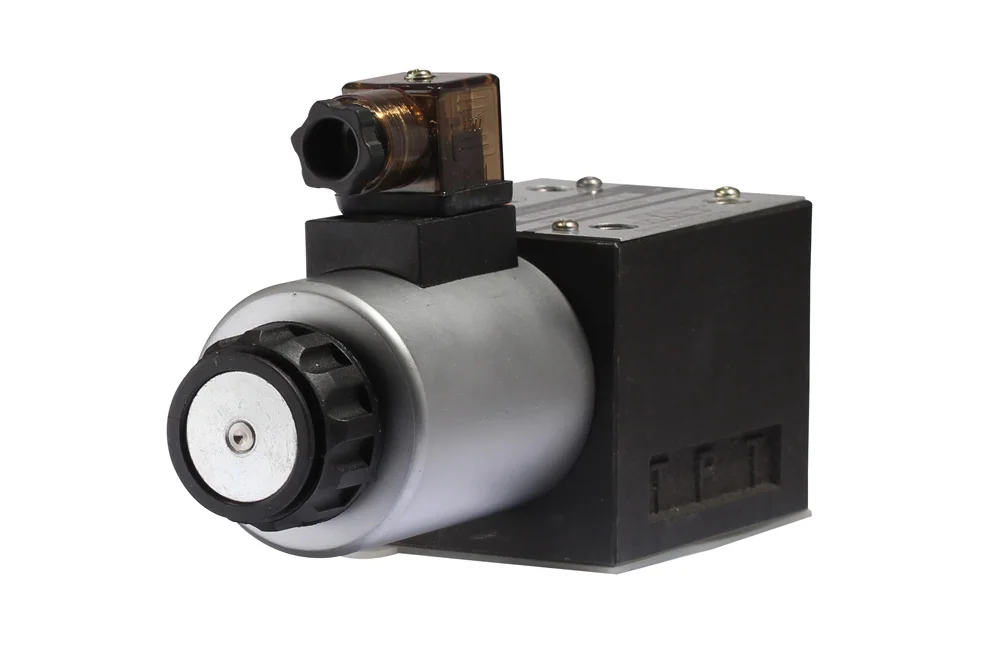

Sliding valve, type 4/2, electrically controlled with centering springs, designed for panel mounting. Used in hydraulic systems of industrial machines. Standardly supplied with O-rings and mounting screws. The coupling is equipped with a power status indicator LED. Material: cast iron (body), hardened steel (slider). Sealing: NBR. Maximum operating pressure: 315 bar (ports P, A, B), 160 bar (port T). Available for the following control voltages: 12 V DC, 24 V DC, 110 V AC, or 220 V AC. Operating temperature: from -20°C to +80°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
TL-NG10-D-24DC	Hydraulic distributor NG10, type 4/2, control 24V DC	-	315	In stock	0 zł		Enquiry
TL-NG10-HA-24DC	Hydraulic distributor NG10, type 4/2, control 24V DC	-	315	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Sliding valve, type 4/2, electrically controlled with centering springs, designed for panel mounting. Used in hydraulic systems of industrial machines. Standardly supplied with O-rings and mounting screws. The coupling is equipped with a power status indicator LED. Material: cast iron (body), hardened steel (slider). Sealing: NBR. Maximum operating pressure: 315 bar (ports P, A, B), 160 bar (port T). Available for the following control voltages: 12 V DC, 24 V DC, 110 V AC, or 220 V AC. Operating temperature: from -20°C to +80°C.
