Is the PN16 fixed neck flange (EN1092-1, type 11B1, AISI 321 steel) suitable for connecting flexible hoses and pipeline sections in high-temperature applications?

Yes . the PN16 fixed neck flange, EN1092-1, type 11B1, AISI 321 steel is suitable for connecting flexible hoses and pipeline sections in high-temperature applications, with some caveats. Why itâs suitable: - Design and standard: Manufactured to EN1092-1 with a welded neck (type 11B) and B1 sealing face, the flange provides a robust, pressure-rated PN16 connection commonly used for pipeline assemblies and hose connections. - Material: AISI 321 stainless steel is stabilized against carbide precipitation and offers good resistance to high-temperature oxidation and corrosion, making it appropriate for elevated-temperature service compared with ordinary austenitic grades. - Joint integrity: The fixed neck geometry and B1 sealing face create a tight, solid assembly that ensures reliable sealing and mechanical strength under thermal and pressure cycling. Caveats and considerations: - Temperature limits: Verify the exact operating temperature and consult AISI 321 mechanical properties for that range (AISI 321 performs well up to several hundred Â°C but has limits versus higher alloys). For very high temperatures or aggressive environments, a higher-grade alloy may be required. - Hose compatibility: Ensure the flexible hose end, gasket material, and bolting are rated for the same temperature and pressure and compatible with the B1 face and PN16 rating. - Welding and installation: Proper welding procedures and post-weld treatments (if applicable) must be followed to preserve material properties at temperature. - Pressure/temperature derating: Check applicable codes for PN16 derating at elevated temperatures. Conclusion: For many high-temperature pipeline and flexible hose connections the PN16 fixed neck flange, EN1092-1, type 11B1, AISI 321 steel is appropriate, provided the specific temperature, media, and component compatibility are confirmed.

Can the PN16 fixed neck flange EN1092-1 type 11B1 AISI 321 steel withstand corrosive media in industrial pipelines?

PN16 fixed neck flange EN1092-1 type 11B1 AISI 321 steel can resist many corrosive media, but its suitability depends on the specific chemical environment, temperature and concentration. AISI 321 is a stabilized austenitic stainless steel with titanium additions that improves resistance to intergranular corrosion at elevated temperatures and offers good general corrosion resistance to oxidizing media. It performs well in water, steam, mild acids and many organic substances, and in typical industrial pipeline applications its PN16 fixed neck flange design ensures tight, durable joints. However, AISI 321 is less resistant to chloride-induced pitting and crevice corrosion than higher-alloy stainless steels (e.g. 316/316L or duplex) and may be unsuitable for strong reducing acids, high chloride concentrations, or very aggressive halide environments. For critical or aggressive corrosive media, perform material compatibility check, consider 316/316L or duplex alternatives, and consult corrosion specialists or standards for operating conditions.

Does the PN16 fixed neck flange, EN1092-1 type 11B1 AISI 321 steel meet sanitary and food-grade standards?

Possibly, but not guaranteed. Explanation: - AISI 321 is an austenitic stainless steel with titanium stabilization. It offers good corrosion resistance and is commonly used in food-processing equipment, but it is not specifically designated as a food-grade stainless steel like AISI 304L/316L which are more typical for sanitary applications. - PN16 fixed neck flange, EN1092-1, type 11B1, AISI 321 steel is manufactured to a pressure/flange standard and mechanical/sealing configuration (weld neck, sealing face B1) suitable for industrial pipeline connections. That standard does not by itself certify sanitary or food-grade status. - For food and sanitary compliance you need additional factors: surface finish (smoothness/roughness Ra), absence of crevices, weld quality and passivation, traceability/certificates (e.g., EN 10204 3.1/3.2), and compliance with relevant regulations (e.g., EU food contact regulations, FDA for US, or specific hygienic standards such as 3-A, EHEDG). - AISI 321 can be acceptable in some food applications if surface finish, cleaningability, and certification are met, but AISI 316/316L is usually preferred due to better corrosion resistance in aggressive food environments (chlorides, acidic cleaners) and wider acceptance for sanitary certification. Recommendation: - Ask the supplier for: surface roughness value, electropolishing/passivation records, weld inspection reports, material certificates (EN 10204), and any food-contact or hygienic standard declarations. If you require recognized sanitary certification, consider requesting the flange in AISI 316L or a product explicitly certified for food/sanitary use.

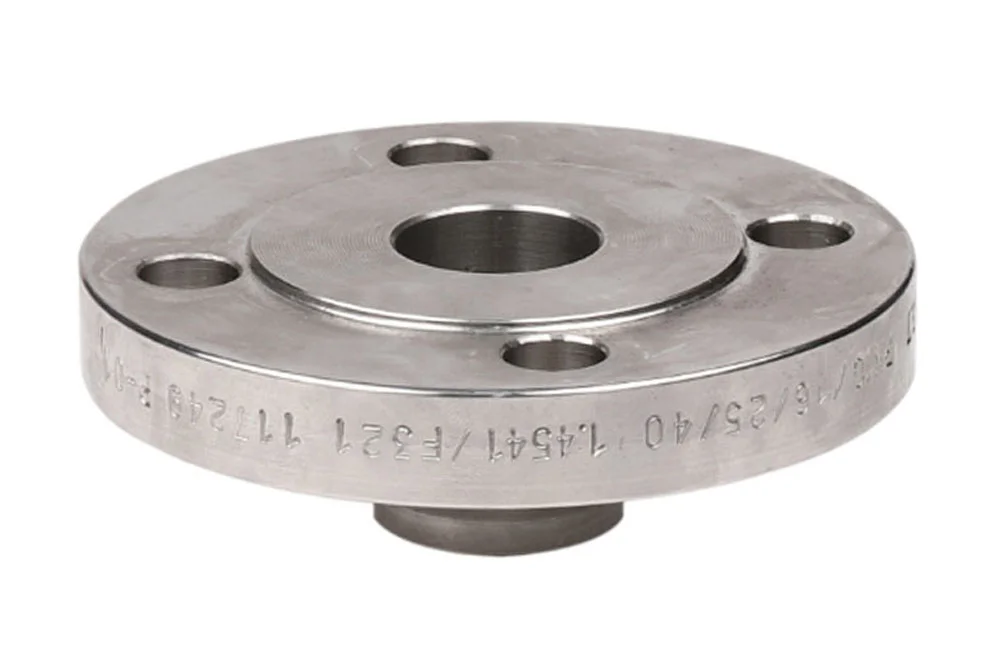

PN16 fixed neck flange, EN1092-1, type 11B1, AISI 321 steel

All products, Flange couplings/

Additional information

Material	SS – stainless steel

The fixed flange is made according to standard EN1092-1, with a neck for welding type 11B, sealing surface type B1, and nominal pressure PN16. The flange connection is one of the most widely used in the industry, primarily for connecting sections of technological pipelines, but also for connections with flexible hoses. Due to its special design, it creates a tight and solid assembly, ensuring excellent parameters and reliability of the entire installation. Material: AISI 321 steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TK-KSS-015-SS321	Fixed neck flange EN1092-1 type 11B1 DN15 PN10-40, AISI 321	16	16	In stock	Enquiry
TK-KSS-020-SS321	Fixed neck flange EN1092-1 type 11B1 DN20 PN10-40, AISI 321	20	16	In stock	Enquiry
TK-KSS-025-SS321	Fixed neck flange EN1092-1 type 11B1 DN25 PN10-40, AISI 321	25	16	In stock	Enquiry
TK-KSS-032-SS321	Fixed neck flange EN1092-1 type 11B1 DN32 PN10-40, AISI 321	32	16	In stock	Enquiry
TK-KSS-040-SS321	Fixed neck flange EN1092-1 type 11B1 DN40 PN10-40, AISI 321	40	16	In stock	Enquiry
TK-KSS-050-SS321	Fixed neck flange EN1092-1 type 11B1 DN50 PN16, AISI 321	50	16	In stock	Enquiry
TK-KSS-065-SS321	Fixed neck flange EN1092-1 type 11B1 DN65 PN16, AISI 321	65	16	In stock	Enquiry
TK-KSS-080-SS321	Fixed neck flange EN1092-1 type 11B1 DN80 PN16, AISI 321	80	16	In stock	Enquiry
TK-KSS-100-SS321	Fixed neck flange EN1092-1 type 11B1 DN100 PN16, AISI 321	100	16	In stock	Enquiry
TK-KSS-125-SS321	Fixed neck flange EN1092-1 type 11B1 DN125 PN16, AISI 321	125	16	In stock	Enquiry
TK-KSS-150-SS321	Fixed neck flange EN1092-1 type 11B1 DN150 PN16, AISI 321	150	16	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

The fixed flange is made according to standard EN1092-1, with a neck for welding type 11B, sealing surface type B1, and nominal pressure PN16. The flange connection is one of the most widely used in the industry, primarily for connecting sections of technological pipelines, but also for connections with flexible hoses. Due to its special design, it creates a tight and solid assembly, ensuring excellent parameters and reliability of the entire installation. Material: AISI 321 steel.
