Does the Float level gauge with sensor, aluminum, APWE detect and alarm at the minimum hydraulic oil level (float lower position) under 2 bar and +5Â°C to +80Â°C?

Float level gauge with sensor, aluminum, APWE . Yes. According to the description, the gauge is specifically designed to signal the minimum hydraulic oil level (lower float position). Its maximum operating pressure is 2 bar and the operating temperature range is +5Â°C to +80Â°C, which matches the conditions you specified. Electrical output limits (max 48 V AC/DC, 0.5 A) and IP65 protection are also given, so ensure your alarm/readout equipment is compatible with those ratings.

Can the Float level gauge with sensor, aluminum, APWE be mounted on tanks with different wall thicknesses using BANJO type mounting screws?

Yes. Float level gauge with sensor, aluminum, APWE can be mounted on tanks with different wall thicknesses using BANJO type mounting screws, provided the screws pass through the tank wall and align with the gauge openings so oil can enter the gauge. Ensure the BANJO screws and any sealing (gaskets/threads) are compatible with the tank material and thickness to maintain pressure tightness up to 2 bar and IP65 protection. Verify electrical connections conform to max 48 V AC/DC and 0.5 A, and installation keeps the gauge within the operating temperature range (+5Â°C to +80Â°C).

Is the Float level gauge with sensor, aluminum, APWE compatible with 48V AC/DC and 0.5 A electrical systems?

Yes. The Float level gauge with sensor, aluminum, APWE is compatible with electrical systems up to 48V AC/DC and 0.5 A, as stated in the product description.

Level gauge float with sensor, aluminum, APWE

All products, Other high-pressure accessories/

Additional information

Material	AL – aluminum

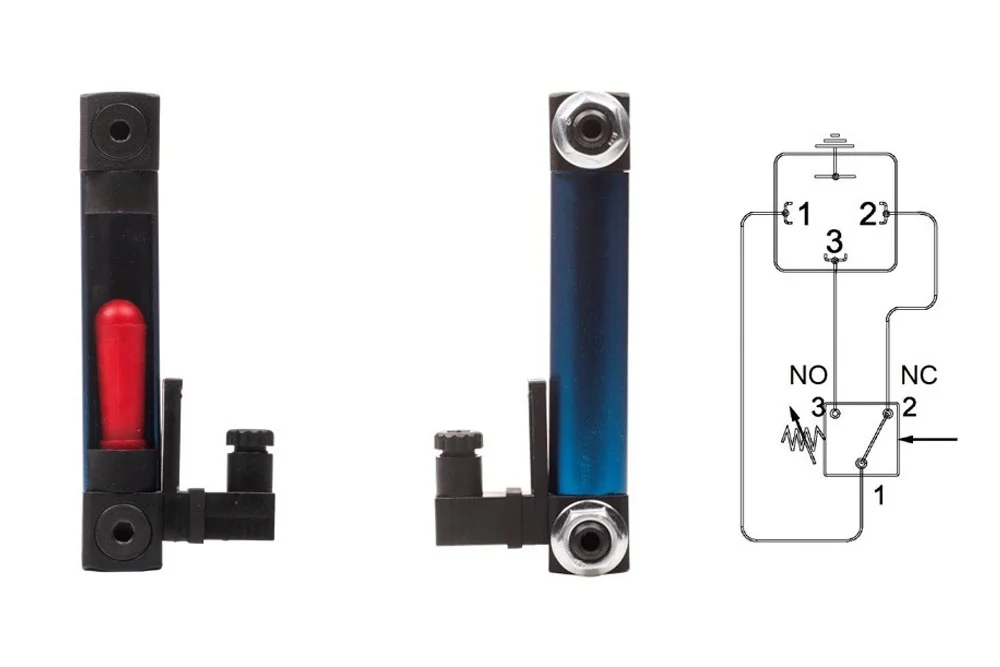

Level gauge intended for observation level oil hydraulic, mounted on side wall bowl. equipped is in Float lifting on surface oil. signals minimal level liquids in tank (bottom position float). oil penetrates for the inside level gauge through holes in screws assembly type BANJO. Material: polyamide (body), aluminum (housing), methacrylate perbexu (hole inspection). maximum Working pressure: 2 bar. signal electric: maximum 48V AC/DC and 0.5 A. Protection degree: IP 65. Operating temperature: od +5°C up to +80°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
AH-APWE-02	Poziomowskaz, D=127 mm, maks. 48V	-	-	In stock	0 zł		Enquiry
AH-APWE-03	Poziomowskaz, D=254 mm, maks. 48V	-	-	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Level gauge intended for observation level oil hydraulic, mounted on side wall bowl. equipped is in Float lifting on surface oil. signals minimal level liquids in tank (bottom position float). oil penetrates for the inside level gauge through holes in screws assembly type BANJO. Material: polyamide (body), aluminum (housing), methacrylate perbexu (hole inspection). maximum Working pressure: 2 bar. signal electric: maximum 48V AC/DC and 0.5 A. Protection degree: IP 65. Operating temperature: od +5°C up to +80°C.
