Can the Four-way diverter block, black galvanized steel, handle 3000 bar with standard seals or is a metal-rubber seal required for safe operation?

Four-way diverter block, black galvanized steel cannot safely handle 3000 bar with standard seals. Opis wyraÅºnie wskazuje, Å¼e maksymalne robocze ciÅnienie przy uÅ¼yciu metal-rubber (metal-gumowy) uszczelnienia wynosi 1000 bar, co implikuje ograniczenie dla standardowych uszczelnieÅ. PoniewaÅ¼ podany parametr pracy to 3000 bar, a notka doprecyzowuje maks. 1000 bar przy metal-rubber seals, bezpieczna eksploatacja przy 3000 bar wymaga specjalnych, przeznaczonych do takiego ciÅnienia uszczelnieÅ (raczej metal-metal lub inne wysokociÅnieniowe rozwiÄzania certyfikowane do 3000 bar). Wniosek: nie uÅ¼ywaÄ standardowych uszczelnieÅ . do pracy przy 3000 bar potrzebne sÄ odpowiednie, wysokociÅnieniowe uszczelnienia zgodne z specyfikacjÄ producenta.

Does the Four-way diverter block, black galvanized steel, require specific seals for 3000 bar operation?

Four-way diverter block, black galvanized steel requires specific seals for 3000 bar operation. The product description states working pressure 3000 bar but notes that the maximum working pressure when using a metal-rubber seal is 1000 bar. Therefore to safely reach 3000 bar you must use appropriate high-pressure seals (metal-to-metal or other rated seals specified by the manufacturer) rather than metal-rubber seals. Confirm seal type and manufacturer recommendations before operating at 3000 bar.

Is the Four-way diverter block, black galvanized steel, safe at 3000 bar without a metal-rubber seal?

No. The Four-way diverter block, black galvanized steel, is specified with a maximum working pressure of 3000 bar only in the general "Working pressure" line, but the note in parentheses clarifies that the maximum working pressure when using a metal-rubber seal is 1000 bar. The connection sealing type is an internal cone 120Â° and the product is supplied with one plug (CJ-HP-199501600). Because the higher safe pressure ratings depend on using the correct sealing system, and the specification explicitly limits metal-rubber sealed connections to 1000 bar, you cannot assume safe operation at 3000 bar without an appropriate metal-metal sealing arrangement rated for that pressure. Using the block at 3000 bar without a seal designed and certified for that pressure would be unsafe.

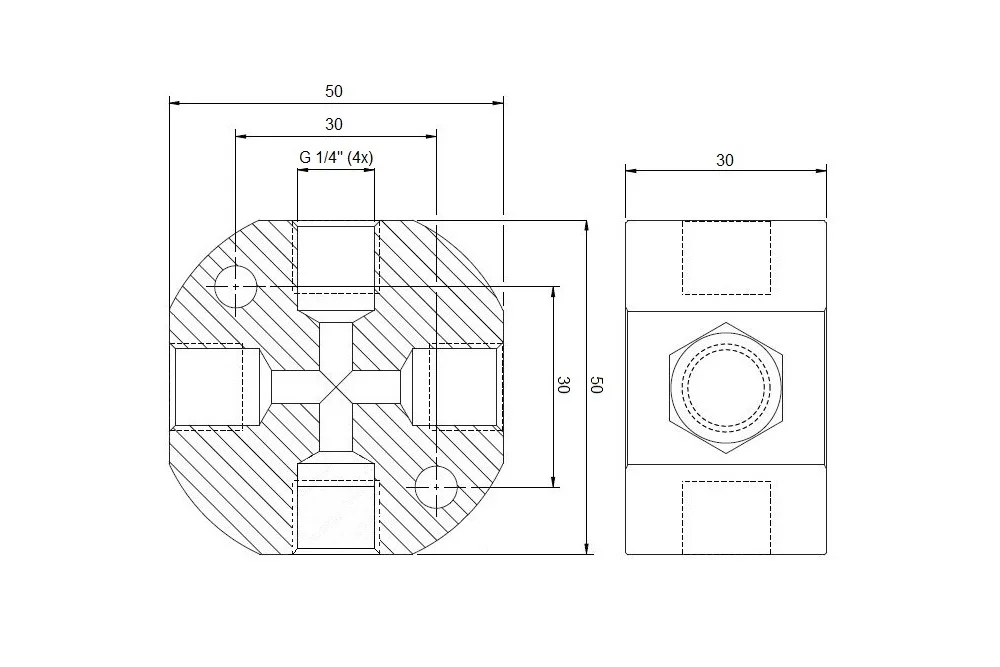

Four-way diverter block, black galvanized steel

All products, UHP adapters and accessories/

Additional information

Material	CS – steel (cast iron)

Four-way distribution block (supplied with one plug CJ-HP-199501600) allowing the connection of multiple high-pressure hoses to a single pump, as well as the connection of a pressure gauge. Made of black zinc-coated steel. Flow diameter 5 mm (3/16″). Connections: 4 x 1/4″ BSP. Connection sealing: internal cone 120°. Working pressure: 3000 bar (maximum working pressure when using a metal-rubber seal is 1000 bar).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
CJ-HP-199501680	Connection block 4x1/4" BSP, 3000 bar	-	3000	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Four-way distribution block (supplied with one plug CJ-HP-199501600) allowing the connection of multiple high-pressure hoses to a single pump, as well as the connection of a pressure gauge. Made of black zinc-coated steel. Flow diameter 5 mm (3/16″). Connections: 4 x 1/4″ BSP. Connection sealing: internal cone 120°. Working pressure: 3000 bar (maximum working pressure when using a metal-rubber seal is 1000 bar).
