Is the Adaptor for UHP with GZ, black galvanized steel, type 199501623 compatible with standard quick couplings and UHP hoses at 1500 bar?

Yes. The Adaptor for UHP with GZ, black galvanized steel, type 199501623 is compatible with standard quick couplings and UHP hoses at 1500 bar. It features an external BSP thread (sealing on an internal 60Â° cone) and an external NPT thread (sealing on the thread), specifically designed to allow connection of quick couplings and UHP hoses to each other and to UHP connection blocks. Material and working pressure (black galvanized steel, 1500 bar) match typical UHP system requirements.

Can Adaptor for UHP with GZ, black galvanized steel, type 199501623 be used to connect different manufacturers' quick couplings at 1500 bar?

Yes - Adaptor for UHP with GZ, black galvanized steel, type 199501623 can be used to connect quick couplings from different manufacturers at up to 1500 bar, provided the mating parts match the adaptorâs thread and sealing types: external BSP thread sealing on an internal 60Â° cone and external NPT thread sealing on the thread. It allows connection of quick couplings and UHP hoses to each other and to UHP connection blocks. Ensure the counterpart couplings use compatible BSP/NPT thread forms and cone/thread sealing methods and verify manufacturer compatibility and torque/spec requirements before use.

Does Adaptor for UHP with GZ, black galvanized steel, type 199501623 support sealing on BSP cone and NPT thread simultaneously at 1500 bar?

Adaptor for UHP with GZ, black galvanized steel, type 199501623 does not support simultaneous sealing on a BSP cone and an NPT thread. The product description states it has an external BSP thread that seals on an internal 60Â° cone and an external NPT thread that seals on the thread. These are two distinct sealing methods: the BSP side seals via cone-to-cone metal contact (60Â°), while the NPT side relies on the tapered thread form to achieve a seal. At 1500 bar the adapter is rated for either connection type functioning as intended, but you cannot rely on one joint to seal both interfaces at the same time as a single, concurrent sealing mechanism. Use the appropriate mating parts and sealing practice for each thread (correct BSP cone counterface and proper NPT male thread preparation or sealant) to ensure safe operation at 1500 bar.

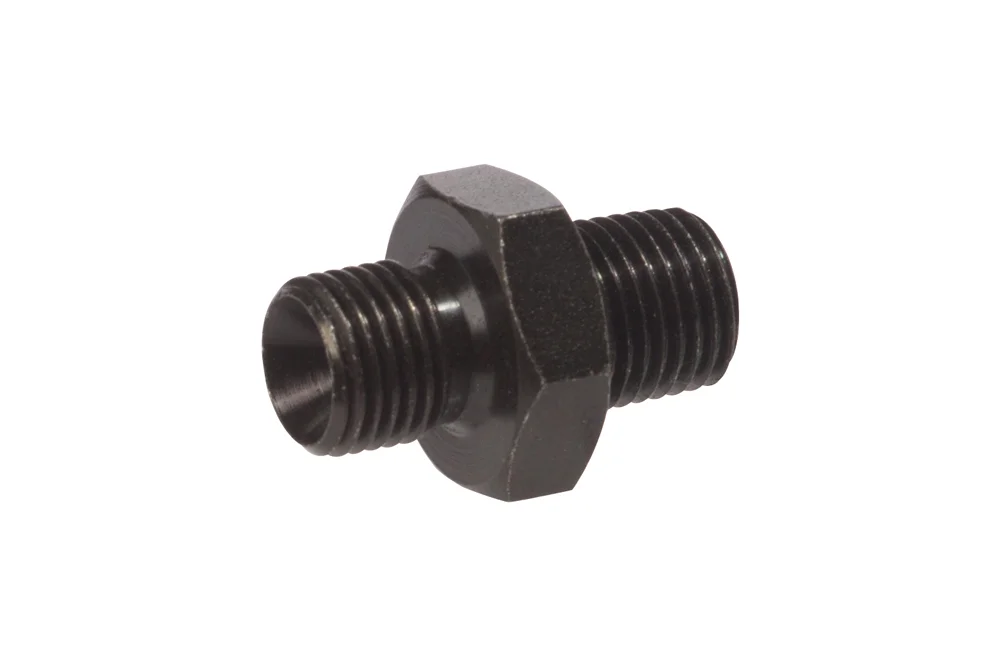

Adaptor for UHP with GZ, black galvanized steel, type 199501623

All products, UHP adapters and accessories/

Additional information

Material	CS – steel (cast iron)

Adapter with external BSP thread (seal on internal 60° cone) and external NPT thread (seal on thread) allowing the connection of quick couplings and UHP hoses to each other, as well as connecting them to UHP connection blocks. Material: black galvanized steel. Working pressure: 1500 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
CJ-HP-199501623	Adapter GZ 1/4" st. 60° / GZ 1/4" NPT, 1500 bar	-	1500	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Adapter with external BSP thread (seal on internal 60° cone) and external NPT thread (seal on thread) allowing the connection of quick couplings and UHP hoses to each other, as well as connecting them to UHP connection blocks. Material: black galvanized steel. Working pressure: 1500 bar.
