Is the Four-pronged with GW NPT stainless steel, 102H threaded tee (AISI 316) suitable for use in nuclear power and pharmaceutical environments?

Yes. The Four-pronged with GW NPT stainless steel, 102H threaded tee (AISI 316) is described as intended mainly for the chemical, petrochemical, pharmaceutical, energy, nuclear power, and process engineering industries, and its AISI 316 stainless-steel construction provides excellent corrosion resistance, good mechanical strength and compatibility with many aggressive media and hygienic requirements. These attributes make it suitable for use in pharmaceutical and nuclear power environments, provided it meets any additional project- or facility-specific standards, certifications and testing requirements (e.g., traceability, material certificates, surface finish, cleanliness, pressure/temperature ratings, seismic/structural qualifications, and regulatory or nuclear industry quality assurance). Always verify compliance with the exact codes and documentation required by the specific nuclear or pharmaceutical application before installation.

Can the Four-pronged with GW NPT stainless steel, 102H threaded tee (AISI 316) withstand corrosive chemicals in petrochemical and pharmaceutical systems?

Yes. The Four-pronged with GW NPT stainless steel, 102H (AISI 316) threaded tee is designed for chemical, petrochemical, pharmaceutical, energy, nuclear power and process engineering use. AISI 316 offers good corrosion resistance to many corrosive chemicals, including chlorides and moderate acids and alkalis commonly found in those industries. However, resistance depends on concentration, temperature, and presence of oxidizing agents; highly reducing or oxidizing media, strong acids (e.g., hot concentrated sulfuric or hydrochloric acid), and certain halogenated compounds can attack 316. For critical or extreme service, compatibility verification, material testing, or upgrading to higher-alloy (e.g., duplex or 6Mo alloys) is recommended.

Does the Four-pronged with GW NPT stainless steel, 102H threaded tee (AISI 316) meet ASME or ISO pressure ratings for chemical processing?

Not necessarily. the Four-pronged with GW NPT stainless steel, 102H threaded tee (AISI 316) does not automatically guarantee ASME or ISO pressure ratings for chemical processing based solely on the provided description. Explanation: The description (NPT threaded tee, type 102H, intended for chemical, petrochemical, pharmaceutical, energy, nuclear power, and process engineering industries; material AISI 316) indicates intended application and base material suitability (AISI 316 stainless steel resists corrosion common in many chemical environments). However, ASME (for example B16.11 for forged fittings, ASME B31.1/B31.3 for piping systems) and ISO standards specify required design, manufacturing, testing, and marking criteria that determine certified pressure ratings. To confirm compliance and rated working pressures you need documented evidence such as: - Manufacturerâs pressure-rating specification or data sheet stating design pressure and applicable standard (ASME or specific ISO standard), - Material traceability and heat-treatment records, - Dimensional and wall-thickness compliance with the referenced standard, - Pressure test certificates (hydrostatic or pneumatic) and non-destructive test reports, - Relevant certification/inspection stamps (e.g., ASME âUâ/âUMâ where applicable, or ISO conformity declaration), - Thread standard confirmation (NPT threads affect sealing method and rating compared with butt-weld fittings). Without those documents, you cannot assume the Four-pronged with GW NPT stainless steel, 102H threaded tee meets ASME or ISO pressure ratings for chemical processing. Request the manufacturerâs datasheet and certification package specifying the standard and allowable working pressures for the intended service conditions (temperature, chemical media, safety factor).

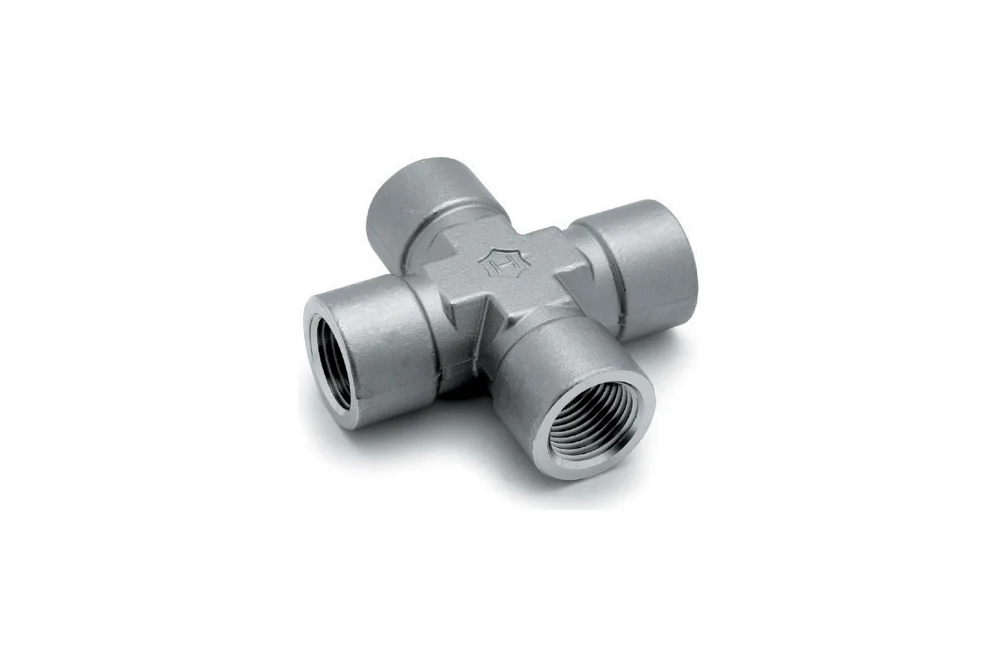

A cross with NPT female thread steel stainless, 102H

All products, Precision threaded fasteners/

Additional information

Material	SS – stainless steel

A cross with a thread internal NPT, type 102H, intended mainly for industry chemical, petrochemical, pharmaceutical, power generation, nuclear power plants and process engineering. Material: steel AISI 316.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HM-P102H-02-SS	Cross 4 x 1/8" NPT female, SS	-	448	In stock	Enquiry
HM-P102H-04-SS	Cross 4 x 1/4" NPT female, SS	-	455	In stock	Enquiry
HM-P102H-06-SS	Cross 4 x 3/8" NPT female, SS	-	366	In stock	Enquiry
HM-P102H-08-SS	Cross 4 x 1/2" NPT female, SS	-	338	In stock	Enquiry
HM-P102H-12-SS	Cross 4 x 3/4" NPT female, SS	-	317	In stock	Enquiry
HM-P102H-16-SS	Cross 4 x 1" NPT female, SS	-	303	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

A cross with a thread internal NPT, type 102H, intended mainly for industry chemical, petrochemical, pharmaceutical, power generation, nuclear power plants and process engineering. Material: steel AISI 316.
