Is the Elbow 90Â° with GW NPT/GZ NPT stainless steel, 116H compatible with AISI 316 corrosion-resistant welding and cleaning procedures for chemical and pharmaceutical applications?

Yes. Elbow 90Â° with GW NPT/GZ NPT stainless steel, 116H, made of AISI 316, is compatible with industry-standard corrosion-resistant welding and cleaning procedures used in chemical and pharmaceutical applications. AISI 316 offers excellent corrosion resistance (moist chloride environments, many chemicals) and is commonly accepted for pharmaceutical process equipment. The 116H 90Â° elbow with internal and external NPT threads is suitable for applications requiring hygienic cleaning (CIP/SIP) provided welding and installation follow proper practices: use qualified welders, proper filler metals (matching or compatible stainless fillers like 316L/316), control heat input, apply post-weld cleaning/passivation to remove iron contamination, and perform pickling/passivation or electropolishing as required by the application. For pharmaceutical use, verify surface finish, crevice-free jointing, and traceability/certification (material certificates, weld procedure specifications) to meet regulatory and GMP requirements. Also confirm compatibility with specific chemical exposures, pressure/temperature ratings, and any customer-specific validation before installation.

Does the Elbow 90Â° with GW NPT/GZ NPT stainless steel, 116H meet AISI 316 requirements for high-temperature service in petrochemical plants?

The Elbow 90Â° with GW NPT/GZ NPT stainless steel, 116H is made of AISI 316, which provides good corrosion resistance and mechanical properties up to moderately elevated temperatures. However, AISI 316 is not specifically qualified for high-temperature service in petrochemical plants where creep resistance, carburization resistance, and specific high-temperature mechanical properties are required; grades such as 316H (higher C for strength at temperature) or other alloyed stainless steels (e.g., 321, 347, duplex or nickel alloys) are typically specified. Therefore, unless the plantâs temperature and pressure limits fall within AISI 316âs allowable service range per applicable codes and the purchaser verifies operating conditions and certifications, the Elbow 90Â° with GW NPT/GZ NPT stainless steel, 116H generally does not meet typical high-temperature service requirements for petrochemical applications.

Can the Elbow 90Â° with GW NPT/GZ NPT stainless steel, 116H be used in nuclear power plant piping systems?

Yes. Elbow 90Â° with GW NPT/GZ NPT stainless steel, 116H can be used in nuclear power plant piping systems, but with conditions. Why itâs suitable: - The product description explicitly lists ânuclear powerâ among intended industries, indicating design intent for such applications. - Material AISI 316 (stainless steel) offers good corrosion resistance, mechanical strength and temperature performance suitable for many nuclear plant service conditions. - The 90Â° elbow geometry with internal/external NPT threads provides a standard threaded connection option used in various auxiliary and process systems. Conditions and limitations (must be verified case-by-case): - Compliance and certification: Nuclear applications normally require specific nuclear-grade materials, traceability (e.g., material test reports), and certifications (ASME, ASTM, NQA-1, or plant-specific vendor qualification). Confirm the elbowâs documentation meets the plantâs procurement and regulatory requirements. - Radiation, temperature and pressure: Verify the elbowâs rated pressure, temperature limits and long-term behavior under the actual service conditions (including radiation effects if applicable). - Leakage and mechanical integrity: Threaded NPT connections are generally less robust than welded or flanged joints for primary reactor coolant circuits. Use is typically limited to secondary systems, instrumentation, drain/vent lines, or non-safety-critical piping unless authorized by engineering analysis. - Seismic, fatigue and aging: Ensure the component meets seismic, fatigue and aging management criteria per plant engineering standards. - Compatibility: Confirm chemical compatibility with the specific fluids and any insulators, coatings or seals used. Conclusion: Elbow 90Â° with GW NPT/GZ NPT stainless steel, 116H is intended for nuclear power industry use and its AISI 316 construction can be acceptable, but final approval requires verification of certifications, mechanical ratings, service conditions and plant-specific engineering acceptance.

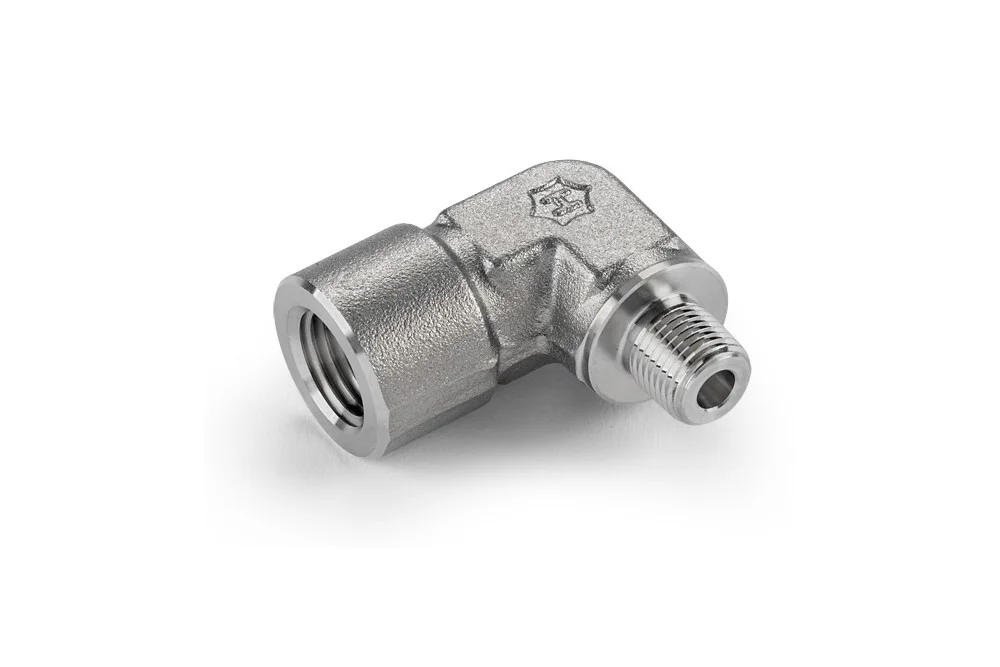

Elbow 90° with NPT female thread/NPT male steel stainless, 116H

All products, Precision threaded fasteners/

Additional information

Material	SS – stainless steel

Elbow 90° with a thread internal orawith a thread external NPT, type 116H, intended mainly for industry chemical, petrochemical, pharmaceutical, power generation, nuclear power plants and process engineering. Material: steel AISI 316.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HM-P116H-01-01-SS	Elbow 90° 1/16" NPT female / 1/16" NPT male, SS	-	462	In stock	Enquiry
HM-P116H-02-01-SS	Elbow 90° 1/8" NPT female / 1/16" NPT male, SS	-	462	In stock	Enquiry
HM-P116H-02-02-SS	Elbow 90° 1/8" NPT female / 1/8" NPT male, SS	-	448	In stock	Enquiry
HM-P116H-04-02-SS	Elbow 90° 1/4" NPT female / 1/8" NPT male, SS	-	448	In stock	Enquiry
HM-P116H-04-04-SS	Elbow 90° 1/4" NPT female / 1/4" NPT male, SS	-	455	In stock	Enquiry
HM-P116H-06-04-SS	Elbow 90° 3/8" NPT female / 1/4" NPT male, SS	-	455	In stock	Enquiry
HM-P116H-06-06-SS	Elbow 90° 3/8" NPT female / 3/8" NPT male, SS	-	366	In stock	Enquiry
HM-P116H-08-04-SS	Elbow 90° 1/2" NPT female / 1/4" NPT male, SS	-	455	In stock	Enquiry
HM-P116H-08-06-SS	Elbow 90° 1/2" NPT female / 3/8" NPT male, SS	-	366	In stock	Enquiry
HM-P116H-08-08-SS	Elbow 90° 1/2" NPT female / 1/2" NPT male, SS	-	338	In stock	Enquiry
HM-P116H-12-12-SS	Elbow 90° 3/4" NPT female / 3/4" NPT male, SS	-	317	In stock	Enquiry
HM-P116H-16-12-SS	Elbow 90° 1" NPT female / 3/4" NPT male, SS	-	317	In stock	Enquiry
HM-P116H-16-16-SS	Elbow 90° 1" NPT female / 1" NPT male, SS	-	303	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Elbow 90° with a thread internal orawith a thread external NPT, type 116H, intended mainly for industry chemical, petrochemical, pharmaceutical, power generation, nuclear power plants and process engineering. Material: steel AISI 316.
