Is the GAI-M nut fitting, carbon steel, compatible with both L (light) and S (heavy) series 24Â° DIN 2353 sockets with external and internal metric threads?

Yes. The GAI-M nut fitting, carbon steel (24Â° DIN 2353 socket with external metric thread and internal metric thread) is compatible with both L (light) and S (heavy) series 24Â° DIN 2353 sockets. The product description explicitly lists availability as L (light series) and S (heavy series), and the 24Â° DIN 2353 standard ensures mating geometry between corresponding series and metric threads. Galvanized carbon steel construction does not affect thread/seat compatibility.

Can the GAI-M nut fitting, carbon steel, be used with galvanized 24Â° DIN 2353 sockets having either external or internal metric threads?

Yes. The GAI-M nut fitting, carbon steel can be used with 24Â° DIN 2353 sockets that have either external or internal metric threads. Both light (L) and heavy (S) series sockets made of carbon steel, galvanized, match the GAI-M 24Â° DIN 2353 specification and are designed to be compatible with metric-threaded socket variants. Ensure correct series (L or S) and proper assembly torque per DIN 2353 to achieve a secure, leak-free connection.

Does the GAI-M nut fitting, carbon steel, fit both L and S series 24Â° DIN 2353 metric-thread sockets?

Yes. The GAI-M nut fitting, carbon steel fits both L (light) and S (heavy) series 24Â° DIN 2353 metric-thread sockets, because the DIN 2353 specification lists this type as a 24Â° socket with external and internal metric threads and is available in both L and S series.

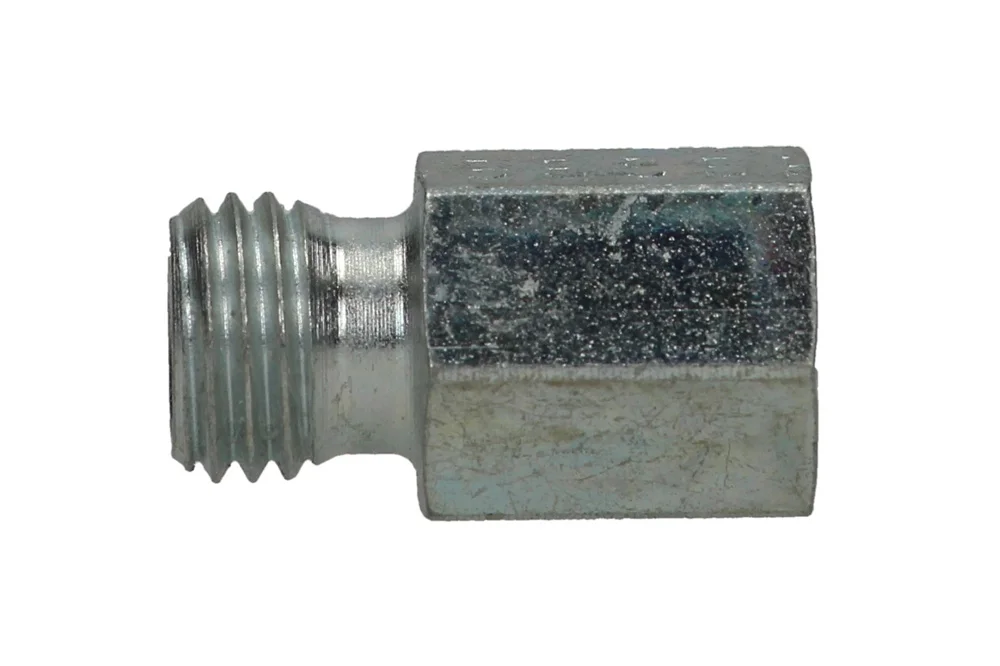

Fitting with union nut GAI-M, carbon steel

Additional information

Material	CS – steel (cast iron)

Fitting DIN 2353 with union nut, type GAI-M: 24° DIN 2353 socket with metric male thread and with metric female thread. Available as: L (series light), S (series heavy). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-GAI-06L-M-10	Fitting DIN 2353 GAI 6L M10x1	-	315	In stock	Enquiry
HD-GAI-06S-M-12	Fitting DIN 2353 GAI 6S M12x1.5	-	630	In stock	Enquiry
HD-GAI-08L-M-12	Fitting DIN 2353 GAI 8L M12x1.5	-	315	In stock	Enquiry
HD-GAI-08S-M-14	Fitting DIN 2353 GAI 8S M14x1.5	-	630	In stock	Enquiry
HD-GAI-10L-M-14	Fitting DIN 2353 GAI 10L M14x1.5	-	315	In stock	Enquiry
HD-GAI-10S-M-16	Fitting DIN 2353 GAI 10S M16x1.5	-	630	In stock	Enquiry
HD-GAI-12L-M-16	Fitting DIN 2353 GAI 12L M16x1.5	-	315	In stock	Enquiry
HD-GAI-12S-M-18	Fitting DIN 2353 GAI 12S M18x1.5	-	630	In stock	Enquiry
HD-GAI-14S-M-20	Fitting DIN 2353 GAI 14S M20x1.5	-	630	In stock	Enquiry
HD-GAI-15L-M-18	Fitting DIN 2353 GAI 15L M18x1.5	-	315	In stock	Enquiry
HD-GAI-16S-M-22	Fitting DIN 2353 GAI 16S M22x1.5	-	400	In stock	Enquiry
HD-GAI-18L-M-22	Fitting DIN 2353 GAI 18L M22x1.5	-	315	In stock	Enquiry
HD-GAI-20S-M-27	Fitting DIN 2353 GAI 20S M27x2	-	400	In stock	Enquiry
HD-GAI-22L-M-26	Fitting DIN 2353 GAI 22L M26x1.5	-	160	In stock	Enquiry
HD-GAI-25S-M-33	Fitting DIN 2353 GAI 25S M33x2	-	400	In stock	Enquiry
HD-GAI-28L-M-33	Fitting DIN 2353 GAI 28L M33x2	-	160	In stock	Enquiry
HD-GAI-30S-M-42	Fitting DIN 2353 GAI 30S M42x2	-	400	In stock	Enquiry
HD-GAI-35L-M-42	Fitting DIN 2353 GAI 35L M42x2	-	160	In stock	Enquiry
HD-GAI-38S-M-48	Fitting DIN 2353 GAI 38S M48x2	-	315	In stock	Enquiry
HD-GAI-42L-M-48	Fitting DIN 2353 GAI 42L M48x2	-	160	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Fitting DIN 2353 with union nut, type GAI-M: 24° DIN 2353 socket with metric male thread and with metric female thread. Available as: L (series light), S (series heavy). Material: carbon steel, galvanized.
