Is the GAI-N nut cap connection, stainless steel (24Â° DIN 2353, AISI 316) available in both L (light) and S (heavy) series with a 2.5:1 safety factor?

Yes. The GAI-N nut cap connection, stainless steel (24Â° DIN 2353, AISI 316) is available in both L (light) and S (heavy) series and is specified with a 2.5:1 safety factor. The connection corresponds to DIN 2353 screw connection, type GAI-N (24Â° socket with external metric thread and internal NPT thread), material AISI 316.

Does the GAI-N nut cap connection, stainless steel, 24Â° DIN 2353, AISI 316, come with an internal NPT thread option?

Yes. The GAI-N nut cap connection, stainless steel, 24Â° DIN 2353, AISI 316 is available with an internal NPT thread option - it is described as a 24Â° DIN 2353 socket with external metric thread and internal NPT thread. Available in L (light) and S (heavy) series, safety factor 2.5:1.

Can the GAI-N nut cap connection, stainless steel, 24Â° DIN 2353, AISI 316, be ordered with different thread lengths for L and S series?

Yes. The GAI-N nut cap connection, stainless steel, 24Â° DIN 2353, AISI 316 can be ordered with different thread lengths for the L (light) and S (heavy) series. Per DIN 2353 design practice, L and S series parts share the same sealing geometry (24Â° cone) and external dimensions where required, but differ in wall thickness and thread engagement length to suit light or heavy-duty applications. Therefore the GAI-N variant is offered in both L and S versions with the respective thread lengths and mechanical properties appropriate to each series. When ordering, specify the series (L or S) so the manufacturer supplies the correct thread length and strength (safety factor 2.5:1) for your application.

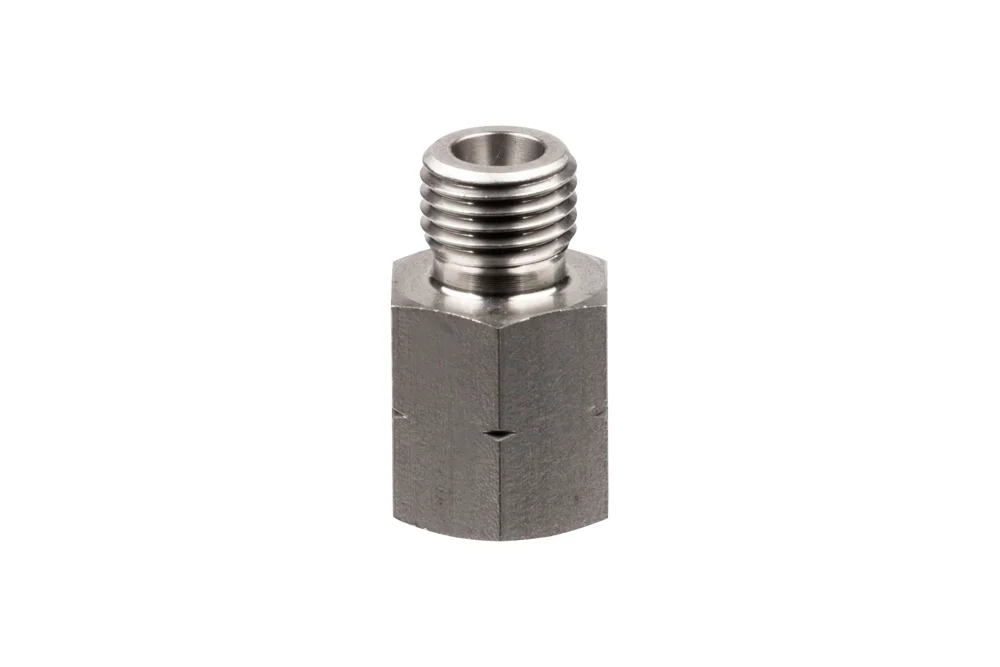

GAI-N nut cap connection, stainless steel

Additional information

Material	SS – stainless steel

DIN 2353 screw connection, type GAI-N: 24° DIN 2353 socket with external metric thread and internal NPT thread. Safety factor 2.5:1. Available as: L (light series), S (heavy series). Material: AISI 316 steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
HD-GAI-06S-N-04-SS	DIN 2353 connector GAI 6S 1/4" NPT, AISI 316	-	630	In stock	0 zł		Enquiry
HD-GAI-15L-N-08-SS	DIN2353 fitting GAI 15L 1/2" NPT, AISI 316	-	315	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

DIN 2353 screw connection, type GAI-N: 24° DIN 2353 socket with external metric thread and internal NPT thread. Safety factor 2.5:1. Available as: L (light series), S (heavy series). Material: AISI 316 steel.
