Is the Butterfly valve for gas, manually operated type 1141H certified to PED 2014/68/EU and NF ROBGAZ for use in MOP5 gas installations?

Yes. Butterfly valve for gas, manually operated type 1141H is certified to PED 2014/68/EU and holds NF ROBGAZ certification for use in MOP5 gas installations. The product description states it meets the PED 2014/68/EU requirements and has NF ROBGAZ certification for compliance with EN 13774 and EN 549, and it is specified for industrial gas installations in pressure class MOP5.

Does the Butterfly valve for gas, manually operated type 1141H support pneumatic actuator mounting for MOP5 installations?

Butterfly valve for gas, manually operated type 1141H: Yes. The valve is designed for industrial gas installations in pressure class MOP5 and explicitly can be operated manually or by a pneumatic actuator, so it supports pneumatic actuator mounting for MOP5 installations. Materials, flange/ASA connections and PED/NF ROBGAZ certifications confirm suitability for MOP5 gas service.

Can Butterfly valve for gas, manually operated type 1141H be used in temperatures from -20Â°C to +60Â°C?

Yes. Butterfly valve for gas, manually operated type 1141H can be used at temperatures from â20Â°C to +60Â°C. The product specification explicitly lists an operating temperature range of â20Â°C to +60Â°C, and materials and seals (NBR, stainless steel, ductile iron, epoxy coating, aluminum lever) are consistent with that stated range. Ensure that installation and service conditions (pressure, medium composition, and certification requirements) match the valveâs MOP5 rating and relevant standards (PED 2014/68/EU, EN 13774, EN 549) for safe operation.

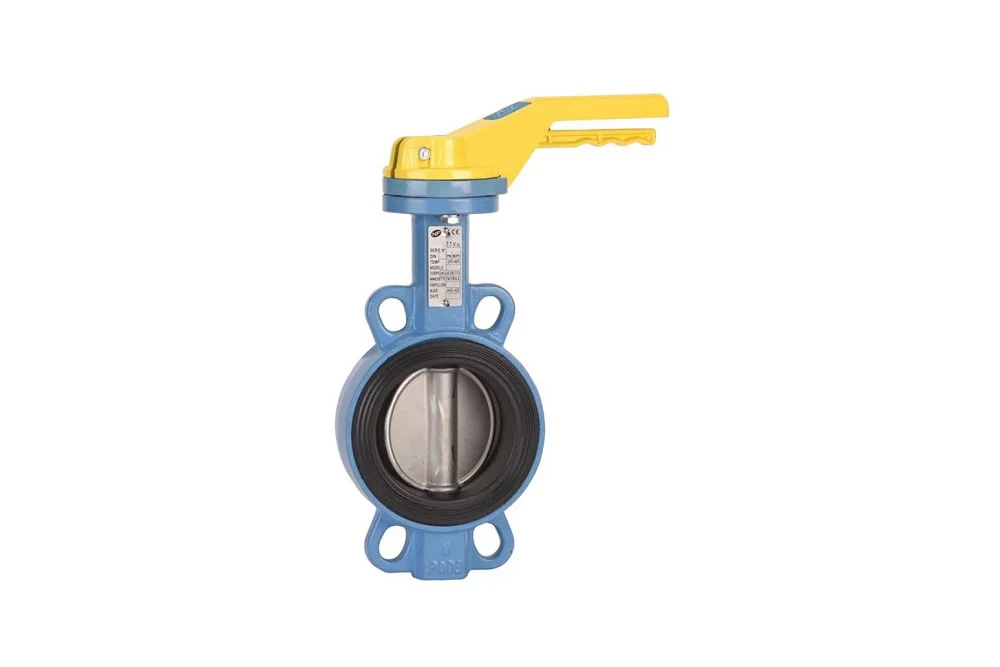

Butterfly valve for gas, manually operated type 1141H

All products, Butterfly valves (dampers)/

Additional information

Material	SS – stainless steel

Butterfly valve, between-flange, centric, WAFER type, intended for industrial gas installations, in pressure class MOP5. It can be opened and closed manually or by a pneumatic actuator. The handle positions the valve in 9 positions: “open,” “closed,” and intermediate positions. It meets the requirements of the PED directive 2014/68/EU. It has NF ROBGAZ certification for compliance with standards EN 13774 and EN 549. Body material: ductile iron EN-GJS-500-7, coated with epoxy 250 ÷ 300 µm. Disc material: stainless steel CF8M (up to DN100), ductile iron EN-GJS-500-7 (from DN125). Stem material: stainless steel AISI 420. Lever material: aluminum. Disc and stem sealing: NBR. Connection: flange PN10/PN16 for DN32 ÷ DN200, ASA150 for DN40 ÷ DN200. Operating temperature: from -20°C to +60°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TD-1141-040H	Butterfly valve type 1141, DN 40, manual drive	40	5	In stock	Enquiry
TD-1141-050H	Butterfly valve type 1141, DN 50, manual drive	50	5	In stock	Enquiry
TD-1141-065H	Butterfly valve type 1141, DN 65, manual drive	65	5	In stock	Enquiry
TD-1141-080H	Butterfly valve type 1141, DN 80, manual drive	80	5	In stock	Enquiry
TD-1141-100H	Butterfly valve type 1141, DN 100, manual drive	100	5	In stock	Enquiry
TD-1141-125H	Butterfly valve type 1141, DN 125, manual drive	125	5	In stock	Enquiry
TD-1141-150H	Butterfly valve type 1141, DN 150, manual drive	150	5	In stock	Enquiry
TD-1141-200H	Butterfly valve type 1141, DN 200, manual drive	200	5	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Butterfly valve, between-flange, centric, WAFER type, intended for industrial gas installations, in pressure class MOP5. It can be opened and closed manually or by a pneumatic actuator. The handle positions the valve in 9 positions: “open,” “closed,” and intermediate positions. It meets the requirements of the PED directive 2014/68/EU. It has NF ROBGAZ certification for compliance with standards EN 13774 and EN 549. Body material: ductile iron EN-GJS-500-7, coated with epoxy 250 ÷ 300 µm. Disc material: stainless steel CF8M (up to DN100), ductile iron EN-GJS-500-7 (from DN125). Stem material: stainless steel AISI 420. Lever material: aluminum. Disc and stem sealing: NBR. Connection: flange PN10/PN16 for DN32 ÷ DN200, ASA150 for DN40 ÷ DN200. Operating temperature: from -20°C to +60°C.
