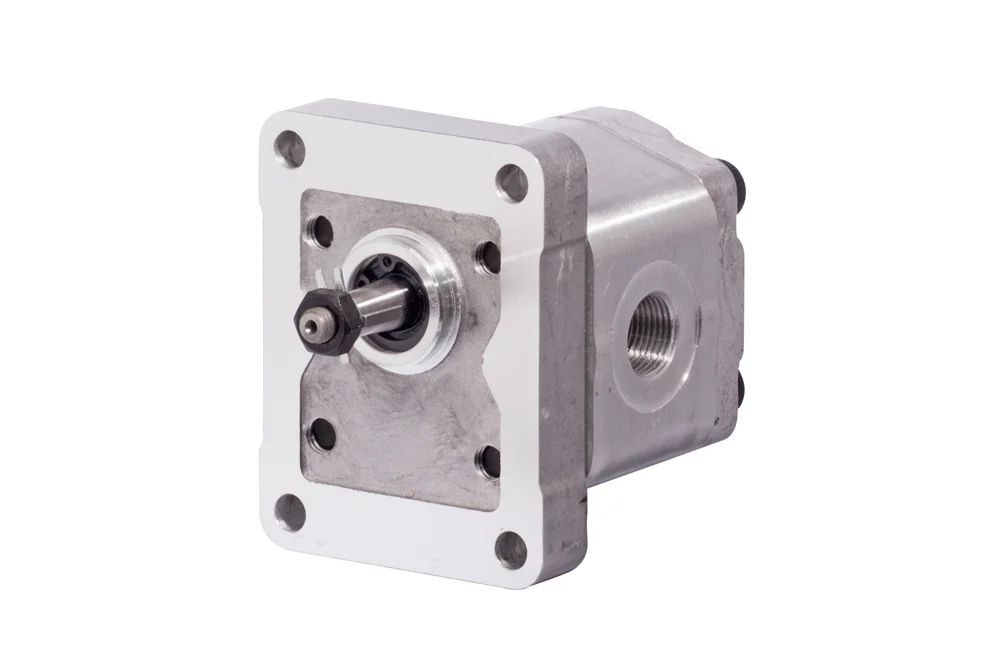

Gear displacement pump, Ø25.4 mm plate, left direction of rotation, threaded connections, TRALE
Gear displacement pump (hydraulic), TRALE, with external gearing, intended for use in hydraulic systems of machines and equipment. Connections: BSP threaded. Direction of rotation: left. The stated maximum operating pressure applies to continuous operation. Material: body and mounting plate – aluminum, rear cover – aluminum. Sealing: NBR. Medium: hydraulic oil type L-HM45 or equivalent. Liquid viscosity: from 10 cSt to 600 cSt (recommended 30 ÷ 45). Operating temperature: from -20°C to +90°C (medium), from -20°C to +60°C (environment).
List of product variants
Do you need a larger quantity of products or a bespoke quote?
Gear displacement pump (hydraulic), TRALE, with external gearing, intended for use in hydraulic systems of machines and equipment. Connections: BSP threaded. Direction of rotation: left. The stated maximum operating pressure applies to continuous operation. Material: body and mounting plate – aluminum, rear cover – aluminum. Sealing: NBR. Medium: hydraulic oil type L-HM45 or equivalent. Liquid viscosity: from 10 cSt to 600 cSt (recommended 30 ÷ 45). Operating temperature: from -20°C to +90°C (medium), from -20°C to +60°C (environment).
Additional information
| Maximum operating temperature [°C] | 90 |
|---|---|
| Minimum operating temperature [°C] | -20 |
