Is the DIN 3015 heavy duty clamp, polypropylene, type 201 suitable for outdoor marine use at temperatures down to -30Â°C?

Yes . the DIN 3015 heavy duty clamp, polypropylene, type 201 is suitable for outdoor marine use down to â30Â°C. The product description explicitly lists marine installations and an operating temperature range from â30Â°C to +90Â°C. Materials (polypropylene clamp body, galvanized steel screws and plates, carbon steel base) are standard for marine applications; however, for long-term corrosion resistance in harsh seawater environments you may want to confirm surface treatment/thickness of the galvanized parts or specify stainless steel options and discuss welding versus bolted/rail mounting with TUBES INTERNATIONALÂ® to ensure optimal durability.

Can the DIN 3015 heavy duty clamp, polypropylene, type 201 be welded to carbon steel structures without compromising corrosion resistance?

Yes - DIN 3015 heavy duty clamp, polypropylene, type 201 can be welded to carbon steel structures because its base is specified as carbon steel and the product description states the clamp is mounted to the structure using welding of the clamp base. Welding the carbon steel base itself does not inherently compromise the corrosion resistance of the polypropylene clamp body, provided proper welding practices are used so heat and spatter do not damage the polymer. Note that screws and plates are galvanized steel; welding may affect nearby galvanization and any exposed steel welds should be treated or coated afterward to restore corrosion protection. For critical or marine installations, confirm joint preparation, post-weld corrosion protection, and any specific compatibility or installation guidance with TUBES INTERNATIONALÂ®.

Can the DIN 3015 heavy duty clamp, polypropylene, type 201 be mounted using rails or bolted bases instead of welding?

Yes. The DIN 3015 heavy duty clamp, polypropylene, type 201 can be mounted without welding. Although the standard mounting method is welding the clamp base to the structure, the product description explicitly states there is an option for bolting or mounting on a rail. Extended plates, rails and screws for mounting clamp sets are available as additional components; selection of the correct combination should be consulted with TUBES INTERNATIONALÂ®. Materials and limits to consider: clamp. green polypropylene; screws and plates. galvanized steel; base. carbon steel; operating temperature â30Â°C to +90Â°C. Ensure chosen bolted or rail-mounted hardware and installation method suit the load, vibration, and environmental conditions of your application and follow manufacturer recommendations.

DIN 3015 heavy duty clamp, polypropylene, type 201

All products, Clamps for hydraulic pipes/

Additional information

Material	P – material (plastic)

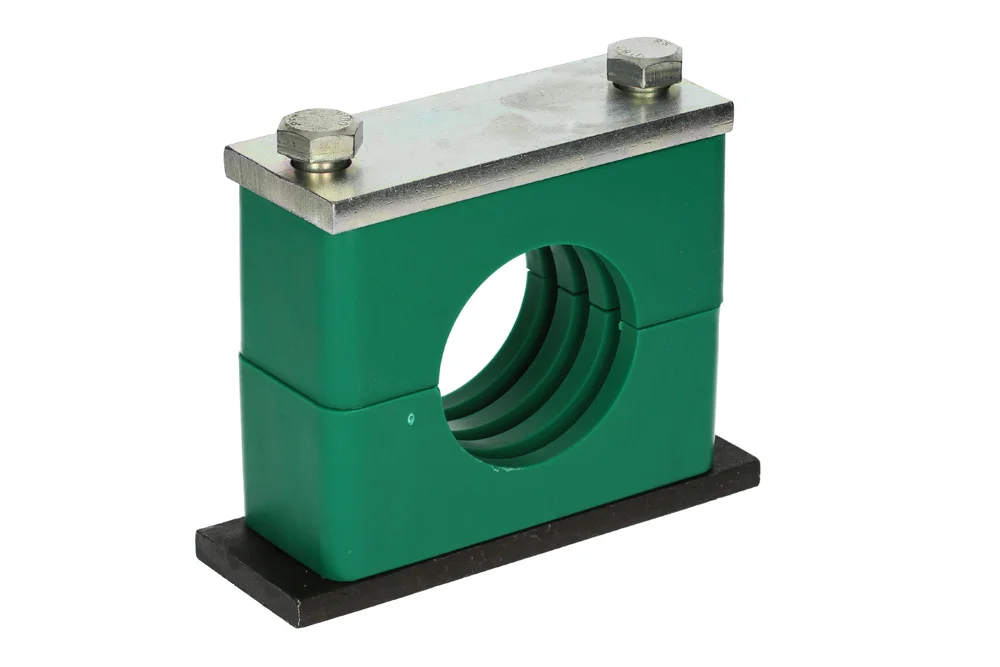

DIN 3015 heavy clamp type 201 (with top plate) designed for quick, easy, durable, and aesthetic mounting of pipes, hoses, and hoses in various industrial sectors, in ground and marine installations. Manufactured according to DIN 3015 standard. The clamp is mounted to the structure using welding of the clamp base (there is an option for bolting or mounting on a rail). The clamp typically features a profiled (grooved) surface for the pipe opening. In addition to standard metal components, extended plates, rails, and screws for mounting clamp sets can be ordered. Selection of components should be consulted with TUBES INTERNATIONAL®. Clamp material: green polypropylene. Screw material: galvanized steel. Plate material: galvanized steel. Base material: carbon steel. Operating temperature: from -30°C to +90°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TC-PP201-106	DIN3015 heavy PP clamp for 6 mm pipe	-	-	In stock	Enquiry
TC-PP201-106,4	DIN3015 heavy PP clamp for 6.4 mm pipe	-	-	In stock	Enquiry
TC-PP201-108	DIN3015 heavy PP clamp for 8 mm pipe	-	-	In stock	Enquiry
TC-PP201-109,5	DIN3015 heavy PP clamp for 9.5 mm pipe	-	-	In stock	Enquiry
TC-PP201-110	DIN3015 heavy PP clamp for 10 mm pipe	-	-	In stock	Enquiry
TC-PP201-112	DIN3015 heavy PP clamp for 12 mm pipe	-	-	In stock	Enquiry
TC-PP201-112,7	DIN3015 heavy PP clamp for 12.7 mm pipe	-	-	In stock	Enquiry
TC-PP201-113,5	DIN3015 heavy PP clamp for 13.5 mm pipe	-	-	In stock	Enquiry
TC-PP201-114	DIN3015 heavy PP clamp for 14 mm pipe	-	-	In stock	Enquiry
TC-PP201-115	DIN3015 heavy PP clamp for 15 mm pipe	-	-	In stock	Enquiry
TC-PP201-116	DIN3015 heavy PP clamp for 16 mm pipe	-	-	In stock	Enquiry
TC-PP201-117,2	DIN3015 heavy PP clamp for 17.2 mm pipe	-	-	In stock	Enquiry
TC-PP201-118	DIN3015 heavy PP clamp for 18 mm pipe	-	-	In stock	Enquiry
TC-PP201-219	DIN3015 heavy PP clamp for 19 mm pipe	-	-	In stock	Enquiry
TC-PP201-220	DIN3015 heavy PP clamp for 20 mm pipe	-	-	In stock	Enquiry
TC-PP201-221,3	DIN3015 heavy PP clamp for 21.3 mm pipe	-	-	In stock	Enquiry
TC-PP201-222	DIN3015 heavy PP clamp for 22 mm pipe	-	-	In stock	Enquiry
TC-PP201-225	DIN3015 heavy PP clamp for 25 mm pipe	-	-	In stock	Enquiry
TC-PP201-225,4	DIN3015 heavy PP clamp for 25.4 mm pipe	-	-	In stock	Enquiry
TC-PP201-226,9	DIN3015 heavy PP clamp for 26.9 mm pipe	-	-	In stock	Enquiry
TC-PP201-228	DIN3015 heavy PP clamp for 28 mm pipe	-	-	In stock	Enquiry
TC-PP201-230	DIN3015 heavy PP clamp for 30 mm pipe	-	-	In stock	Enquiry
TC-PP201-330	DIN3015 heavy PP clamp for 30 mm pipe	-	-	In stock	Enquiry
TC-PP201-332	DIN3015 heavy PP clamp for 32 mm pipe	-	-	In stock	Enquiry
TC-PP201-333,7	DIN3015 heavy PP clamp for 33.7 mm pipe	-	-	In stock	Enquiry
TC-PP201-335	DIN3015 heavy PP clamp for 35 mm pipe	-	-	In stock	Enquiry
TC-PP201-338	DIN3015 heavy PP clamp for 38 mm pipe	-	-	In stock	Enquiry
TC-PP201-340	DIN3015 heavy PP clamp for 40 mm pipe	-	-	In stock	Enquiry
TC-PP201-342	DIN3015 heavy PP clamp for 42 mm pipe	-	-	In stock	Enquiry
TC-PP201-342,4	DIN3015 heavy PP clamp for 42.4 mm pipe	-	-	In stock	Enquiry
TC-PP201-438	DIN3015 heavy PP clamp for 38 mm pipe	-	-	In stock	Enquiry
TC-PP201-442	DIN3015 heavy PP clamp for 42 mm pipe	-	-	In stock	Enquiry
TC-PP201-442,4	DIN3015 heavy PP clamp for 42.4 mm pipe	-	-	In stock	Enquiry
TC-PP201-444,5	DIN3015 heavy PP clamp for 44.5 mm pipe	-	-	In stock	Enquiry
TC-PP201-448,3	DIN3015 heavy PP clamp for 48.3 mm pipe	-	-	In stock	Enquiry
TC-PP201-450	DIN3015 heavy PP clamp for 50 mm pipe	-	-	In stock	Enquiry
TC-PP201-450,8	DIN3015 heavy PP clamp for 50.8 mm pipe	-	-	In stock	Enquiry
TC-PP201-455	DIN3015 heavy PP clamp for 55 mm pipe	-	-	In stock	Enquiry
TC-PP201-457	DIN3015 heavy PP clamp for 57 mm pipe	-	-	In stock	Enquiry
TC-PP201-460,3	DIN3015 heavy PP clamp for 60.3 mm pipe	-	-	In stock	Enquiry
TC-PP201-463,5	DIN3015 heavy PP clamp for 63.5 mm pipe	-	-	In stock	Enquiry
TC-PP201-465	DIN3015 heavy PP clamp for 65 mm pipe	-	-	In stock	Enquiry
TC-PP201-470	DIN3015 heavy PP clamp for 70 mm pipe	-	-	In stock	Enquiry
TC-PP201-565	DIN3015 heavy PP clamp for 65 mm pipe	-	-	In stock	Enquiry
TC-PP201-570	DIN3015 heavy PP clamp for 70 mm pipe	-	-	In stock	Enquiry
TC-PP201-575	DIN3015 heavy PP clamp for 75 mm pipe	-	-	In stock	Enquiry
TC-PP201-576,1	DIN3015 heavy PP clamp for 76.1 mm pipe	-	-	In stock	Enquiry
TC-PP201-580	DIN3015 heavy PP clamp for 80 mm pipe	-	-	In stock	Enquiry
TC-PP201-582,5	DIN3015 heavy PP clamp for pipe 82.5 mm	-	-	In stock	Enquiry
TC-PP201-588,9	DIN3015 heavy PP clamp for pipe 88.9 mm	-	-	In stock	Enquiry
TC-PP201-6100	DIN3015 heavy PP clamp for 100 mm pipe	-	-	In stock	Enquiry
TC-PP201-6101,6	DIN3015 heavy PP clamp for pipe 101.6 mm	-	-	In stock	Enquiry
TC-PP201-6108	DIN3015 heavy PP clamp for 108 mm pipe	-	-	In stock	Enquiry
TC-PP201-6114,3	DIN3015 heavy PP clamp for pipe 114.3 mm	-	-	In stock	Enquiry
TC-PP201-6127	DIN3015 heavy PP clamp for 127 mm pipe	-	-	In stock	Enquiry
TC-PP201-6133	DIN3015 heavy PP clamp for 133 mm pipe	-	-	In stock	Enquiry
TC-PP201-688,9	DIN3015 heavy PP clamp for 88.9 mm pipe	-	-	In stock	Enquiry
TC-PP201-7133	DIN3015 heavy PP clamp for 133 mm pipe	-	-	In stock	Enquiry
TC-PP201-7139,7	DIN3015 heavy PP clamp for pipe 139.7 mm	-	-	In stock	Enquiry
TC-PP201-7152,4	DIN3015 heavy PP clamp for pipe 152.4 mm	-	-	In stock	Enquiry
TC-PP201-7165	DIN3015 heavy PP clamp for 165 mm pipe	-	-	In stock	Enquiry
TC-PP201-7168,3	DIN3015 heavy PP clamp for pipe 168.3 mm	-	-	In stock	Enquiry
TC-PP201-8168,3	DIN3015 heavy PP clamp for pipe 168.3 mm	-	-	In stock	Enquiry
TC-PP201-8177,8	DIN3015 heavy PP clamp for pipe 177.8 mm	-	-	In stock	Enquiry
TC-PP201-8193,7	DIN3015 heavy PP clamp for pipe 193.7 mm	-	-	In stock	Enquiry
TC-PP201-8216	DIN3015 heavy PP clamp for pipe 216 mm	-	-	In stock	Enquiry
TC-PP201-8219,1	DIN3015 heavy PP clamp for pipe 219.1 mm	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

DIN 3015 heavy clamp type 201 (with top plate) designed for quick, easy, durable, and aesthetic mounting of pipes, hoses, and hoses in various industrial sectors, in ground and marine installations. Manufactured according to DIN 3015 standard. The clamp is mounted to the structure using welding of the clamp base (there is an option for bolting or mounting on a rail). The clamp typically features a profiled (grooved) surface for the pipe opening. In addition to standard metal components, extended plates, rails, and screws for mounting clamp sets can be ordered. Selection of components should be consulted with TUBES INTERNATIONAL®. Clamp material: green polypropylene. Screw material: galvanized steel. Plate material: galvanized steel. Base material: carbon steel. Operating temperature: from -30°C to +90°C.
