Is the Allen screw for DIN 3015 standard clamp made of carbon steel and supplied zincâgalvanized with an external metric thread?

Yes. The Allen screw for DIN 3015 standard clamp (Format) is made of carbon steel, supplied zincâgalvanized, and comes with an external metric thread, as stated in the product description: "Hex socket screw for clamp DIN 3015 standard complete type 100 with external metric thread. Material: carbon steel, galvanized."

Does the Allen screw for DIN 3015 standard clamp come with an external metric thread and a zincâgalvanized carbon steel finish?

Yes. The Allen screw for DIN 3015 standard clamp comes with an external metric thread and a zincâgalvanized carbon steel finish.

Does the Allen screw for DIN 3015 standard clamp feature a complete type 100 design with external metric thread?

Yes. The Allen screw for DIN 3015 standard clamp described is a complete type 100 design with an external metric thread. The product name explicitly states "Hex socket screw for clamp DIN 3015 standard complete type 100 with external metric thread," and the material specified (carbon steel, galvanized) is consistent with typical fasteners of that variant. Therefore the screw matches the complete type 100 specification and features an external metric thread.

Bolt Allen for clamp DIN 3015 standard

All products, Clamps for hydraulic pipes/

Additional information

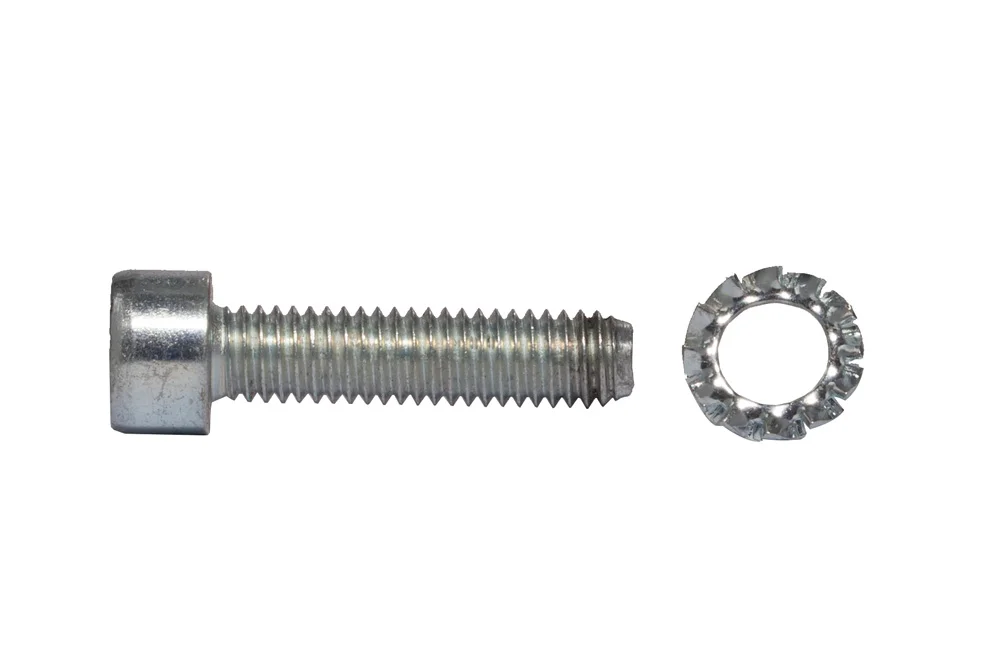

A bolt with an Allen head for a complete DIN 3015 standard clamp type 100 with a male metric thread. Material: steel carbon, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TC-AVTC-0	Bolt M6x20, clamp standard group 0÷1 (hex socket)	-	-	In stock	Enquiry
TC-AVTC-2	Bolt M6x25, clamp standard group 2 (hex socket)	-	-	In stock	Enquiry
TC-AVTC-3	Bolt M6x30, clamp standard group 3 (hex socket)	-	-	In stock	Enquiry
TC-AVTC-4	Bolt M6x35, clamp standard group 4 (hex socket)	-	-	In stock	Enquiry
TC-AVTC-5	Bolt M6x50, clamp standard group 5 (hex socket)	-	-	In stock	Enquiry
TC-AVTC-6	Bolt M6x60, clamp standard group 6 (hex socket)	-	-	In stock	Enquiry
