Is the Hexagon socket plug with GZ NPT stainless steel, 107H, compatible with aggressive chemicals and suitable for use in nuclear and petrochemical environments?

Hexagon socket plug with GZ NPT stainless steel, 107H, made of AISI 316 (stainless) steel, is designed for chemical, petrochemical, pharmaceutical, energy, nuclear power and process-engineering applications. AISI 316 stainless steel offers good corrosion resistance to many aggressive chemicals (chlorides, acids, solvents) and performs well in a wide range of process environments. However, suitability for specific aggressive chemicals and for nuclear or certain petrochemical service cannot be guaranteed from the description alone. Compatibility depends on process media, concentration, temperature, pressure, and presence of corrosive agents (e.g., hot concentrated chlorides, strong oxidizers, H2S, fluorides) that can attack 316. Nuclear applications may also demand special qualifications (material traceability, heat treatment, surface condition, testing, radiation resistance, and regulatory certification) beyond basic 316 composition. Recommendation: verify compatibility case-by-case. For aggressive chemistries or regulated nuclear/petrochemical service, consult material-compatibility data for AISI 316 against the specific media and operating conditions, and request manufacturer documentation for certifications, traceability, and any required special treatments or alternative alloys (e.g., duplex, super-austenitic, or nickel alloys) if needed.

Can Hexagon socket plug with GZ NPT stainless steel, 107H, withstand high-temperature steam and corrosive process fluids in pharmaceutical plants?

Hexagon socket plug with GZ NPT stainless steel, 107H, made from AISI 316 stainless steel, is well suited for many pharmaceutical plant applications involving high-temperature steam and corrosive process fluids. AISI 316 offers good corrosion resistance to chlorides and many chemicals and retains strength at elevated temperatures typical for steam. However, suitability depends on specific conditions: maximum steam temperature/pressure, fluid chemistry (concentration, oxidizers, pH), exposure duration, and any cyclic thermal or mechanical stresses. For strongly oxidizing acids, halogens, or very high-temperature/pressure steam, more resistant alloys (e.g., 316L, duplex, Hastelloy) or additional coatings may be required. Recommend verifying compatibility with precise process parameters and consulting manufacturer or materials engineer for final approval.

Does Hexagon socket plug with GZ NPT stainless steel, 107H, meet ASME or ISO pressure-rating standards for industrial use?

Hexagon socket plug with GZ NPT stainless steel, 107H: based on the provided description alone, there is no explicit statement that it is manufactured or certified to ASME or ISO pressure-rating standards. The description (Hexagon socket plug with external NPT thread, type 107H, for threaded fittings primarily intended for the chemical, petrochemical, pharmaceutical, energy, nuclear power, and process engineering industries. Material: AISI 316 steel) indicates intended industrial application and material suitability (AISI 316 stainless steel is commonly used for corrosion resistance and strength), but ASME (e.g., B16.34, B31 series) and ISO (e.g., ISO 4126, ISO 5208) require specific design, testing, and certification informationâpressure class, design code, test pressure, traceable material certification (e.g., EN 10204 3.1/3.2), and manufacturer conformity statements. Therefore: you cannot assume compliance from the description. To confirm ASME or ISO pressure-rating compliance for Hexagon socket plug with GZ NPT stainless steel, 107H, request from the manufacturer or supplier: certified pressure rating (standard and class), applicable design standard(s), material certificates (e.g., EN 10204 3.1/3.2), hydrostatic or pneumatic test reports, inspection and certification (third-party if required), and traceable lot numbers. Only with those documents can you verify it meets specific ASME or ISO pressure-rating requirements for industrial use.

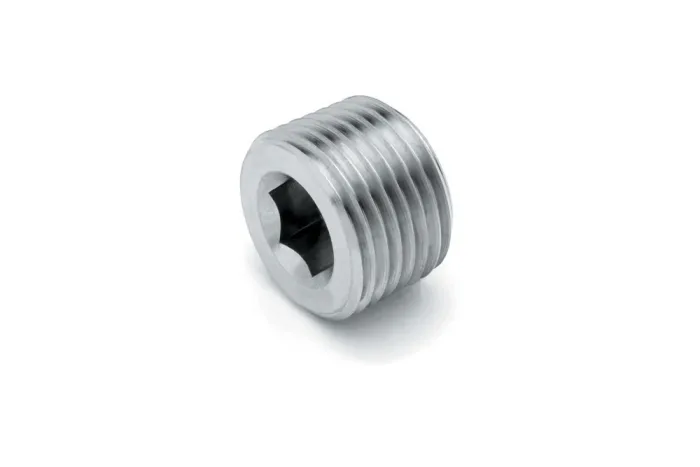

Plug with socket hexagonal with NPT male thread steel stainless, 107H

All products, Precision threaded fasteners/

Additional information

Material	SS – stainless steel
Standard length [m]	2

Plug pod wrench Allen with a thread external NPT, type 107H, for connector threaded intended mainly for industry chemical, petrochemical, pharmaceutical, power generation, nuclear power plants and process engineering. Material: steel AISI 316.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HM-P107H-02-SS	Plug 1/8" NPT male (hex socket 3/16"), SS	-	690	In stock	Enquiry
HM-P107H-04-SS	Plug 1/4" NPT male (hex socket 1/4"), SS	-	552	In stock	Enquiry
HM-P107H-06-SS	Plug 3/8" NPT male (hex socket 5/16"), SS	-	538	In stock	Enquiry
HM-P107H-08-SS	Plug 1/2" NPT male (hex socket 3/8"), SS	-	531	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Plug pod wrench Allen with a thread external NPT, type 107H, for connector threaded intended mainly for industry chemical, petrochemical, pharmaceutical, power generation, nuclear power plants and process engineering. Material: steel AISI 316.
