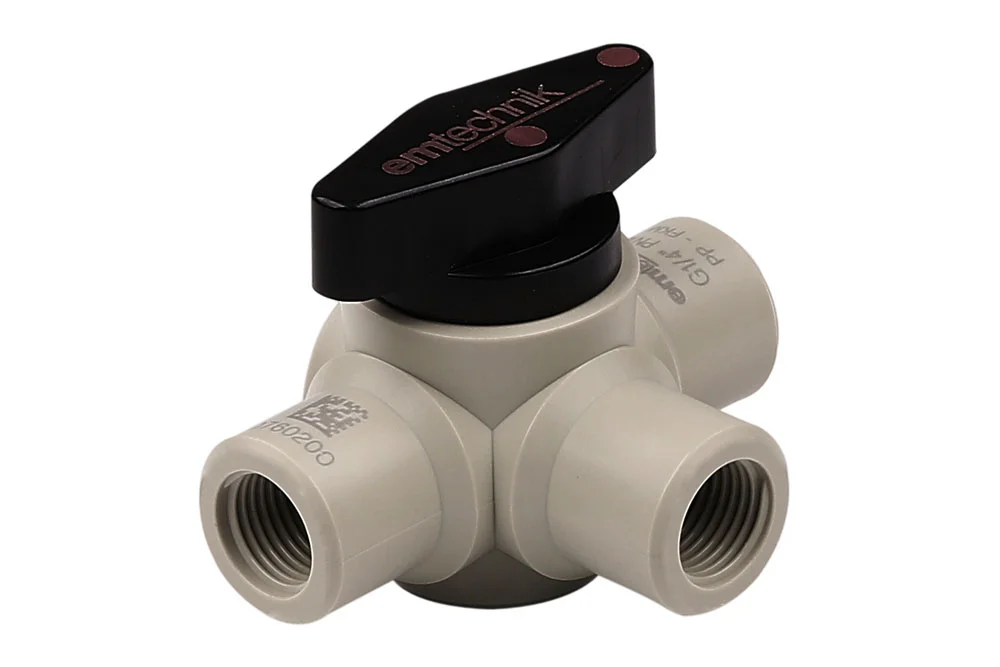

Three-way mini ball valve manually operated (available on special order with electric or pneumatic actuation), with a seamless BSP female thread, made of PP, PVDF and PFA. The PFA valve has a ball made of PTFE; the other valves have balls made of the same material as the body. Thanks to the materials used, the valve exhibits excellent chemical resistance to many substances. Widely used in laboratories and development departments, analytical technology processes, the chemical industry, etc. Material: polypropylene, polyvinylidene fluoride, perfluoroalkoxy. Sealing sleeve: PTFE. Maximum operating temperature: +90°C (PP), +140°C (PVDF), +180°C (PFA). Working pressure: 10 bar.
Three-way mini ball valve manually operated (available on special order with electric or pneumatic actuation), with a seamless BSP female thread, made of PP, PVDF and PFA. The PFA valve has a ball made of PTFE; the other valves have balls made of the same material as the body. Thanks to the materials used, the valve exhibits excellent chemical resistance to many substances. Widely used in laboratories and development departments, analytical technology processes, the chemical industry, etc. Material: polypropylene, polyvinylidene fluoride, perfluoroalkoxy. Sealing sleeve: PTFE. Maximum operating temperature: +90°C (PP), +140°C (PVDF), +180°C (PFA). Working pressure: 10 bar.
Additional information
Material
P – material (plastic)
