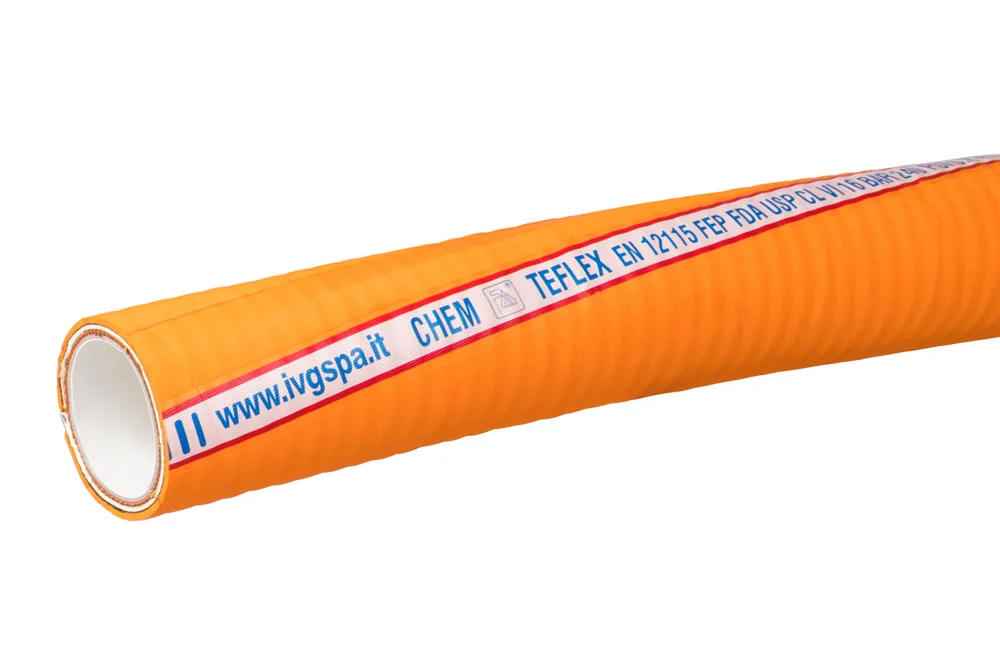

Hose for very aggressive substances chemical TEFLEX

Additional information

Material

PFA/MFA/FEP – fluoropolymer

Maximum operating temperature [°C]

150

Minimum operating temperature [°C]

-40

Vacuum resistance

yes

Standard length [m]

20/ 40, 40

Reinforcement

steel spiral, synthetic cover

The highest quality hose suction-delivery intended for conveying very wide range aggressive substances chemical. wide use hose, primarily in industry chemical, conditioned is excellent resistance polymer fluorine FEP na aggressive solvents and concentrated lyes and acids such jak: acid hydrochloric, sulfuric, phosphoric, nitric and lye sodium and potassium. hose can be used also in industry food and pharmaceutical. readily used is in zones pure. Layer inner with white copolymer tetrafluoroethylene / fluoropropylene FEP (thermoplastic polymer fluorine o properties close for PTFE), mirror smooth (prevents deposition medium na walls and is easy in maintaining cleanliness), free of smell and taste, meeting high requirements hygienic (FDA, USP Class VI). layer intermediate with white rubber synthetic, contain Reinforcement with cord synthetic, spiral with wire steel and two copper cable for discharge charges electrostatic. outer Layer with orange rubber EPDM, resistant na abrasion, ozone and conditions atmospheric. hose is characterized excellent resistance chemical and cleanliness FEP and exceptional resistance na temperature. specially designed for cleaning method Cleaning-in-Place (CIP), in this for sterilization steam 150ºC. standards and requirements: hoses chemical: EN 12115:2011(type M). industry food, contact with food (Layer inner): USP Class VI, FDA 21 CFR 177.1550. Confirmation of resistance and application conditions requires contact with Tubes International. Inner layer: white, smooth FEP. Reinforcement: synthetic cord, steel spiral. Outer layer: orange smooth rubber EPDM. pressure working: 16 bar. Vacuum: 0.9 bar. temperature use: from -40°C to +150°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
IV-TEFLEX-19Hose TEFLEX EN 12115 19x31.5 mm2016In stock0 zł
Enquiry
IV-TEFLEX-25Hose TEFLEX EN 12115 25x37.5 mm2516In stock0 zł
Enquiry
IV-TEFLEX-32Hose TEFLEX EN 12115 32x45 mm3216In stock0 zł
Enquiry
IV-TEFLEX-38Hose TEFLEX EN 12115 38x51.5 mm3816In stock0 zł
Enquiry
IV-TEFLEX-51Hose TEFLEX EN 12115 51x65.5 mm5016In stock0 zł
Enquiry
IV-TEFLEX-76Hose TEFLEX EN 12115 76x91 mm7516In stock0 zł
Enquiry

Do you need a larger quantity of products or a bespoke quote?

The highest quality hose suction-delivery intended for conveying very wide range aggressive substances chemical. wide use hose, primarily in industry chemical, conditioned is excellent resistance polymer fluorine FEP na aggressive solvents and concentrated lyes and acids such jak: acid hydrochloric, sulfuric, phosphoric, nitric and lye sodium and potassium. hose can be used also in industry food and pharmaceutical. readily used is in zones pure. Layer inner with white copolymer tetrafluoroethylene / fluoropropylene FEP (thermoplastic polymer fluorine o properties close for PTFE), mirror smooth (prevents deposition medium na walls and is easy in maintaining cleanliness), free of smell and taste, meeting high requirements hygienic (FDA, USP Class VI). layer intermediate with white rubber synthetic, contain Reinforcement with cord synthetic, spiral with wire steel and two copper cable for discharge charges electrostatic. outer Layer with orange rubber EPDM, resistant na abrasion, ozone and conditions atmospheric. hose is characterized excellent resistance chemical and cleanliness FEP and exceptional resistance na temperature. specially designed for cleaning method Cleaning-in-Place (CIP), in this for sterilization steam 150ºC. standards and requirements: hoses chemical: EN 12115:2011(type M). industry food, contact with food (Layer inner): USP Class VI, FDA 21 CFR 177.1550. Confirmation of resistance and application conditions requires contact with Tubes International. Inner layer: white, smooth FEP. Reinforcement: synthetic cord, steel spiral. Outer layer: orange smooth rubber EPDM. pressure working: 16 bar. Vacuum: 0.9 bar. temperature use: from -40°C to +150°C.

Additional information

Material

PFA/MFA/FEP – fluoropolymer

Maximum operating temperature [°C]

150

Minimum operating temperature [°C]

-40

Vacuum resistance

yes

Standard length [m]

20/ 40, 40

Reinforcement

steel spiral, synthetic cover

Do you need a larger quantity of products or a bespoke quote?
