Is HYDRAFIX FR211 coolant hose suitable for use with oil-based coolants and grease-contaminated environments at temperatures up to +80Â°C?

Yes. HYDRAFIX FR211 coolant hose is specifically described as oil, grease, and hot chip resistant and designed for low-pressure delivery of liquid or gaseous coolant during metal processing, so it is suitable for environments contaminated with oil and grease. Its material is black PVC with steel guiding reinforcement (and an extra nickel-plated steel spiral cover for DN 10), a working pressure of 4 bar, and an operating temperature rating up to +80Â°C, which matches your temperature requirement. Provided it is used within the stated working pressure (â¤4 bar) and maximum operating temperature (+80Â°C), HYDRAFIX FR211 is appropriate for oil-based coolants and grease-contaminated conditions.

Can HYDRAFIX FR211 coolant hose be used for low-pressure delivery of gaseous coolants in metal processing at 4 bar?

Yes. HYDRAFIX FR211 coolant hose is specified for low-pressure delivery of liquid or gaseous coolants during metal processing and lists a working pressure of 4 bar, so it can be used at that pressure. Its black PVC construction, steel guiding cover (and additional spiral cover on DN10) provides reinforcement suited to that application, and the shape-memory feature allows precise coolant direction. Ensure your operating temperature does not exceed +80Â°C and that connections (BSP/metric threads) and gas compatibility with PVC are acceptable for your specific gaseous coolant and safety requirements.

Does HYDRAFIX FR211 coolant hose maintain its shape memory for precise coolant direction under continuous use?

Yes. HYDRAFIX FR211 coolant hose is designed to maintain its shape memory and keep coolant direction precise under continuous use, within its specified limits. The black PVC material combined with the steel guiding cover (and an extra nickel-plated spiral on DN 10) provides structural reinforcement that preserves the hoseâs preformed shape while resisting deformation from flow and handling. Its operating temperature rating (up to +80Â°C) and working pressure (4 bar) define the normal conditions in which the shape-memory performance is reliable. Caveats: Extended exposure above +80Â°C, pressures above 4 bar, or prolonged mechanical abuse (excessive bending, crushing, or impact) can degrade the PVC and reinforcement over time and diminish shape retention. For best long-term precision, use within the specified temperature and pressure ranges and avoid harsh mechanical stresses.

HYDRAFIX FR211 coolant hose

Air and water hoses, All products/

Additional information

Material	CS – steel (cast iron)
Vacuum resistance	check
Standard length [m]	2

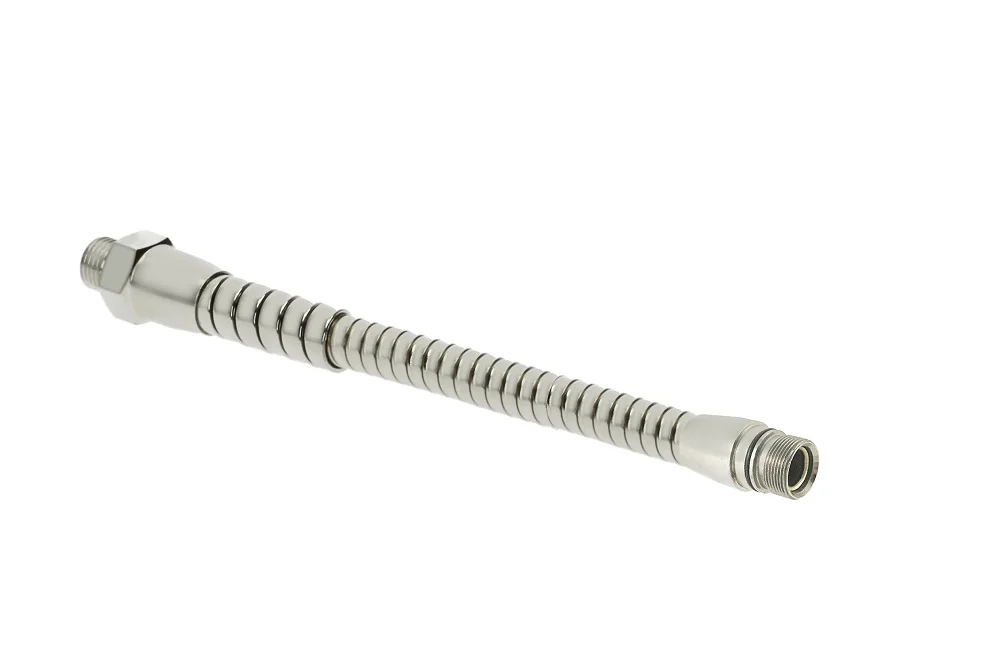

Oil, grease, and hot chip resistant hose designed for low-pressure delivery of liquid or gaseous coolant during metal processing. It features a so-called shape memory, allowing for precise direction of the coolant flow. Supplied as ready-made hoses with an external BSP threaded connection ending with a metric external thread. Material: black PVC. Reinforcement: steel guiding cover, diameter DN 10 has an additional spiral cover made of nickel-plated steel sheet. Working pressure: 4 bar. Operating temperature: up to +80°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
WM-FR211-10-500	HYDRAFIX FR 211 hose DN 10, L= 500 mm (1/2" BSP / M18x1)	10	4	In stock	0 zł		Enquiry
WM-FR211-16-630	HYDRAFIX FR 211 hose DN 16, L= 630 mm (3/4" BSP / M26x1.5)	16	4	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Oil, grease, and hot chip resistant hose designed for low-pressure delivery of liquid or gaseous coolant during metal processing. It features a so-called shape memory, allowing for precise direction of the coolant flow. Supplied as ready-made hoses with an external BSP threaded connection ending with a metric external thread. Material: black PVC. Reinforcement: steel guiding cover, diameter DN 10 has an additional spiral cover made of nickel-plated steel sheet. Working pressure: 4 bar. Operating temperature: up to +80°C.
