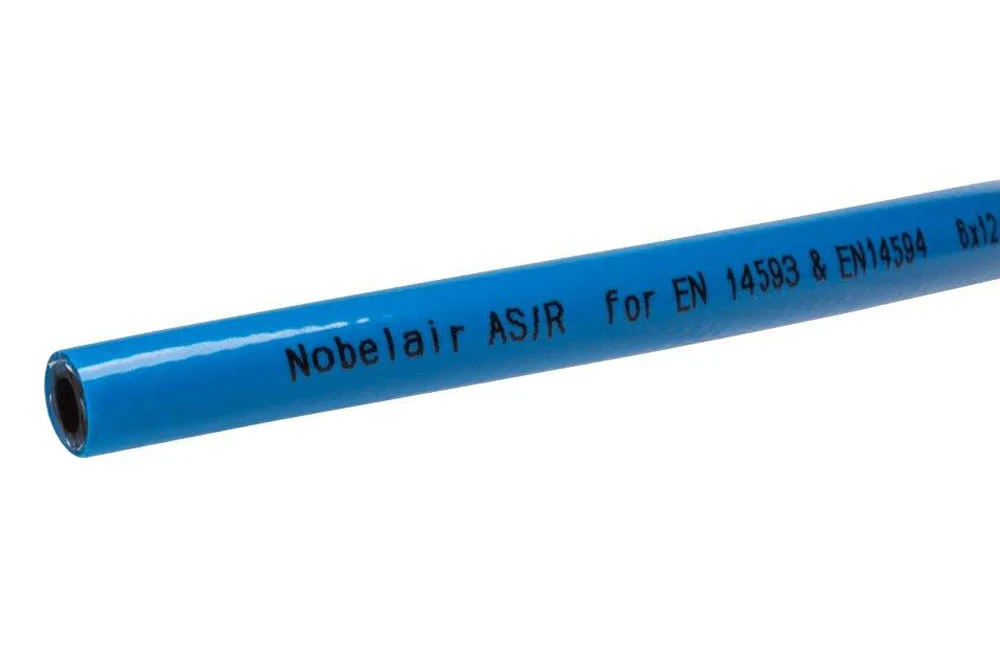

Hose for oxygen medical NOBELAIR AS/R
Flexible five-layer hose for compressed air. light, very pliable even in low temperatures, resistant to elongation. antistatic (R 6 Ω/m, EN ISO 8031), resistant to elevated temperature ambient, adapted for disinfection. specially designed for apparatus breathing in accordance with the standard EN 14593 and EN 14594. used in industry paint, petrochemical, construction and power nuclear. On special order DN6 and DN10 in color green. Inner layer: black, antistatic PVC. Reinforcement: a polyester braid. Outer layer: blue PVC. Working pressure: 15 bar (6 bar for temperatures 70°C). Operating temperature: od -20°C up to +70°C (momentarily up to +80°C), working pressure depends on temperature.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
Flexible five-layer hose for compressed air. light, very pliable even in low temperatures, resistant to elongation. antistatic (R 6 Ω/m, EN ISO 8031), resistant to elevated temperature ambient, adapted for disinfection. specially designed for apparatus breathing in accordance with the standard EN 14593 and EN 14594. used in industry paint, petrochemical, construction and power nuclear. On special order DN6 and DN10 in color green. Inner layer: black, antistatic PVC. Reinforcement: a polyester braid. Outer layer: blue PVC. Working pressure: 15 bar (6 bar for temperatures 70°C). Operating temperature: od -20°C up to +70°C (momentarily up to +80°C), working pressure depends on temperature.
Additional information
| Material | PVC – polyvinyl chloride |
|---|---|
| Maximum operating temperature [°C] | 70 |
| Minimum operating temperature [°C] | -20 |
| Vacuum resistance | no |
| Standard length [m] | 30.5, 40, 50 |
| Reinforcement | polyester braid |
