Does the AGN hydraulic end, type ZNZ110, carbon steel, Y require a specific crimping sleeve size for proper hose installation?

Yes . the AGN hydraulic end, type ZNZ110, carbon steel, Y requires a crimping sleeve sized to match the hose type. The product description specifies it is designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type, so you must use the sleeve dimension and profile recommended by the hose manufacturer (inner diameter, wall thickness and compatible sleeve contour) to ensure proper crimp retention and sealing. Also confirm the sleeve material and crimping specifications (press force, die set) are appropriate for carbon steel fittings and the specific hose construction.

Is a specific crimping die profile required for AGN hydraulic end, type ZNZ110, carbon steel, Y to ensure reliable hose retention?

Yes. For AGN hydraulic end, type ZNZ110, carbon steel, Y a specific crimping die/profile matching the hose and crimping sleeve is required to ensure reliable hose retention. The part is designed for crimping with a sleeve suitable for the hose type; using the correct die profile (compatible with the sleeve cross-section, material and hose diameter) ensures uniform compression, prevents damage to the hose or fitting, and achieves the specified crimp dimensions and retention strength. Also follow manufacturer crimp specifications (die model, crimp diameter, and crimp force) and inspect crimps for proper form and leak-free sealing (thread and optional 60Â° cone).

Can AGN hydraulic end, type ZNZ110, carbon steel, Y be crimped using generic sleeves or need hose-specific sleeve dimensions?

AGN hydraulic end, type ZNZ110, carbon steel, Y Format must be crimped using a sleeve that matches the specific hose type and dimensions. not a generic one-size-fits-all sleeve. The product description explicitly states it is "designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type." Correct crimping requires matching sleeve inner diameter, length, profile and crimping force to the hose construction (e.g., single-wire, textile, multi-wire) and nominal hose size to ensure seal integrity and mechanical strength. Using a generic sleeve risks improper compression, leaks, hose blow-off or premature failure. Always refer to the hose manufacturerâs recommended sleeve dimensions and crimping parameters or use a sleeve and die set specified for the ZNZ110 end and the exact hose model. If in doubt, consult the hose or fitting supplier for certified crimp specifications.

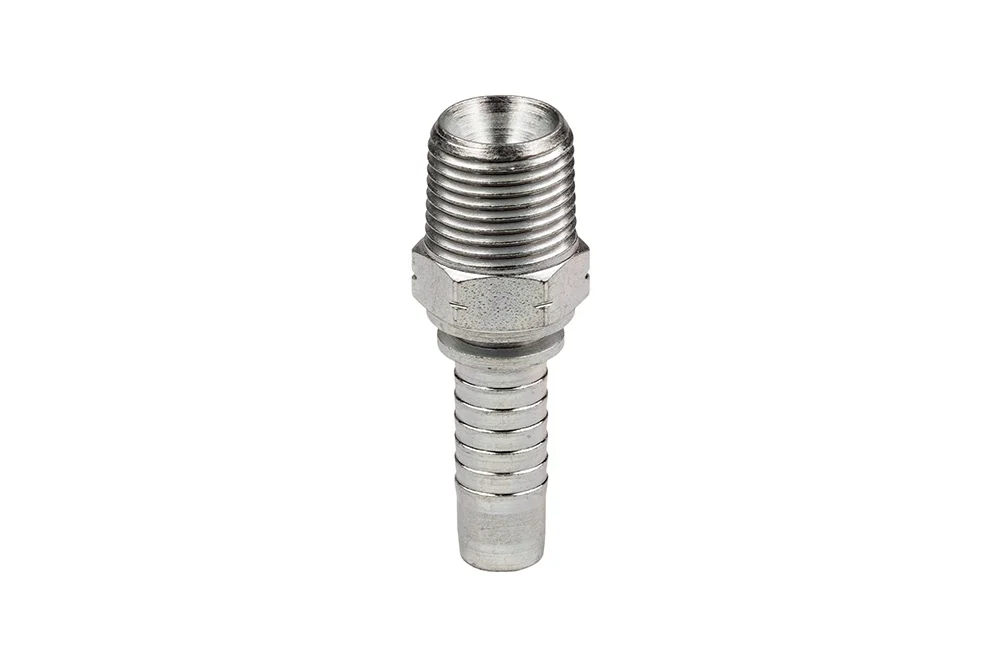

AGN hydraulic end, type ZNZ110, carbon steel, Y

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

Standard hydraulic end (type Z – with a regular hydraulic “tail” for hose), with external tapered NPT thread, sealing on the thread (AGN), possible sealing on a 60° cone. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZNZ110-02-03-Y	End. GZ 1/8" NPT for 3/16" hose	5	-	In stock	Enquiry
TI-ZNZ110-04-04-Y	End. GZ 1/4" NPT for 1/4" hose	6	-	In stock	Enquiry
TI-ZNZ110-04-05-Y	End. GZ 1/4" NPT for 5/16" hose	8	-	In stock	Enquiry
TI-ZNZ110-06-05-Y	End. GZ 3/8" NPT for 5/16" hose	8	-	In stock	Enquiry
TI-ZNZ110-06-06-Y	End. GZ 3/8" NPT for 3/8" hose	10	-	In stock	Enquiry
TI-ZNZ110-08-06-Y	End. GZ 1/2" NPT for 3/8" hose	10	-	In stock	Enquiry
TI-ZNZ110-08-08-Y	End. GZ 1/2" NPT for 1/2" hose	12	-	In stock	Enquiry
TI-ZNZ110-12-08-Y	End. GZ 3/4" NPT for 1/2" hose	12	-	In stock	Enquiry
TI-ZNZ110-12-12-Y	End. GZ 3/4" NPT for 3/4" hose	20	-	In stock	Enquiry
TI-ZNZ110-16-16-Y	End. GZ 1" NPT to hose 1"	25	-	In stock	Enquiry
TI-ZNZ110-20-20-Y	End. GZ 1.1/4" NPT for hose 1.1/4"	32	-	In stock	Enquiry
TI-ZNZ110-24-24-Y	End. GZ 1.1/2" NPT for hose 1.1/2"	38	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Standard hydraulic end (type Z – with a regular hydraulic “tail” for hose), with external tapered NPT thread, sealing on the thread (AGN), possible sealing on a 60° cone. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Material: carbon steel, galvanized.
