Does the AGN hydraulic end, type ZNZ110, carbon steel, require a specific crimping sleeve size for safe installation on hydraulic and industrial hoses?

Yes. The AGN hydraulic end, type ZNZ110, carbon steel requires a crimping sleeve sized appropriately for the hose type being used. The fitting is designed for crimping into hydraulic and industrial hoses, so safe installation depends on using a crimp sleeve matched to the hoseâs inner diameter, reinforcement construction, and manufacturer specifications. Use a sleeve material and profile compatible with carbon steel fittings and follow the hose and crimper manufacturerâs recommended sleeve dimensions, crimping pattern, and crimping force to ensure a secure, leak-free assembly. If the hose or application has special requirements (pressure, temperature, or sealing on a 60Â° cone), confirm sleeve compatibility with those conditions before crimping.

Can AGN hydraulic end, type ZNZ110, carbon steel, be used with hoses requiring sealing on a 60Â° cone instead of thread sealing?

Yes. AGN hydraulic end, type ZNZ110, carbon steel can be used with hoses that require sealing on a 60Â° cone, provided the mating hose fitting and crimping sleeve are compatible. Although the standard design features external tapered NPT thread with thread sealing, the description specifies possible sealing on a 60Â° cone. Ensure the hose assembly uses the correct crimping sleeve for that hose type, the cone dimensions match the hose/ferrule, and crimping is performed to recommended specifications. Also confirm material and galvanization meet application requirements (pressure, fluid, environment).

Is a specific torque spec required when crimping AGN hydraulic end, type ZNZ110, carbon steel, onto hoses?

Yes. a specific crimp dimension (crimp diameter or crimping instruction) appropriate for the hose and crimp sleeve is required; the AGN hydraulic end, type ZNZ110, carbon steel must be crimped using the correct crimping sleeve and machine settings recommended for the hose assembly, not an arbitrary torque value. Explanation: The AGN hydraulic end, type ZNZ110, carbon steel is a crimped fitting designed to be installed with a crimping sleeve sized to the hose type. Crimping is a coldâforming process that compresses the sleeve onto the hose ferrule and fitting; the critical parameters are crimp diameter/profile and uniform radial compression, not a thread torque. Manufacturers and hose suppliers publish crimp specifications (target crimp diameter, mandrel/tooling size, and crimping force/profile) for each hose+fitting combination. Using the correct crimp sleeve, die set and calibrated crimping machine ensures a reliable seal and mechanical retention. If the assembly uses a 60Â° cone or NPT thread for sealing, those features relate to fluid sealing and thread engagement, not the crimp torque. Recommended action: Consult the hose manufacturerâs and the crimp sleeve/fitting supplierâs assembly instructions for the exact crimp dimension and tooling for the hose model you are using with AGN hydraulic end, type ZNZ110, carbon steel. If documentation is not available, contact the supplier or use a certified hydraulic hose crimper and refer to standards (e.g., SAE J517 / EN 853/EN 857 guidance) and OEM recommendations. Do not rely on a torque spec for crimping; use the specified crimp dimensions and calibrated equipment.

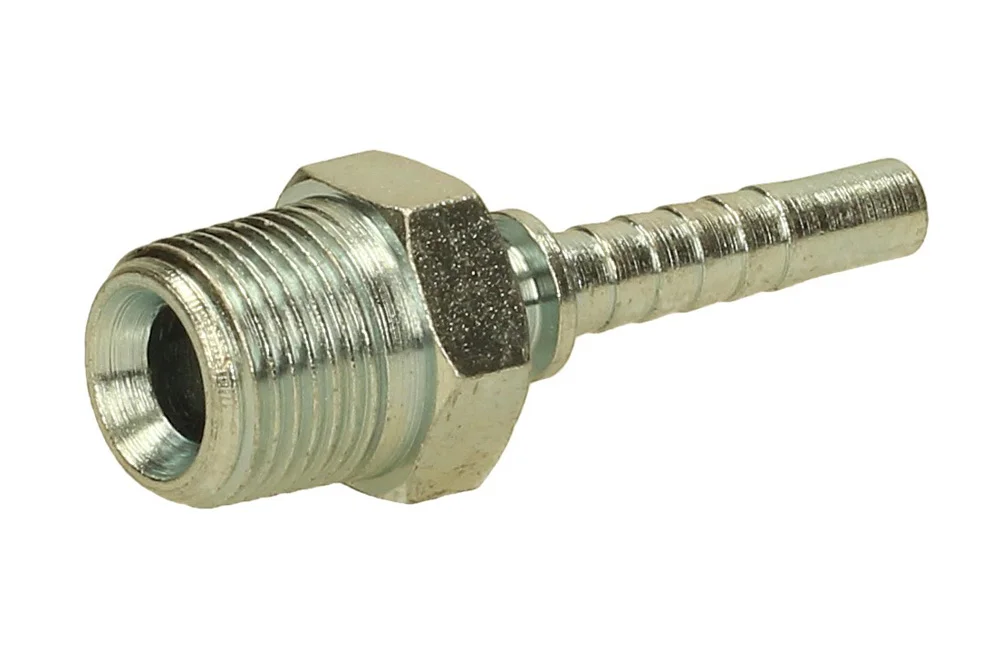

Fitting hydraulic AGN, type ZNZ110, carbon steel

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

Standard hydraulic fitting (type Z – with an ordinary hydraulic “tail” for the hose), with male thread tapered NPT, sealing na gwincie (AGN), possible 60° cone sealing. Intended for crimping onto hydraulic and industrial hoses using a ferrule suitable for the hose type. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZNZ110-02-03	Fitting 1/8" NPT male for hose 3/16"	5	-	In stock	Enquiry
TI-ZNZ110-02-04	Fitting 1/8" NPT male for hose 1/4"	6	-	In stock	Enquiry
TI-ZNZ110-04-03	Fitting 1/4" NPT male for hose 3/16"	5	-	In stock	Enquiry
TI-ZNZ110-04-04	Fitting 1/4" NPT male for hose 1/4"	6	-	In stock	Enquiry
TI-ZNZ110-04-05	Fitting 1/4" NPT male for hose 5/16"	8	-	In stock	Enquiry
TI-ZNZ110-04-06	Fitting 1/4" NPT male for hose 3/8"	10	-	In stock	Enquiry
TI-ZNZ110-06-04	Fitting 3/8" NPT male for hose 1/4"	6	-	In stock	Enquiry
TI-ZNZ110-06-05	Fitting 3/8" NPT male for hose 5/16"	8	-	In stock	Enquiry
TI-ZNZ110-06-06	Fitting 3/8" NPT male for hose 3/8"	10	-	In stock	Enquiry
TI-ZNZ110-06-08	Fitting 3/8" NPT male for hose 1/2"	12	-	In stock	Enquiry
TI-ZNZ110-08-06	Fitting 1/2" NPT male for hose 3/8"	10	-	In stock	Enquiry
TI-ZNZ110-08-08	Fitting 1/2" NPT male for hose 1/2"	12	-	In stock	Enquiry
TI-ZNZ110-08-10	Fitting 1/2" NPT male for hose 5/8"	16	-	In stock	Enquiry
TI-ZNZ110-12-08	Fitting 3/4" NPT male for hose 1/2"	12	-	In stock	Enquiry
TI-ZNZ110-12-10	Fitting 3/4" NPT male for hose 5/8"	16	-	In stock	Enquiry
TI-ZNZ110-12-12	Fitting 3/4" NPT male for hose 3/4"	20	-	In stock	Enquiry
TI-ZNZ110-16-12	Fitting 1" NPT male for hose 3/4"	20	-	In stock	Enquiry
TI-ZNZ110-16-16	Fitting 1" NPT male for hose 1"	25	-	In stock	Enquiry
TI-ZNZ110-20-16	Fitting 1.1/4" NPT male for hose 1"	25	-	In stock	Enquiry
TI-ZNZ110-20-20	Fitting 1.1/4" NPT male for hose 1.1/4"	32	-	In stock	Enquiry
TI-ZNZ110-24-20	Fitting 1.1/2" NPT male for hose 1.1/4"	32	-	In stock	Enquiry
TI-ZNZ110-24-24	Fitting 1.1/2" NPT male for hose 1.1/2"	38	-	In stock	Enquiry
TI-ZNZ110-32-32	Fitting 2" NPT male for hose 2"	50	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Standard hydraulic fitting (type Z – with an ordinary hydraulic “tail” for the hose), with male thread tapered NPT, sealing na gwincie (AGN), possible 60° cone sealing. Intended for crimping onto hydraulic and industrial hoses using a ferrule suitable for the hose type. Material: carbon steel, galvanized.
