Can DKJ hydraulic end for UHP hose carbon steel, type PJW110 be used with all crimping sleeves specified for thermoplastic UHP hoses and which sleeve profile is required?

DKJ hydraulic end for UHP hose carbon steel, type PJW110 is designed specifically for crimping into UHP thermoplastic hoses and must be used with a crimping sleeve that matches the hose construction and dimensions. It cannot be assumed compatible with all crimping sleeves . only sleeves specified for the particular UHP thermoplastic hose type and correct internal/external diameters should be used. Required sleeve profile: a crimping sleeve intended for thermoplastic UHP hoses with a profile that accommodates the special âtailâ of the P-type fitting and secures the hose cover and reinforcement; typically a straight (cylindrical) or slightly tapered sleeve specified by the hose manufacturer for PJW110-compatible fittings. Use the sleeve profile and size recommended by the hose maker for the specific hose model and nominal diameter to ensure correct crimp geometry, sealing on the 74Â° cone and safe working pressures.

Is DKJ hydraulic end for UHP hose carbon steel, type PJW110 compatible with hoses of different thermoplastic compositions and pressure ratings?

DKJ hydraulic end for UHP hose carbon steel, type PJW110 is specifically designed for crimping onto UHP thermoplastic hoses using a crimping sleeve matched to that hose type. Compatibility with hoses of different thermoplastic compositions and pressure ratings depends on using the correct sleeve and crimping parameters for each hose construction. Material and sealing (internal UNF thread, 74Â° cone) are suitable for thermoplastic UHP applications, but you must confirm hose inner/outer diameters, reinforcement type, and maximum working pressure with the hose manufacturer and use the sleeve specified for that hose. Do not mix fittings, sleeves or crimping settings across hoses with different constructions or ratings without manufacturer approval.

How should DKJ hydraulic end for UHP hose carbon steel, type PJW110 be stored prior to crimping to prevent corrosion or contamination?

Store DKJ hydraulic end for UHP hose carbon steel, type PJW110 in a way that prevents corrosion and contamination prior to crimping: - Keep parts dry and temperatureâstable: store indoors in a clean, dry area with low humidity and stable temperature to avoid condensation and corrosion on the galvanized carbon steel. - Protect the sealing and thread surfaces: cover the 74Â° cone sealing face and internal UNF thread with protective caps, plastic plugs, or masking to prevent dents, nicks, dirt and metal particles. - Use corrosion inhibitors and packaging: wrap each fitting in corrosionâinhibiting paper or VCI (volatile corrosion inhibitor) film, or place in sealed plastic bags with desiccant packs. For bulk storage, use sealed containers or labeled bins with desiccants. - Prevent mechanical damage: keep fittings in padded compartments or on shelves where they wonât rub against other metal parts. Avoid stacking heavy loads on top. - Control cleanliness: handle with clean gloves or tools to avoid oils, grease or hand contaminants. Keep the storage area free of dust, welding slag, and other contaminant sources. - Segregate by type and readiness: store PJW110 fittings separately from other materials and clearly mark those ready for immediate crimping versus those requiring inspection or cleaning. - Inspect before crimping: immediately prior to crimping, visually inspect the 74Â° cone and UNF thread for corrosion, dirt, or damage; clean with appropriate solvent and a lintâfree cloth if needed, and remove protective plugs. Following these steps will minimize corrosion and contamination risk for DKJ hydraulic end for UHP hose carbon steel, type PJW110 and ensure reliable sealing and crimping performance.

A fitting hydraulic DKJ for hose UHP steel carbon, type PJW110

Additional information

Material	CS – steel (cast iron)

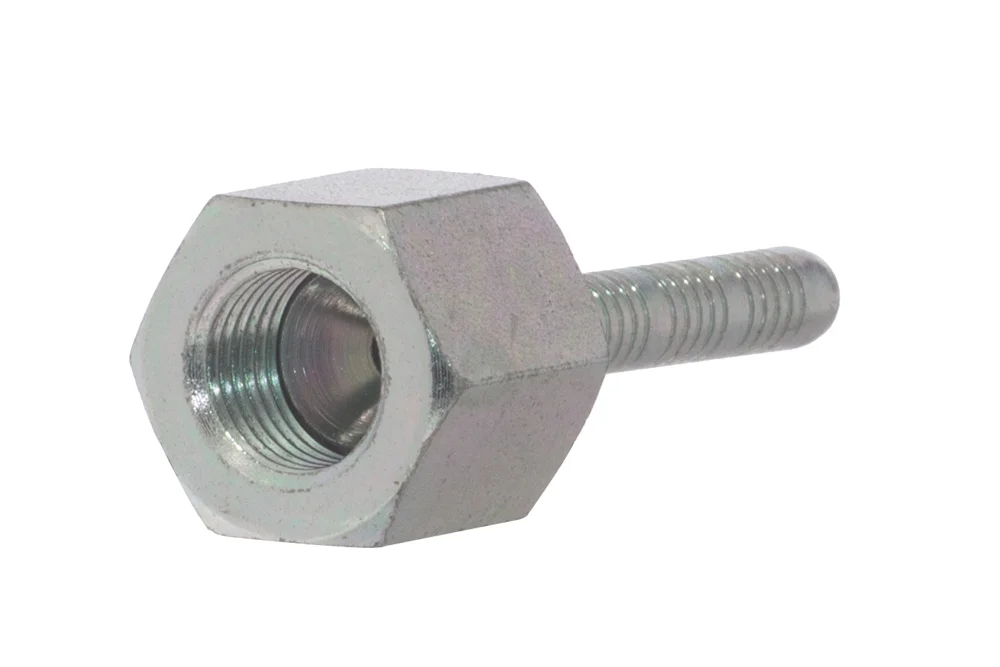

A hydraulic fitting (type P – with a special “tail” for a thermoplastic hose) with a thread internal UNF, sealing on a 74° cone (DKJ). Intended for crimping in UHP thermoplastic hoses by means of a clamping ferrule appropriate for the hose type. Material: steel carbon, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-PJW110-07-04-TO	Fitting JIC 7/16" female, hose thermoplastic 1/4", 74° DKJ	6	800	In stock	Enquiry
TI-PJW110-08-04-TO	Fitting JIC 1/2" female, hose thermoplastic 1/4", 74° DKJ	6	800	In stock	Enquiry
TI-PJW110-09-04-TO	Fitting JIC 9/16" female, hose thermoplastic 1/4", 74° DKJ	6	800	In stock	Enquiry
TI-PJW110-09-06-TO	Fitting JIC 9/16" female, hose thermoplastic 3/8", 74° DKJ	10	800	In stock	Enquiry
TI-PJW110-12-06-TO	Fitting JIC 3/4" female, hose thermoplastic 3/8", 74° DKJ	10	800	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

A hydraulic fitting (type P – with a special “tail” for a thermoplastic hose) with a thread internal UNF, sealing on a 74° cone (DKJ). Intended for crimping in UHP thermoplastic hoses by means of a clamping ferrule appropriate for the hose type. Material: steel carbon, galvanized.
