Is DKJ hydraulic end, type ZJW110, carbon steel, Y compatible with standard UNF-threaded hoses and crimping sleeves for 74Â° cone sealing?

Yes. DKJ hydraulic end, type ZJW110, carbon steel, Y Format is compatible with standard UNF-threaded hoses and crimping sleeves for 74Â° cone sealing. The product description specifies an internal UNF thread and nut and a 74Â° cone (DKJ) sealing surface, and it is explicitly designed for crimping in hydraulic and industrial hoses using a crimping sleeve appropriate for the hose type. Material (carbon steel, galvanized) and the Z-type âtailâ construction are standard for such assemblies. Ensure you match the exact UNF thread size, hose inner diameter, and the manufacturer-recommended crimp sleeve profile and dimensions for a secure, leak-free crimp.

Is DKJ hydraulic end, type ZJW110, carbon steel, Y compatible with standard crimping sleeves and UNF-threaded hose assemblies?

Yes. DKJ hydraulic end, type ZJW110, carbon steel, Y is compatible with standard crimping sleeves and UNFâthreaded hose assemblies. It has an internal UNF thread and nut, seals on a 74Â° cone (DKJ), and is specifically designed for crimping into hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Material: carbon steel, galvanized.

Can DKJ hydraulic end, type ZJW110, carbon steel, Y be used with metric-threaded hose fittings and crimping sleeves?

Yes. DKJ hydraulic end, type ZJW110, carbon steel, Y Format can be used with metric-threaded hose fittings and crimping sleeves only with conditions: - The part is described as a Standard hydraulic end (type Z) with internal UNF thread and nut, sealing on a 74Â° cone (DKJ). Its design assumes an internal UNF thread for connection to a mating fitting. That means it is not directly compatible with metric male threads without an adapter or using a metric-to-UNF mating component. - It is specifically designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose. So crimping sleeves must match the hose type and the ZJW110 endâs outer geometry (sleeve length/diameter). If you use a metric-threaded hose fitting that fits the hose end geometry and a compatible crimping sleeve, the crimping process is acceptable. Practical guidance: - To use metric-threaded fittings, fit a compatible adapter or choose a metric-to-UNF mating nut/fitting that seals on the 74Â° cone. Ensure thread compatibility and proper sealing cone seating. - Use crimping sleeves specified for the hose construction and checked against the ZJW110 dimensions. - Verify material (carbon steel, galvanized) and pressure ratings, and follow manufacturer crimping specs and hose assembly procedures. In summary: mechanically usable with metric-threaded fittings only via appropriate adapters or mating components that ensure UNF/cone sealing compatibility; crimping sleeves are acceptable if they match the hose and the ZJW110 end dimensions.

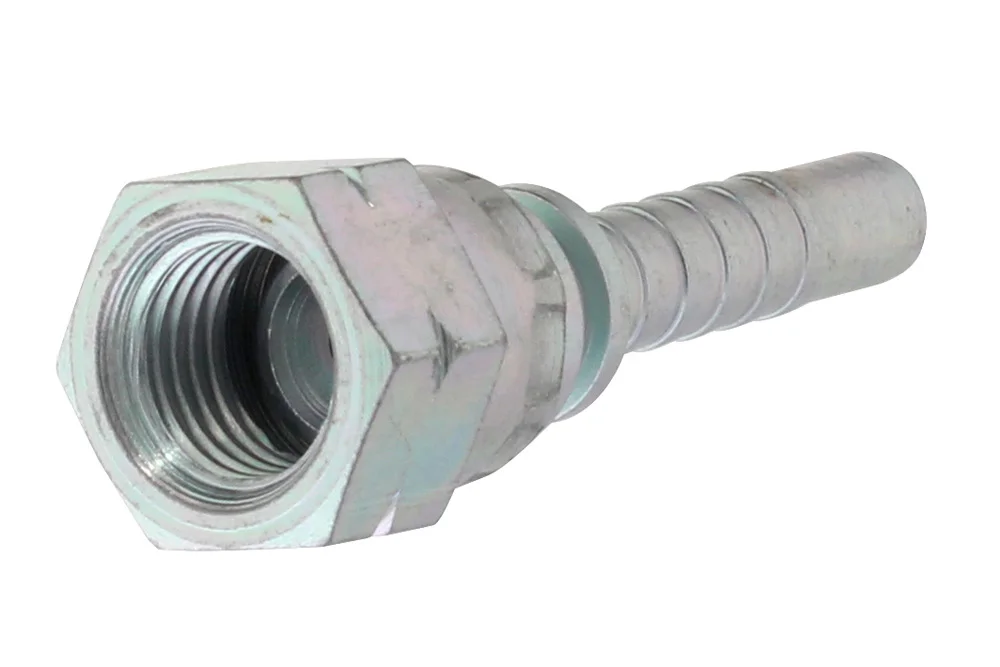

Fitting hydraulic DKJ, type ZJW110, carbon steel, Y

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	100

Standard hydraulic fitting (type Z – with an ordinary hydraulic “tail” for the hose), with UNF female thread with a nut, 74° cone sealing (DKJ). Intended for crimping onto hydraulic and industrial hoses using a ferrule suitable for the hose type. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZJW110-07-04-Y	Fitting JIC 7/16" female, hose 1/4", 74° cone	6	-	In stock	Enquiry
TI-ZJW110-08-04-Y	Fitting JIC 1/2" female, hose 1/4", 74° cone	6	-	In stock	Enquiry
TI-ZJW110-09-04-Y	Fitting JIC 9/16" female, hose 1/4", 74° cone	6	-	In stock	Enquiry
TI-ZJW110-09-05-Y	Fitting JIC 9/16" female, hose 5/16", 74° cone	8	-	In stock	Enquiry
TI-ZJW110-09-06-Y	Fitting JIC 9/16" female, hose 3/8", 74° cone	10	-	In stock	Enquiry
TI-ZJW110-12-05-Y	Fitting JIC 3/4" female, hose 5/16", 74° cone	8	-	In stock	Enquiry
TI-ZJW110-12-06-Y	Fitting JIC 3/4" female, hose 3/8", 74° cone	10	-	In stock	Enquiry
TI-ZJW110-12-08-Y	Fitting JIC 3/4" female, hose 1/2", 74° cone	12	-	In stock	Enquiry
TI-ZJW110-14-06-Y	Fitting JIC 7/8" female, hose 3/8", 74° cone	10	-	In stock	Enquiry
TI-ZJW110-14-08-Y	Fitting JIC 7/8" female, hose 1/2", 74° cone	12	-	In stock	Enquiry
TI-ZJW110-14-10-Y	Fitting JIC 7/8" female, hose 5/8", 74° cone	16	-	In stock	Enquiry
TI-ZJW110-17-12-Y	Fitting JIC 1.1/16" female, hose 3/4", 74° cone	20	-	In stock	Enquiry
TI-ZJW110-21-16-Y	Fitting JIC 1.5/16" female, hose 1", 74° cone	25	-	In stock	Enquiry
TI-ZJW110-30-20-Y	Fitting JIC 1.7/8" female, hose 1.1/4", 74° cone	32	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Standard hydraulic fitting (type Z – with an ordinary hydraulic “tail” for the hose), with UNF female thread with a nut, 74° cone sealing (DKJ). Intended for crimping onto hydraulic and industrial hoses using a ferrule suitable for the hose type. Material: carbon steel, galvanized.
