Is the DKOS 45Â° hydraulic end, type ZMW322, heavy series, carbon steel compatible with standard crimping sleeves for hose assembly?

Yes. The DKOS 45Â° hydraulic end, type ZMW322, heavy series, carbon steel is designed for crimping and is compatible with standard crimping sleeves that match the hose type. It features a regular hydraulic tail (type Z) for hose insertion, an internal metric thread with nut, and seals with an Oâring on a 24Â° cone (DKOS). Being specified as âdesigned for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose typeâ means you must use a crimping sleeve sized and specified for the hose construction and diameter; when the sleeve matches the hose and you follow the manufacturerâs crimping dimensions and process, this fitting is appropriate for standard crimped assemblies. Ensure sleeve material and profile are compatible with the hose and follow recommended crimp specifications to guarantee proper seal and mechanical integrity.

Can DKOS 45Â° hydraulic end, type ZMW322, heavy series, carbon steel be used with hoses requiring O-ring sealing on a 24Â° cone?

Yes. DKOS 45Â° hydraulic end, type ZMW322, heavy series, carbon steel is designed for hoses requiring O-ring sealing on a 24Â° cone. It features an internal metric thread and nut and seals with an O-ring on the 24Â° cone (DKOS), and is intended for crimping with a suitable sleeve for the hose type. Ensure the hose, O-ring size and crimp sleeve match the ZMW322 dimensions and pressure ratings before assembly.

Can DKOS 45Â° hydraulic end, type ZMW322, heavy series, carbon steel withstand high-pressure cycling in mobile hydraulic systems?

DKOS 45Â° hydraulic end, type ZMW322, heavy series, carbon steel, is designed as a robust crimp-type fitting for hydraulic and industrial hoses: 45Â° angled, internal metric thread with nut, 24Â° cone sealing (Oâring), heavy series construction, galvanized carbon steel. To assess suitability for highâpressure cycling in mobile hydraulic systems consider: - Design intent: heavy series and 24Â° cone with Oâring indicate good static and dynamic sealing capability suited for highâpressure hydraulic applications when properly assembled. - Material and finish: carbon steel (galvanized) provides strength and corrosion resistance adequate for mobile systems; fatigue resistance depends on steel grade and heat treatment (not specified). - Assembly: correct crimping sleeve matched to hose type and proper crimping procedure are critical. Improper crimping greatly reduces cycle life and burst/working pressure performance. - Pressure ratings and approvals: the provided description lacks explicit working pressure, burst pressure, fatigue or cyclic-life data and any standards/approvals (e.g., DIN, ISO, SAE). Without manufacturer pressure ratings and test certificates you cannot reliably claim suitability for specific highâpressure cycling regimes. - Application factors: hose type, system maximum pressure, pressure spike magnitude, cycle frequency, temperature, vibration, and contamination all affect endurance. Mobile systems often have high spikes and vibrationârequires components rated and tested for such conditions. Conclusion: DKOS 45Â° hydraulic end, type ZMW322, heavy series, carbon steel has design features compatible with highâpressure hydraulic use, but suitability for highâpressure cycling in mobile hydraulic systems can only be confirmed by verifying the manufacturerâs specified working/cyclic pressure ratings, fatigue/cycle test data and compatibility with the exact hose, crimp sleeve, and assembly process. If those data and proper assembly are provided and meet system requirements, it can be used; if not, obtain certified ratings or consult the manufacturer.

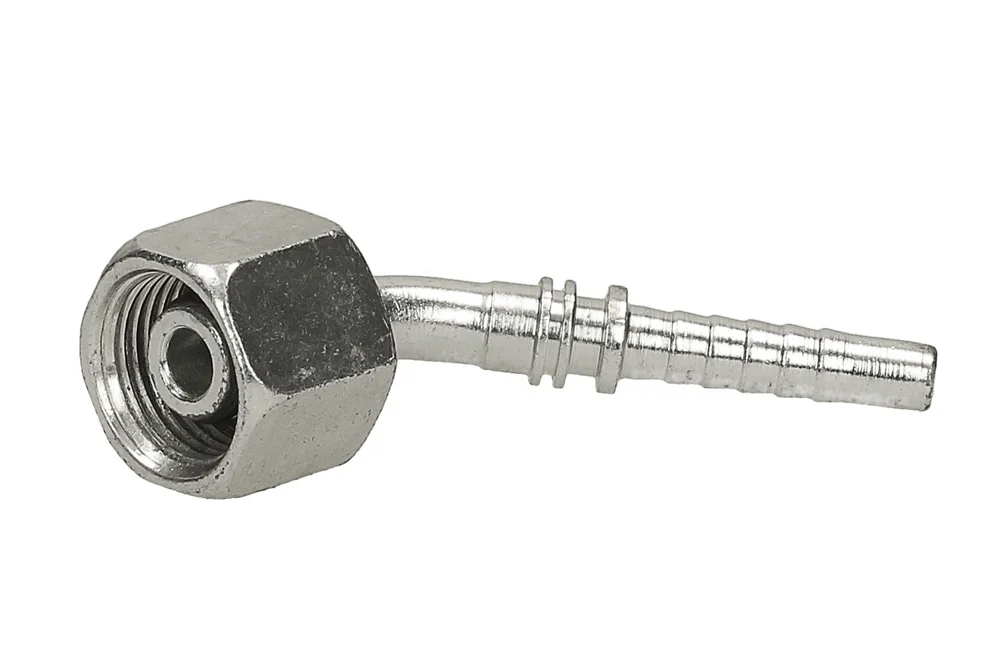

DKOS 45° hydraulic end, type ZMW322, heavy series, carbon steel

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

Standard hydraulic end (type Z – with a regular hydraulic “tail” for hose), with internal metric thread and nut, sealing with an O-ring on a 24° cone (DKOS), 45° angled, heavy series. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZMW322-14-03	End. 45° G thread M14x1.5, hose 3/16", 24°, o-ring, heavy	5	-	In stock	Enquiry
TI-ZMW322-14-04	End. 45° G thread M14x1.5, hose 1/4", 24°, o-ring, heavy	6	-	In stock	Enquiry
TI-ZMW322-16-03	End. 45° G-thread M16x1.5, hose 3/16", 24°, o-ring, heavy	5	-	In stock	Enquiry
TI-ZMW322-16-04	End. 45° GW M16x1.5, hose 1/4", 24°, o-ring, heavy	6	-	In stock	Enquiry
TI-ZMW322-18-04	End. 45° G1/2 M18x1.5, hose 1/4", 24°, o-ring, heavy	6	-	In stock	Enquiry
TI-ZMW322-18-05	End fitting 45° G1/2 M18x1.5, hose 5/16", 24°, o-ring, heavy	8	-	In stock	Enquiry
TI-ZMW322-18-06	End. 45° G-thread M18x1.5, hose 3/8", 24°, o-ring, heavy	10	-	In stock	Enquiry
TI-ZMW322-20-04	End. 45° G1/2 M20x1.5, hose 1/4", 24°, o-ring, heavy	6	-	In stock	Enquiry
TI-ZMW322-20-05	End fitting 45° G thread M20x1.5, hose 5/16", 24°, o-ring, heavy	8	-	In stock	Enquiry
TI-ZMW322-20-06	End fitting 45° G1/2 M20x1.5, hose 3/8", 24°, o-ring, heavy	10	-	In stock	Enquiry
TI-ZMW322-22-06	End fitting 45° G1/2 M22x1.5, hose 3/8", 24°, o-ring, heavy	10	-	In stock	Enquiry
TI-ZMW322-22-08	End. 45° G1/2" M22x1.5, hose 1/2", 24°, o-ring, heavy	12	-	In stock	Enquiry
TI-ZMW322-24-08	End. 45° G1 M24x1.5, hose 1/2", 24°, o-ring, heavy	12	-	In stock	Enquiry
TI-ZMW322-30-10	End. 45° G thread M30x2, hose 5/8", 24°, o-ring, heavy	16	-	In stock	Enquiry
TI-ZMW322-30-12	End. 45° G1/2 M30x2, hose 3/4", 24°, o-ring, heavy	20	-	In stock	Enquiry
TI-ZMW322-30-16	End. 45° G-thread M30x2, hose 1", 24°, o-ring, heavy	25	-	In stock	Enquiry
TI-ZMW322-36-12	End. 45° GW M36x2, hose 3/4", 24°, o-ring, heavy	20	-	In stock	Enquiry
TI-ZMW322-36-16	End. 45° GW M36x2, hose 1", 24°, o-ring, heavy	25	-	In stock	Enquiry
TI-ZMW322-42-16	End. 45° GW M42x2, hose 1", 24°, o-ring, heavy	25	-	In stock	Enquiry
TI-ZMW322-42-20	End fitting 45° G1/2 M42x2, hose 1.1/4", 24°, o-ring, heavy	32	-	In stock	Enquiry
TI-ZMW322-52-20	End fitting 45° G1/2" M52x2, hose 1.1/4", 24°, o-ring, heavy	32	-	In stock	Enquiry
TI-ZMW322-52-24	End fitting 45° GW M52x2, hose 1.1/2", 24°, o-ring, heavy	38	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Standard hydraulic end (type Z – with a regular hydraulic “tail” for hose), with internal metric thread and nut, sealing with an O-ring on a 24° cone (DKOS), 45° angled, heavy series. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Material: carbon steel, galvanized.
